Escea DF700 - Fuelbed Installation

E
39

Note: The log retainer bracket must be removed when installing the coals.

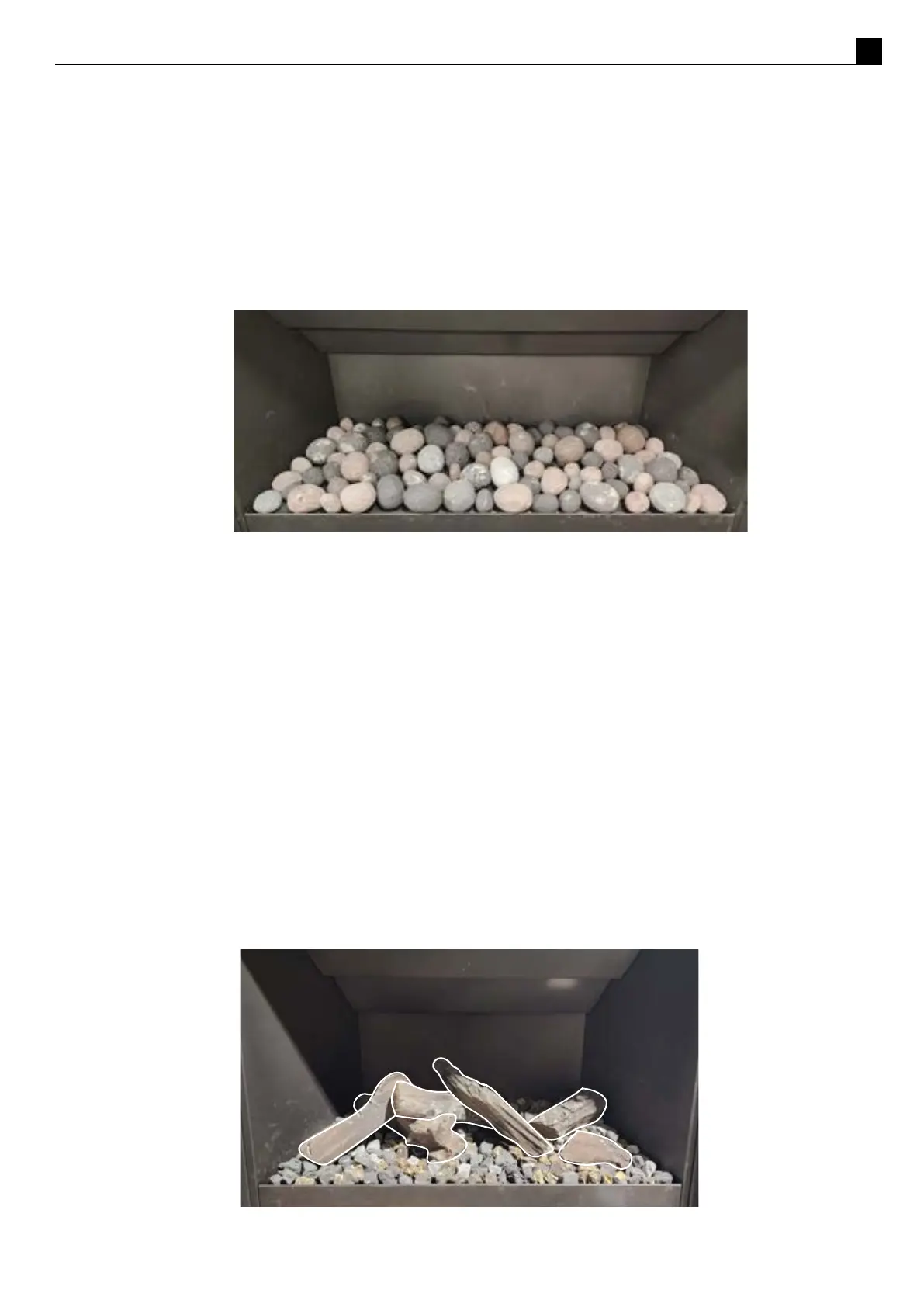

Place all the volcanic rocks in a single layer atop the burners, covering the enre area except the pilot and pilot
guard.
For more informaon regarding volcanic rock fuel bed installaon, please refer to 630681 Volcanic Rock Fuel
Bed Instrucons.

The following photos show the complete log sets for both DF700 and DF960 models.
For more informaon regarding tradional log placement, please refer to 630673 Tradional Log Fuel Bed
Instrucons. For informaon regarding splitwood elm log placement, please refer to 630680 Splitwood Elm Fuel
Bed Instrucons.
Please ensure that the embers are placed in a SINGLE EVEN LAYER aer the logs have been located correctly
(excess embers should NOT be added if one even layer has been achieved). The embers or akes must not cover
the pilot or pilot guard.
Note: Logs must be located correctly as stated/depicted in this secon or the warranty may void.

