7
Front Radar Receiver (Continued)
5 Find a suitable entry point into the vehicle’s
interior. Refer to the Installation Tips section.
6 Feed the harness into the vehicle’s interior
and to the Interface. Plug into the connector
labeled “Front Receiver.”
7 If entering through a drilled hole, pull the
grommet on the harness until the end sticks
through the hole. From inside the vehicle, pull
grommet through until it seals against the
outer surface.

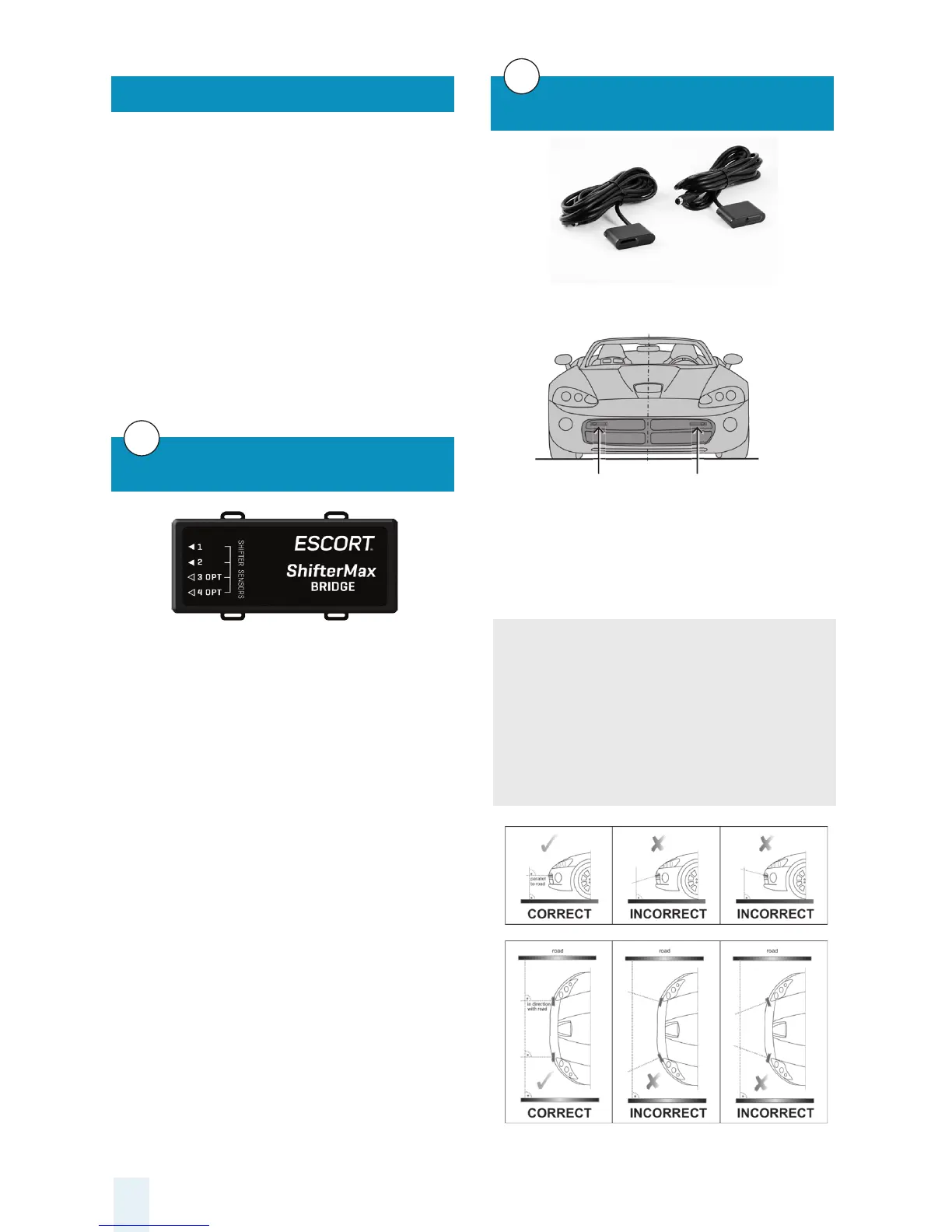

ShifterMax Bridge Box
1 The Bridge Box is weatherproof. To limit the
number of cables routed through the firewall,
we recommend installing the Bridge Box
inside of the engine compartment.
2 Slide the included heatshrink onto the
Bridge Box Interface cable then plug into the
cable extending from the Bridge Box labeled
“Interface” and route the cable toward the
interior of the vehicle. Shrink the heatshrink
onto the inline connector and secure the cable
with zip-ties. Although waterproof, it is best to
locate the inline connector in a dry area
protected from moving parts, road debris, and
hot surfaces such as the radiator and radiator
hoses.
C
Front Laser ShifterMax
Sensors
Positioning Sensors
Install each sensor halfway between the side
and the center of the vehicle.
For optimal performance sensors need to be
completely unobstructed, not behind a grille,
level and facing straight forward (rearward if
installing optional rear sensors*). Make sure
that each sensor is parallel with the road
(using supplied bubble level).
Note:
Vehicle must be positioned on a flat surface
in order to position sensors parallel with the
road. Make sure that sensors have an
unobstructed “view” of the road so the unit
can function properly. Do not install sensors
behind a solid surface, which would block
laser transmission/reception.
D
To Next Page
