ESI ESRTP4+ - Programmable Room Thermostat Basics; Programmable Thermostat Explanation

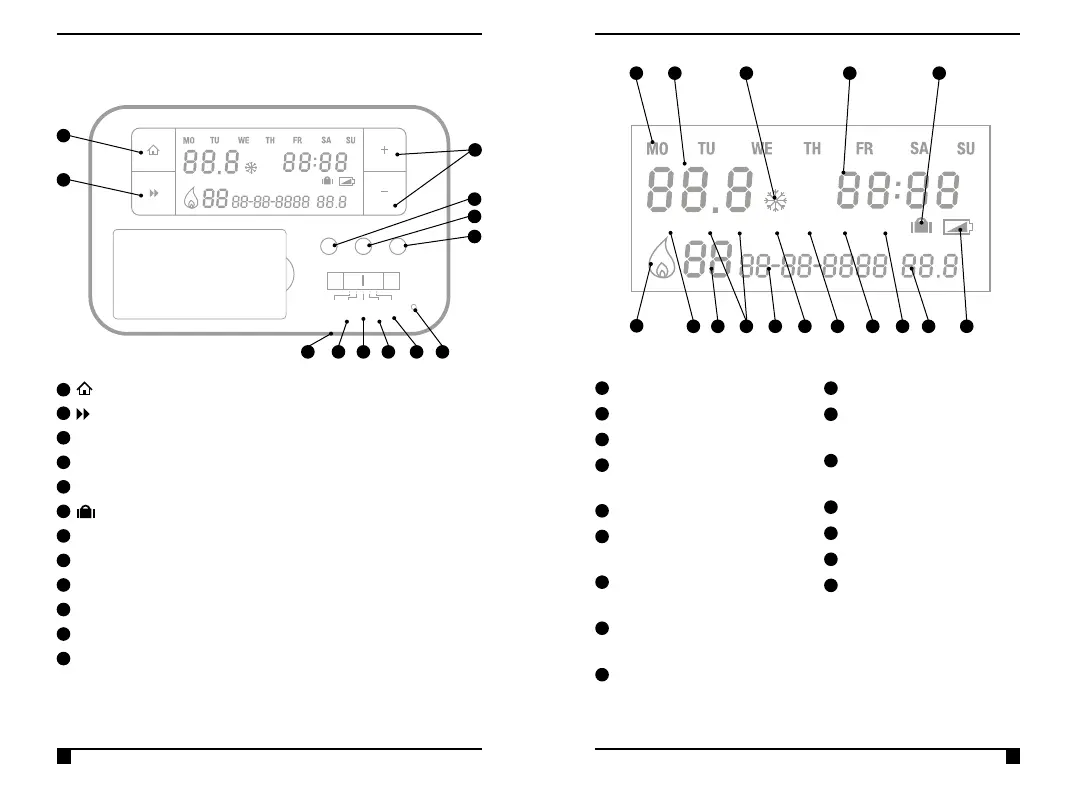

2. Quick Operating Guide
1
Home (takes you back to home screen)
2
Next (moves you to next option within a function)
3
Temporary Override/Settings Adjustment
4
Accepts/Confirms selection in functions/All Day Mode
5
Copy (COPY)
6
Holiday Mode
7
Sets Time and Date
8
Selects and adjusts Programme (PROG)
9
Places Thermostat into Frost Protection Mode (OFF)
10
Places Thermostat into Manual Mode (MAN)
11
Runs Programme (AUTO)
12
Reset
13
Day Display
14
Room Temperature
15
Frost Protection Mode
16
Time Display (12 hour
AM/PM or 24 hour)
17
Holiday Mode symbol
18
Flame symbol when
system calling for heat
19
Operation Mode symbol
& Auto Mode symbol
20
Programme Events Display
& All Day symbol
21
Delayed Start (DS) /
Optimum Start (OS) is
active
22
Date (DD-MM-YYYY)
23
Annual Service is due
(SERV)
24
Optimum Stop (OST) is
active
25
TPI is active
26
Manual Mode symbol
27
User Set Temperature
28
Low Battery Warning
TIME/DATE PROG OFF MAN AUTO
A C H
AM
PM
SET
AUTO DS OS SER OST TPI MAN
°C
AM
PM
SET
AUTO DS OS SER OST TPI MAN
°C
TIME/DATE PROG OFF MAN AUTO
A C H
AM
PM
SET
AUTO DS OS SER OST TPI MAN
°C
AM
PM
SET
AUTO DS OS SER OST TPI MAN
°C
1
2
98 107 11 12
13 14 15 16 17
18
19 20 22 23 24 25 26 27 2821
3
4
5
6
10 11
