Kongsberg X-series
Parameter Description
Lag Setting The knife lag depends upon the actual knife blade adapter and knife blade.
Tool Rotation Adjust tool angle tangential to moving direction.
Center Offset Adjust tool sideways until centered.
Tool Offset Adjust offset relative to Laser Pointer.
For more information about how to run the adjustment wizards, see Tool Configuration.

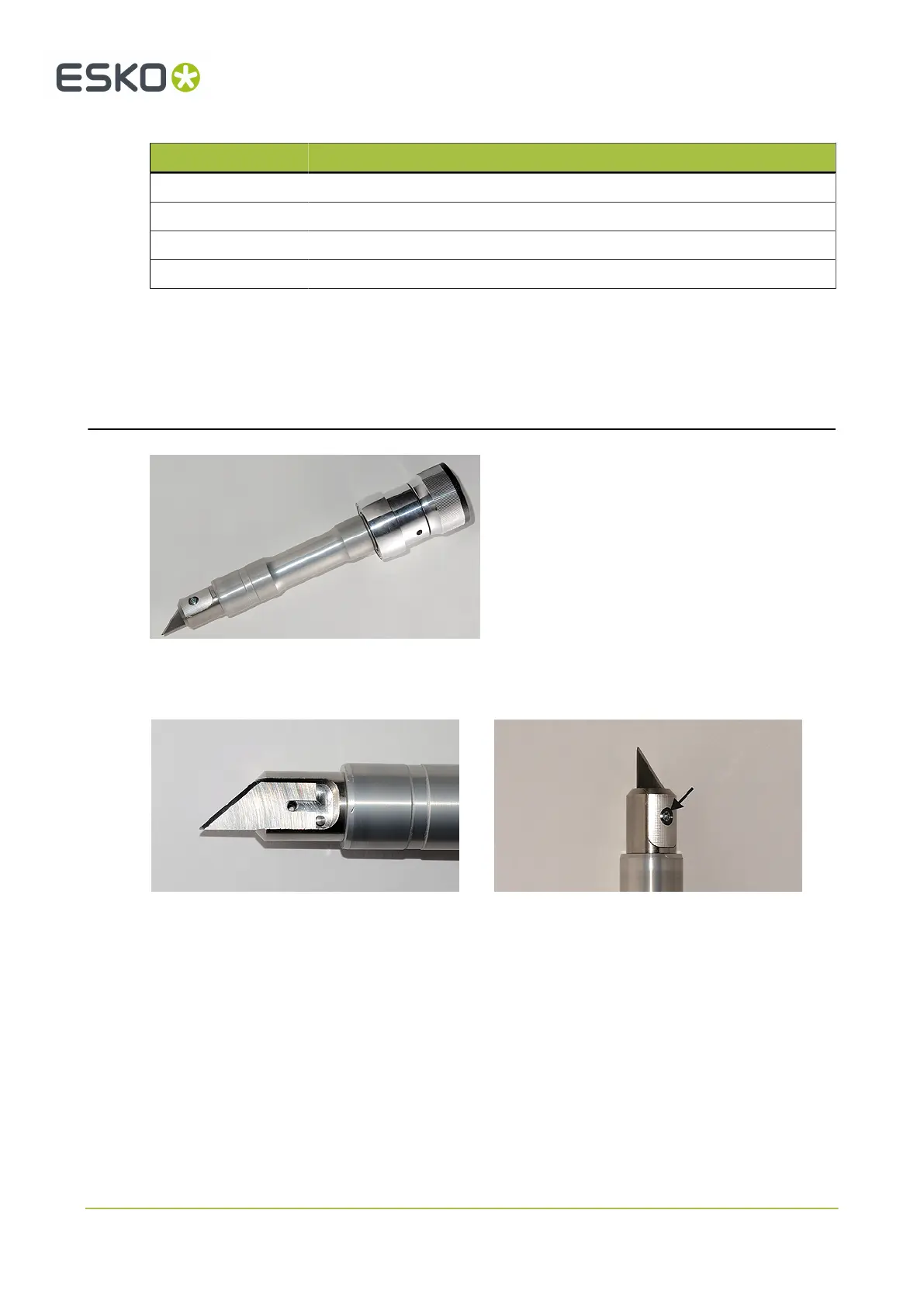

13.14. RBI 90-16 (Rigid Board Insert)
Insert / remove Knife Blade
Ensure the blade is correctly aligned. Use Allen Key, 3 mm, to fix / loosen the Knife
Blade.
After a blade change, the tool depth should be checked again.
Tool Adjustment
Use the standard adjustment wizards when adjusting the knife.
We recommend using a sheet of corrugated material, 5-6 mm / 0.2 inch, when executing the wizards.
