Celebrating over 30 years of excellence in manufacturing ultrasonic cleaning
equipment, electropolishing equipment and associated chemistries
ESMA, Inc.
P. O. BOX 734 * SOUTH HOLLAND, IL 60473 * (800)-276-2466 * FAX (708)331-8919
** IMPORTANT ** The city sewer line S10 MUST BE VENTED. If you are
plumbing to an overhead drain, you must plumb to a basin and sump pump so that
the system drain pump does not get air-locked during the program.
FOR ASSISTANCE CALL: 800-276-2466.
Solenoid 1 is to be
connected to your
pressurized in-house DI
water supply.
FUTURE CONNECTION
• Connect hose from
Solenoid 9 on HST 4, the
FUTURE Acid Storage
Tank
• Connect hose from the
S7 on the Acid Storage
tank to this fitting.
• Connect hose from the
S5 on the Rinse Storage
tank to this fitting.
• Connect hose from the
S3 on the Clean storage
tank to this fitting
Connect hose from Solenoid
“S10” to a vented drain if
needed.
• FUTURE CONNECTION
Connect hose from Solenoid 8 to
the filter chamber on HST 4, the
FUTURE Acid Storage Tank.
• Connect Solenoid “S6” to the
filter chamber on HST 3, the
Acid Storage Tank.
• Connect hose from Solenoid 4 to
the filter chamber on HST 2, the
Rinse Storage Tank.
• Connect hose from Solenoid 2 to
the filter chamber on HST 1, the
Clean Storage Tank

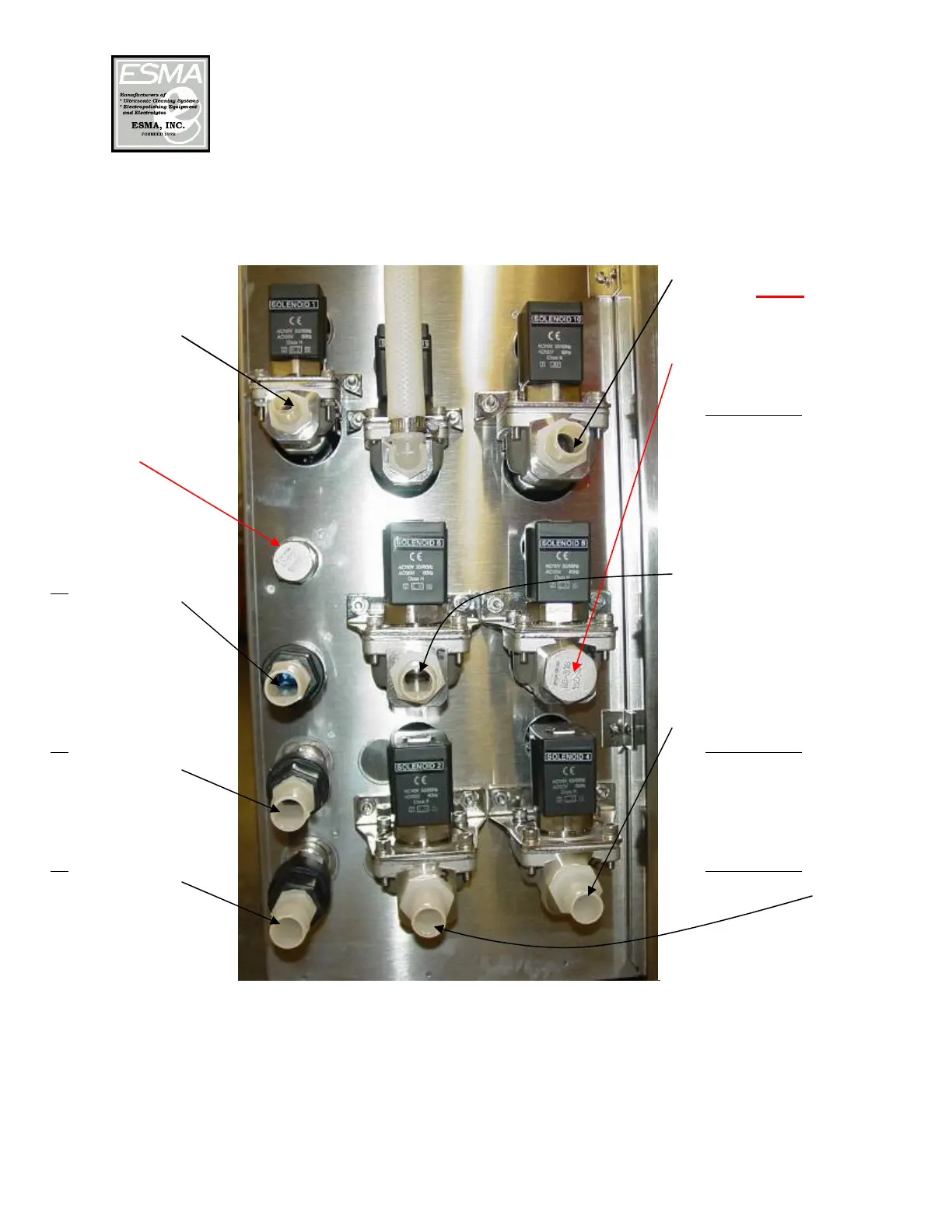

Solenoid Manifold
Rear of E992 Unit
To Next Page
