Connections
V
Precautions when making connections
0 Complete all other connections before connecting power plugs to power outlets.
0 Read the owner’s manuals of all devices that will be connected, and follow their instructions.
0 Do not bundle connecting cables with power cords. Doing so could cause noise.

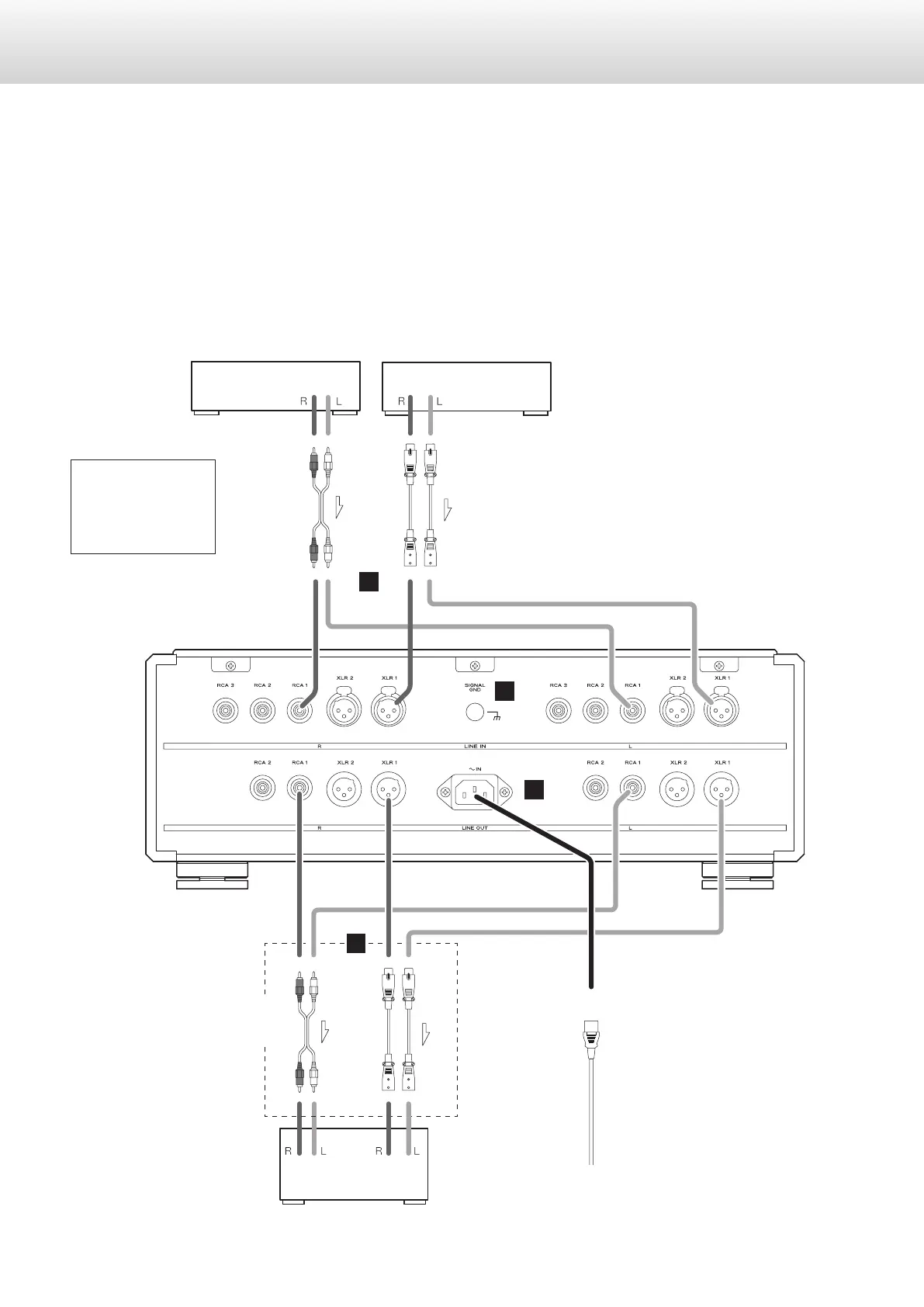

This illustration is of the C-02.
AUDIO IN
A
D
B
C
Connect a set of
cables of one type
or the other.
Power amplier, etc.
XLR cables
Included power cord
Wall socket
RCA audio cable
XLR cables
RCA audio cable
Super Audio CD player, etc.
Super Audio CD player,
tuner, etc.
AUDIO OUT
AUDIO OUT
XLR pin assignment
1. COMMON
2. HOT (+)
3. COLD (−)
