Esoteric K-07 - Making Audio Connections; Connection Procedures and Safety

10
Q Precautions when making connections
o Make all connection before plugging in the power cord.
o Carefully read the operation manuals of the other equipment and follow their instructions when connecting them.

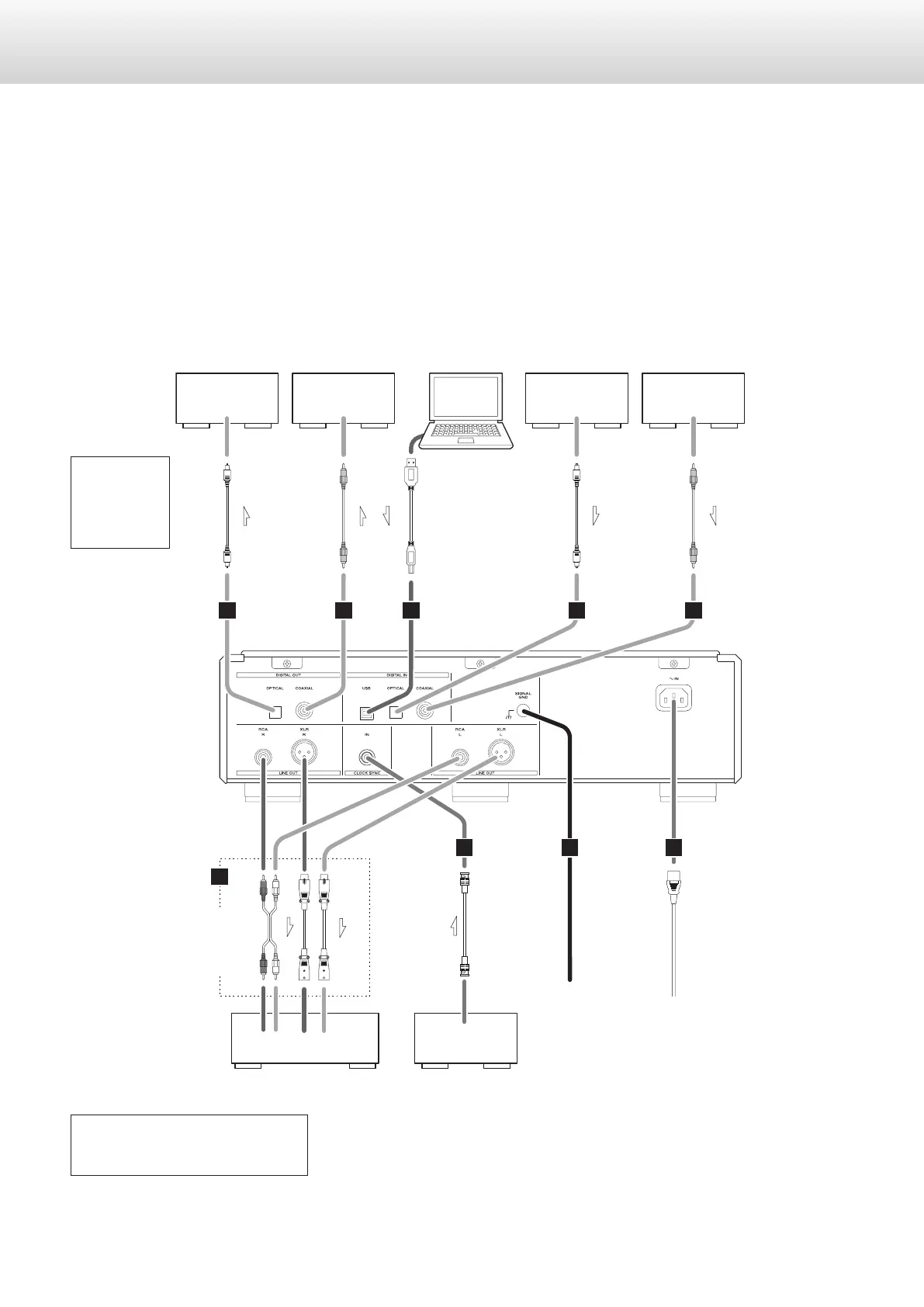

DIGITAL OUT
(OPTICAL)
DIGITAL OUT
(COAXIAL)
E
F
A A
G
C CB
D
Amplier or digital
recording device
(CD recorder, MD
deck, etc.)
Amplier or digital
recording device
(CD recorder, MD
deck, etc.)
DIGITAL IN
(COAXIAL)
DIGITAL IN
(OPTICAL)
Optical digital cable RCA coaxial digital cable RCA coaxial digital cable USB cable Optical digital cable
Digital audio
output deviceComputer
Digital audio
output device
Included power cord
Wall socket
Stereo amplier
Audio input
(LINE IN, etc.)
LLRR
Device that outputs clock
(G-01, G-02, etc.)
CLOCK SYNC OUT
RCA audio

cable
XLR cable
BNC coaxial cable
Connect a
set of
cables of
one type
or the other.
Digital output
can be turned
on/off
(see p. 27).
The polarity of the XLR connectors can be
set so that either 2 or 3 is HOT (see p. 27).
Making connections
