Making connections
V
Precautions when making connections
o After completing all other connections, plug the power plug into a power outlet.
o Read the owner’s manuals of all devices that will be connected, and follow their instructions.
RL
RL
AB CD
IF G
A
H
E

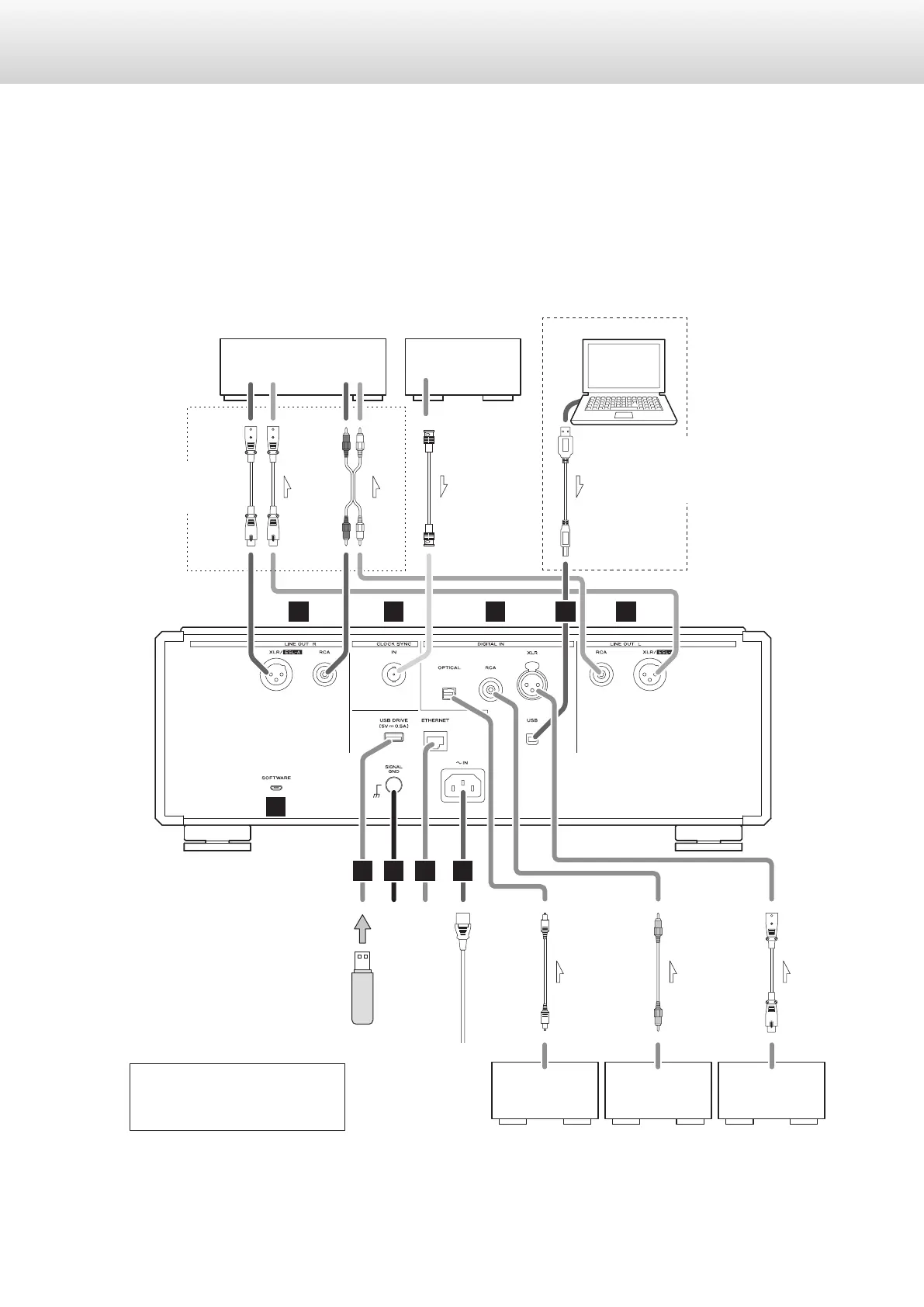

RCA audio cables
XLR cables
USB cable
Connect a set of
cables of one type
or the other.
Included power cord
RCA coaxial cable
BNC coaxial cable
Stereo amplifier
Computer
Equipment with
digital audio
output
Equipment with
digital audio
output
Equipment with
digital audio
output
Device that outputs
clock signal
(G-01X, G-02X etc.)
DIGITAL OUT
(COAXIAL)
DIGITAL OUT
(XLR)
DIGITAL OUT
(OPTICAL)
CLOCK OUT
Audio input
(LINE IN, etc.)
Optical digital cable
The polarity of the XLR connectors
can be set so that either 2 or 3 is
HOT (page17).
USB flash drive
Make this connection
when using this unit
as a USB DAC.
XLR digital cable
c
wall
socket
