ESP400-10-200L and 300L

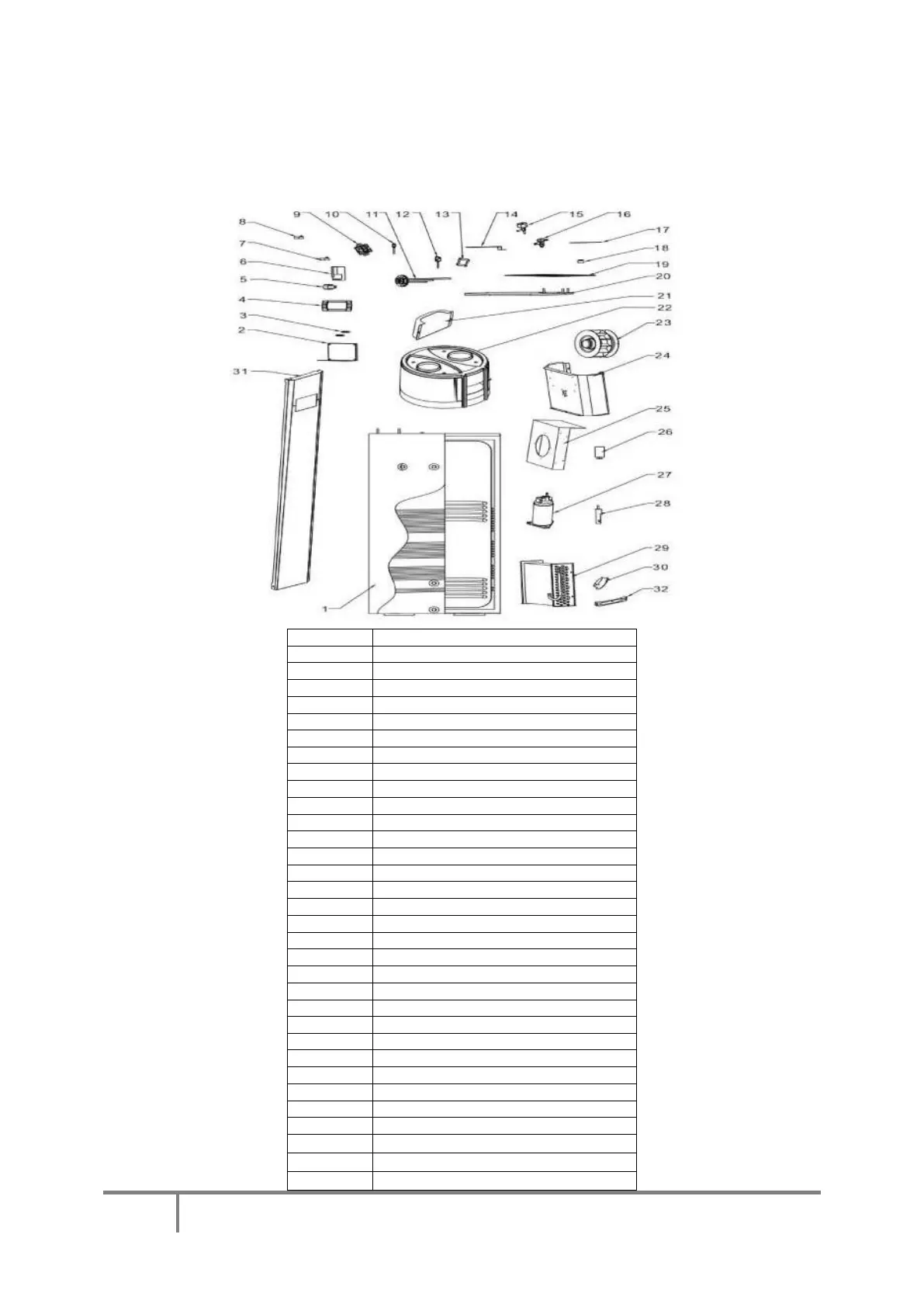

13.1 Exploded diagram
The following diagram shows all of the parts of the Ecocent. The numbers correspond to the table below that
names all parts in case spares are ever required:
Number
Components Name
1
Water Tank
2
Electronic Box Supporting Plate
3
Terminal Base
4
Wire Controller
5
Transformer
6
Main Controller
7
3uF Capacitor for Fan Motor
8
2uF Capacitor for Fan Motor
9
Protector Cover
10
Low Pressure Needle Valve (45mm)
11
Electric Heater 1.5kW
12
High Pressure Switch
13
Fixed Plate
14
Pull Rod
15
2-way valve
16
Thermostatic Expansion Valve
17
Strengthening Rod
18
Rubber Feet
19
Grille
20
Bottom Plate
21
Electronic Box Cover
22
Top Cover
23
Fan Motor
24
Protection Board
25
Fixed Plate
26
Compressor Capacitor
27
Compressor
28
Compressor Pull Rod
29
Evaporator
30
Electric Heater Cover
31
Decorated Front Plate
32
Connection Plate
