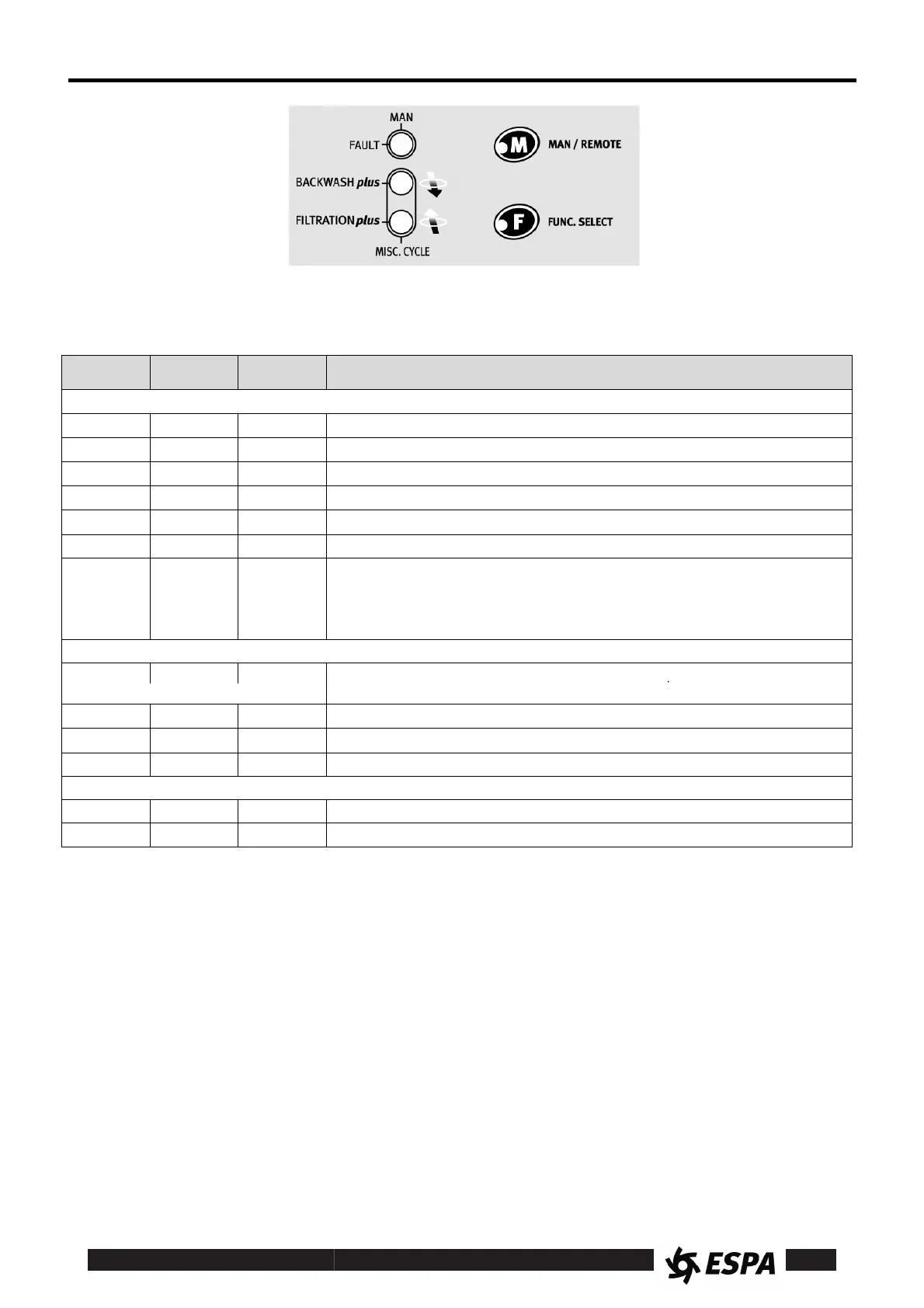

10. LED INDICATORS
The possible LED combinations and their meanings are:
0 = LED OFF
1 = LED ON
2 = LED flashing slowly
3 = LED flashing quickly
MAN/
FAULT
BACKWASH
Plus
PlusPlus
Plus
FILTRATION
Plus
PlusPlus
Plus
0 0 1
0 1 0
0 1 1
1 0 1
1 1 0
1 1 1
2 0 0
3 3 3
(...together...)
3 0 1
3 1 0
3 1 1
2 1 2
2 1 1
12
The possible LED combinations and their meanings are:
Equipment status
Functions
Filtration Plus function in Remote mode.
Backwash Plus function in Remote mode.
Mixed Cycle function in Remote m
ode. Motor at 100%.
Filtration Plus function in Manual mode.
Backwash Plus function in Manual mode.
Mixed Cycle function in Manual mode.
“Standby" mode. The equipment has power, motor stopped.
a) Valve in intermediate positions
or position 6 in Remote mode.
b) Stop function in Manual mode.
c) Timer OFF position.
Configuration
Initial configuration: standing by for link with C
ontrolSystem
Filtration Plus speed setting.
Backwash Plus speed setting.
Mixed Cycle speed setting.
Errors
No water error. Start-up retry attempted.
No water error. Full shut-down.
