Espa SPEEDRIVE - Multiple Pump Operation; Connection Failure and Memory Errors; Booster Sets with On-Off Auxiliaries; Booster Sets with Inverter Regulated Auxiliaries

- 16 -
LACK OF WATER / PIPE
LACK OF WATER / PIPE LACK OF WATER / PIPE
LACK OF WATER / PIPE BREAKAGE
BREAKAGEBREAKAGE
BREAKAGE
If the unit works more than 60 seconds at 50Hz, but the pressure does not exceed
0.3 bar, is declared "error for lack of water."
the system will be set to a permanent fault.
Press OK to reset.
ELECTRONIC CIRCUIT
ELECTRONIC CIRCUITELECTRONIC CIRCUIT
ELECTRONIC CIRCUIT FAILURE
FAILUREFAILURE
FAILURE
The electronic circuit is breakdown.
The Speedrive stops working. It can only be repaired by official technical service.
MEMORY MODULE FAILURE
MEMORY MODULE FAILUREMEMORY MODULE FAILURE
MEMORY MODULE FAILURE
EEPROM memory module has had a serious malfunction and has stopped working.
The Speedrive enters standby mode, with a reference pressure of 2 bar. It can only
be repaired by official technical service.

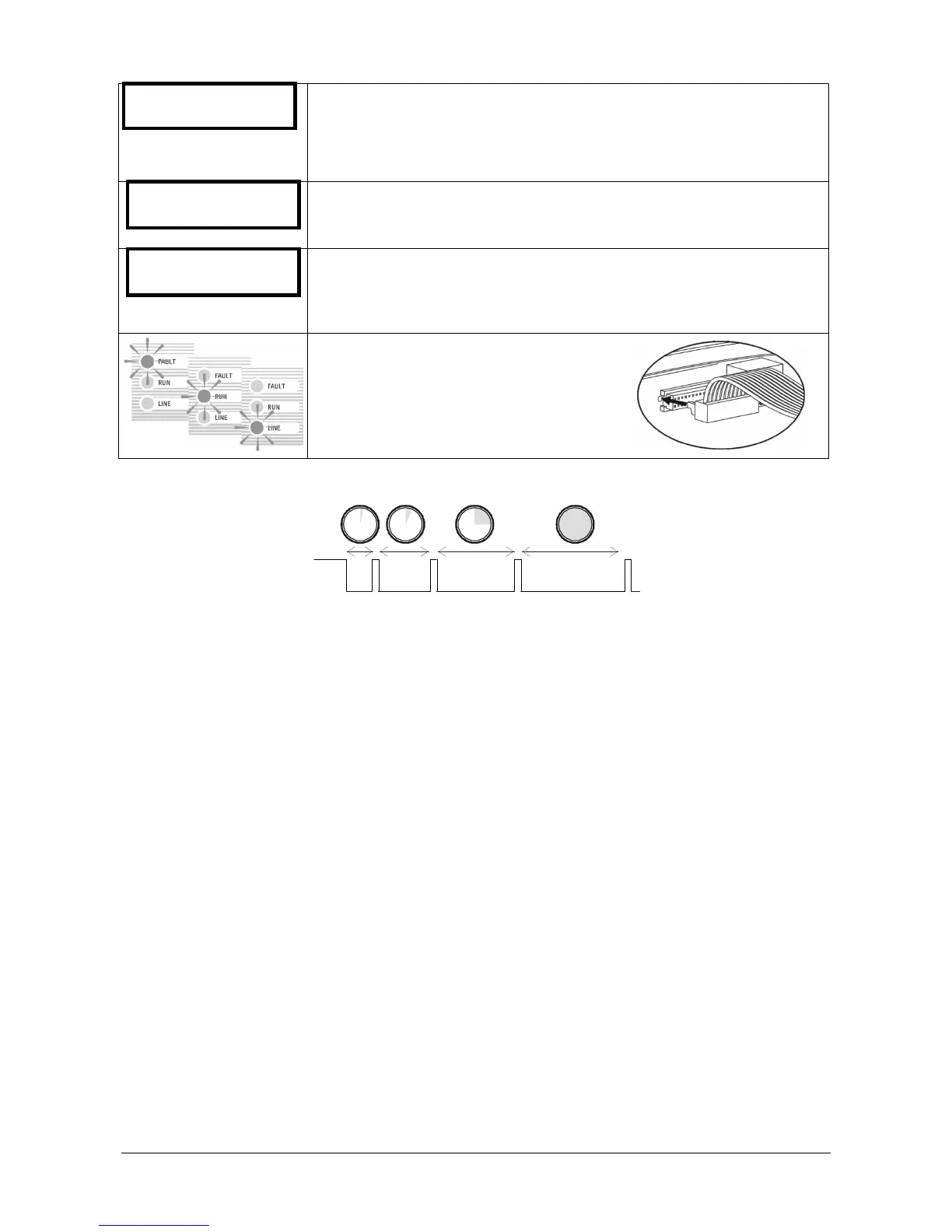

DISPLAY CONNECTION ERROR
DISPLAY CONNECTION ERRORDISPLAY CONNECTION ERROR
DISPLAY CONNECTION ERROR
3 LED sequential lighting indicates an error in
connection the display signal cable to the
motherboard.
Reverse connector. Take care to position
*= Illustration of the sequence and times of the 4 attempts, if not none of them succeed:
1’
5’
15’
60’
ON
OFF
1º
3º
2º
4º
7) MULTIPLE OPERATION.
7) MULTIPLE OPERATION.7) MULTIPLE OPERATION.
7) MULTIPLE OPERATION.
The Speedrive inverter can control more up to 4 pumps, equipped with various Espa solutions, for a multiple
pump booster set control.
a) Booster set with "On-Off" auxiliary pumps , equipped with "ELV" box .
b) Booster set with inverter regulated auxiliary pumps, equipped with "Speedrive" box in slave mode.
Communication is through communication port RS-485.
7.1) Booster set with "On
7.1) Booster set with "On7.1) Booster set with "On
7.1) Booster set with "On-
--
-Off" auxiliary pumps
Off" auxiliary pumpsOff" auxiliary pumps
Off" auxiliary pumps
Sequence of Operation:
- Faced with a demand for water, the pump A starts fast enough to meet the need for installation.
- If the need is beyond the capacity of the pump A, pump B is activated at 100% capacity. The pump A reduce
speed to meet demand (exchange rate set according to menu 10.1)
- If the need exceeds the capacity of the pumps A + B, the pump C is activated. The pump A reduce speed to
meet demand.
- And successively...
The operation mode is alternated. Each activation of the booster set, the order of start pumps is random. This will
equal the operation hours.
Installation and connections.
Installation and connections.Installation and connections.
Installation and connections.
The Speedrive installation and electrical wiring is done as described in this manual.
For installation and connections of the modules "ELV", see its installation manual.
The connection of the pressure transducer must be made solely on the drive Speedrive.
A 2-wire twisted and shielded cable 0.5mm2 section must make the communication between devices.
LACK OF WATER
ERROR
INTERNAL FAILURE
ERROR
EEPROM FILURE
ERROR
