4. INSTALLATION
Install the stove in accordance with the requirements given below. If a
concealed oil connection is to be made, prepare pipe work prior to installing
the stove. Fit the four adjustable feet provided to each of the cast iron legs.
a. INSTALLATION OF THE STOVE
The stove can be installed in any adequate area suitable for solid fuel fires
and stoves.

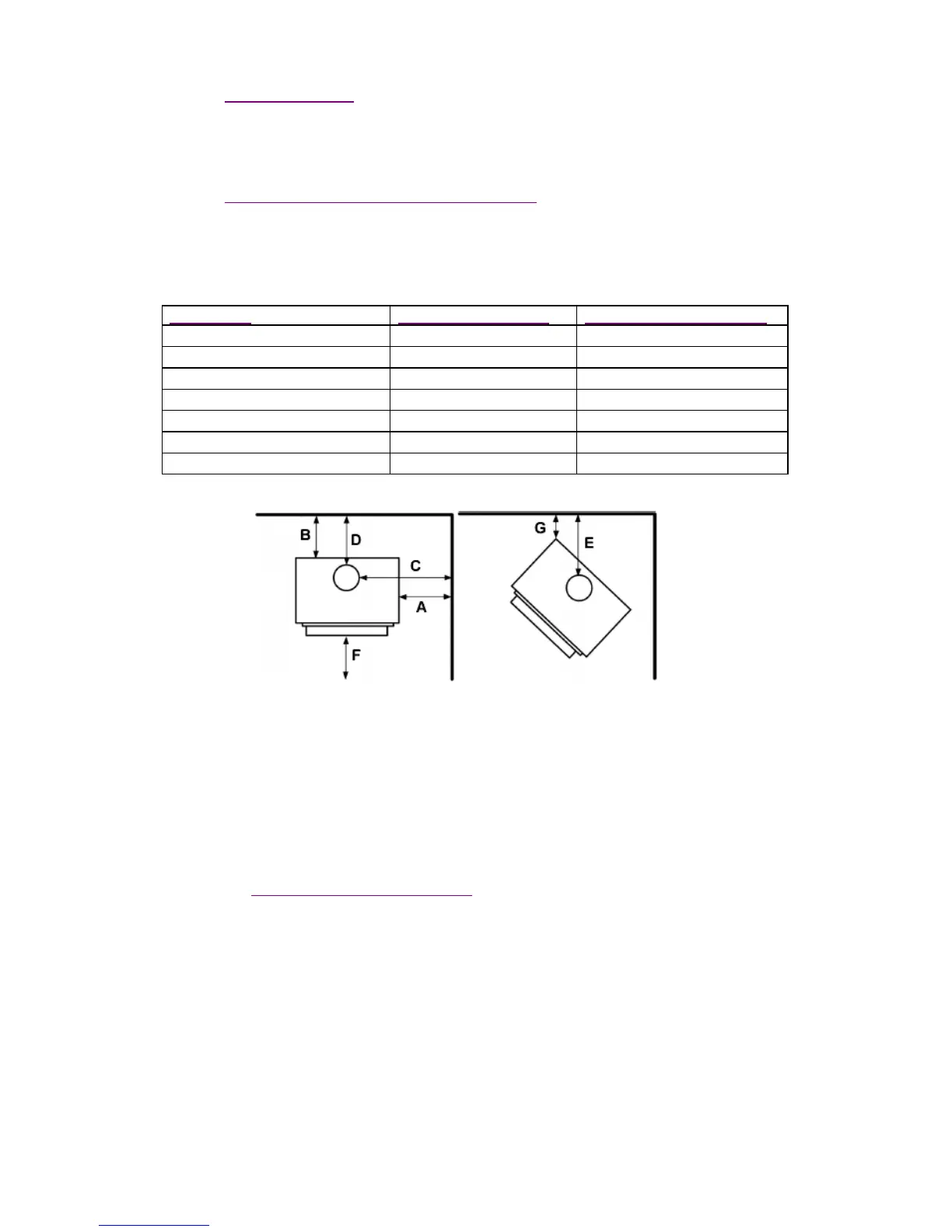

Clearances
Dimensions in mm
Clearances Combustible material Non-combustible Material
A- Sidewall to top casting 406 50
B- Backwall to top casting 267 130
C- Sidewall to flue pipe 635 279
D- Backwall to flue pipe 279 155
E- Corner to flue pipe 419 240
F- Front 914 0
G- Corner to top casting 229 50
Hearth
The stove must stand on a fireproof hearth made of non-combustible material
and be of sufficient size to accommodate the stove (Fig:1).
Fire Surround
It is recommended that a fire surround should not be closer than 610mm from
the stove if manufactured from combustible material.
b. CHIMNEY / INSTALLATION
The stove is supplied with a collar for 5” internal diameter flue pipe. 4”
diameter flue pipe may be used with a suitable adaptor.
The stove should be connected to a chimney/flue of not less than 4” internal
diameter. A continuous stainless steel liner (min 4” diameter), suitable for oil,
should be used to line an existing chimney. The minimum flue height should
be 15ft. In all cases the chimney should conform to relevant Building
Regulations. Alternatively a clay liner to BS1181 may be used.
1) The fabric of the chimney must be sound and free from
obstructions. Any air leaks and bad joints must be rectified.
2) The chimney should be terminated in such a manner to prevent
ingress of rain.
3) The chimney must serve the stove alone and not be shared with
any other appliance.
