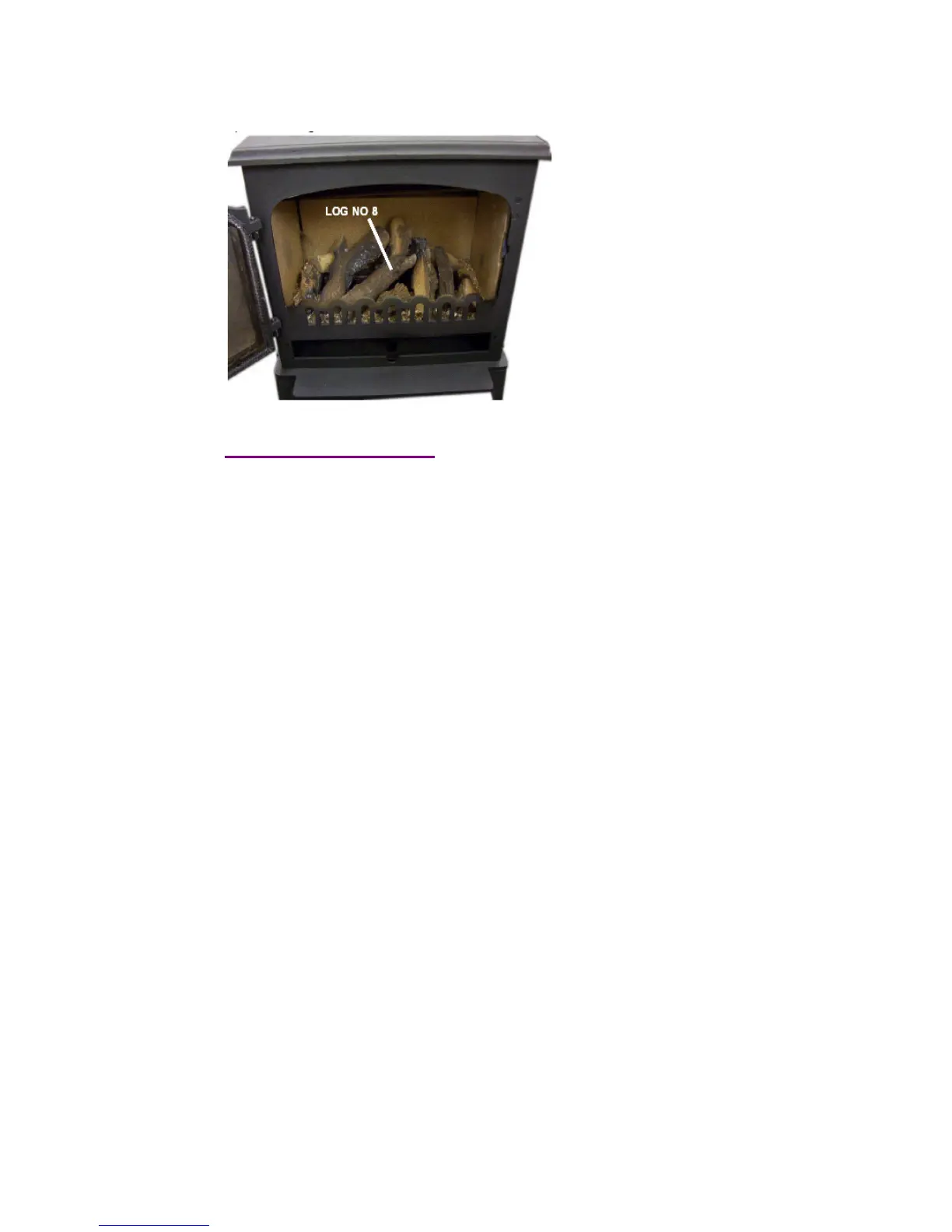

Position log No: 8 as shown. Close the stove door.
6. INSTALLING THE STOVE
The installation should be inspected to ensure that the work is complete and
the workmanship satisfactory. No stove should be installed if any part of the
installation does not comply with relevant standards and regulations.
It is recommended that the following procedure is carried out to ensure that
the oil is free of contaminates (e.g. water).
Ensure that the fire valve is closed. Temporarily uncouple the inlet pipe at the
oil valve on the stove, open the fire valve and collect approximately one litre of
oil into a suitable receptacle. If dirt or water is present in this sample,
additional oil should be run off until it is free of contaminates.
Close the fire valve, reconnect the inlet pipe and re-open the fire valve.
Inspect the pipe work and ensure there are no leaks.
Level the stove using the four adjustable feet provided. Check that the Toby
oil valve is level. Connect a suitable draught gauge to the flue.
Push the flue baffle handle fully forwards towards the wall. Check that the
control knob will only go to setting No.l. If another setting, i.e. No.2 is
possible, adjust the CAM so that only setting No.1 is possible (Fig.2).
Flue Stabiliser (Fig: 2)
Check the setting of the stabiliser. This should be adjusted if necessary to
start to open at a flue draught of approximately 0.06”w.c.
