LOCATING YOUR COOLER
This new design Essick cooler may be installed as a bot-
tom or side air outlet cooler. The cooler must be securely
fastened to a frame or pad mount. A roof kit is available
from Essick.
A duct must be attached to the cooler outlet. The duct
must be the same size as the cooler outlet. Sudden duct
size changes will decrease the output of your cooler.
The cooler installation must comply with local codes. If
you are not fully qualified to install a cooler, get profes-
sional help.

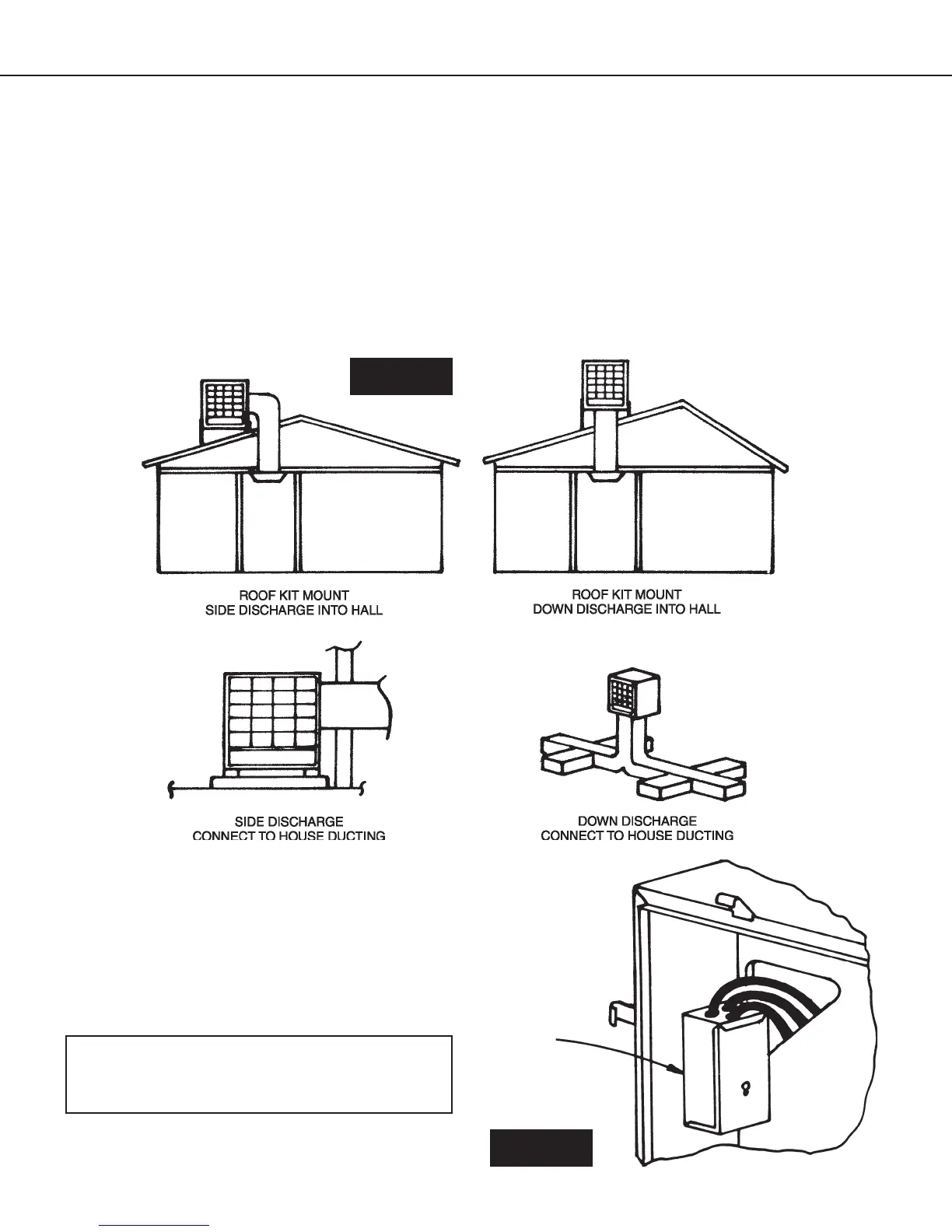

Figure 1 shows some locations for your cooler. Be sure
the intake louvers are clear of obstructions and are
accessible for removal. Do not locate the cooler near vent
pipes, chimneys, or exhausts where odors or fumes
may be drawn into the house. The two drain holes on the
cooler bottom must be clear to allow overflow or drain
access.
WIRING BOX
The wiring box is inside the cooler cabinet. The electrical
supply must be connected to the cooler power leads
inside the box after the cooler is installed. The wiring box
is factory installed for coolers used in the down air outlet
position.
IF YOU INSTALL THE COOLER IN THE SIDE AIR
OUTLET POSITION THE WIRING BOX MUST BE
MOVED. SEE PAGE 5.
FIGURE 1
FIGURE 2
INSTALLATION
