5
1. Remove both louvers and set them where they will
not fall. See pg. 11.
2. Remove four louver clips on side opposite motor.
3. Remove a reservoir by pushing the water crossover
tube from the grommet and lifting out the reservoir.
4. Remove the second reservoir as above.
5. Remove the screw that holds the wiring box.
6. Remove
1
/
8
inch diameter and
7
/
8
inch diameter
knockouts.
7. Remove two plastic plugs.
8. Loosen screw holding pad motor receptacle bracket,
slide bracket up and detach from cabinet flange.
Repeat on other side.
9. Turn cooler to side outlet position.

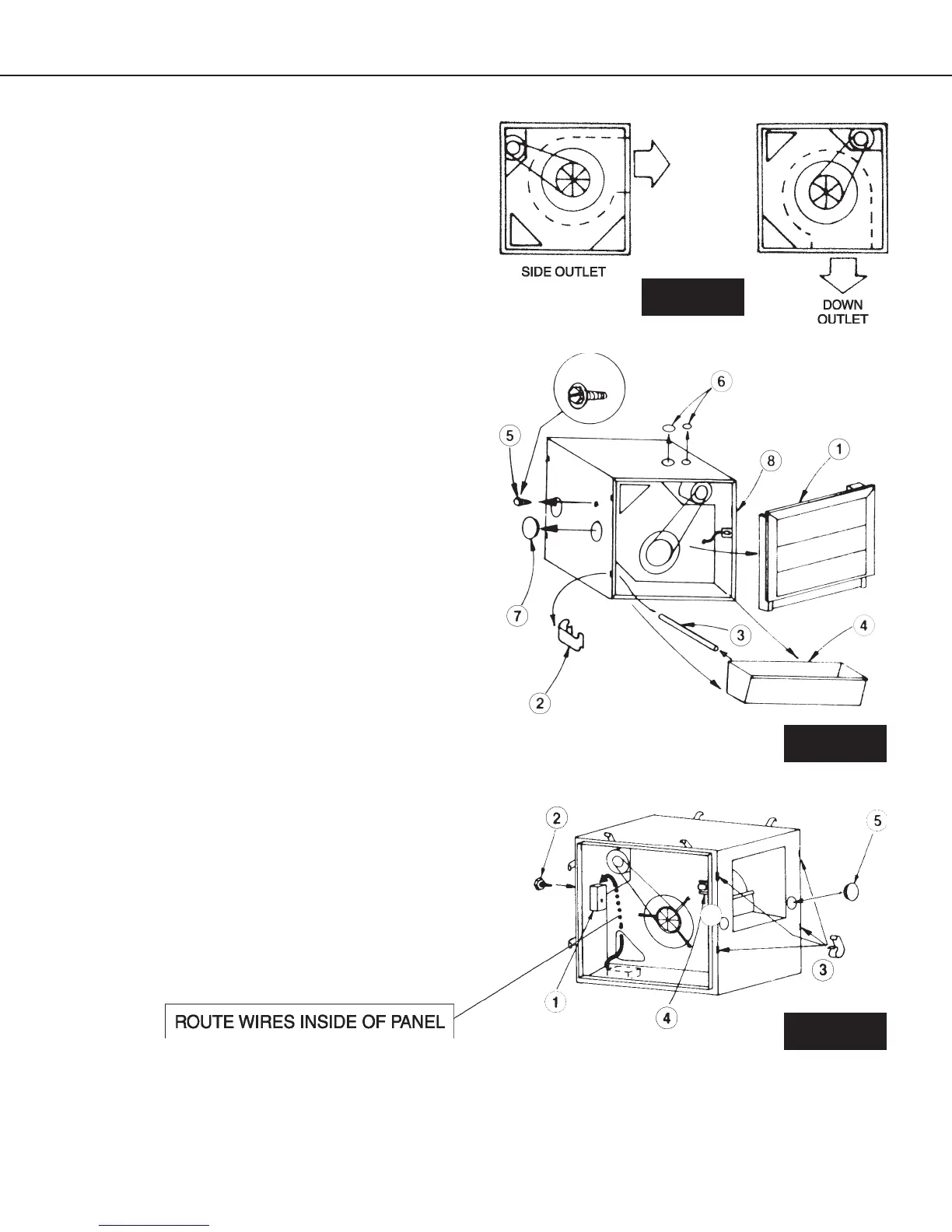

CONVERTING COOLER TO SIDE AIR OUTLET (Fig. 4)
REASSEMBLY AS SIDE
OUTLET COOLER (Fig. 5)
1. Move wiring box to new location.
2. Secure wiring box with screw removed at disas-
sembly.
3. Install four louver clips removed at disassembly.
4. Install two receptacle brackets removed at disas-
sembly.
5. Install two plastic plugs removed at disassembly.
6. Assemble reservoirs, crossover tube and louvers
after
the cooler is installed in location. Use soap or
detergent to lubricate crossover tube before insert-
ing into grommet. DO NOT USE OIL.
FIGURE 4
FIGURE 3
FIGURE 5
INSTALLATION
