6
INSTALLATION

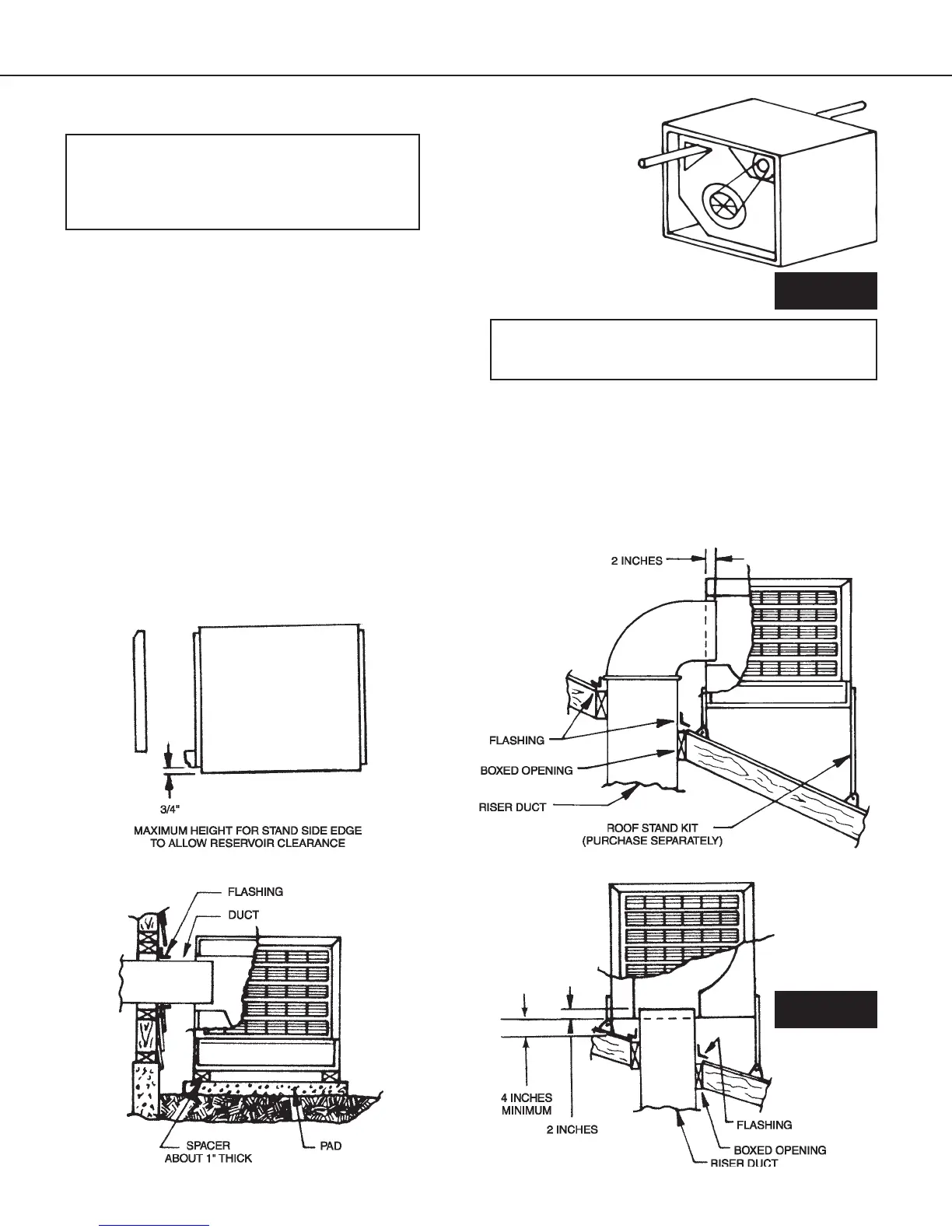

Lift at cabinet corners.
The cooler may be lifted
by putting a bar or strap
through the panel hole
and lifting by means of
the bar or strap.
LIFTING COOLER
CAUTION: DO NOT LIFT ON THE LOUVERS.
REMOVE THE LOUVERS BEFORE LIFTING.
DO NOT LIFT ON THE CENTER OF THE
CABINET FLANGES.
MOUNTING COOLER
1. Prepare duct to fit model used. See outlet size speci-
fications on page 3.
2. Cut opening in roof or wall and box in opening.
3. Install duct and secure to boxed-in opening frame.
Allow two inches to fit into cooler outlet. Allow duct
length for cooler bottom to be 4 inches above roof
at closest point. See figure 7.
4. Install flashing on roof or wall to prevent water
entry.
5. Measure cooler and lay out mount location.
NOTE: THE BOTTOM EDGE NEAREST THE
OUTLET MUST FACE UP THE ROOF.
6. Mount cooler on stand or pad. Cooler must be level
front to back and left to right. Roof stand kits are
available.
7. Be sure to securely fasten four corners of cooler to
stand or pad.
8. Caulk duct to the cooler. Caulk the flashing.
FIGURE 7
FIGURE 6
