HOW YOUR HUMIDIFIER WORKS
ASSEMBLY, CONTROLS & OPERATION
1. Remove the packaging from the top of the humidifier.
2. Lift off the water bottle cover (left-hand side). Remove the water bottle, lift
off the chassis/power pack and then remove the humidifier cabinet from
the carton.
3. Remove the evaporative wick, float assembly (black rod with white float),
and all of the remaining packaging materials from the cabinet. Check to
see that you have all of the following items removed from the boxes
accessory kit and cabinet before discarding the packaging:
CASTERS
4. Turn the emptied cabinet upside down. Insert each caster stem into the
four caster holes on each corner of the humidifier bottom. The casters
should fit snugly and be inserted until the stem shoulder reaches the
cabinet surface.
5. Turn the cabinet right side up.
EVAPORATIVE WICK
6. When placing the wick back into the humidifier, the rod and float assembly
must also be reattached. Insert the top of the float rod through the hole on
the extended wick retainer (attached to the top of the wick frame)

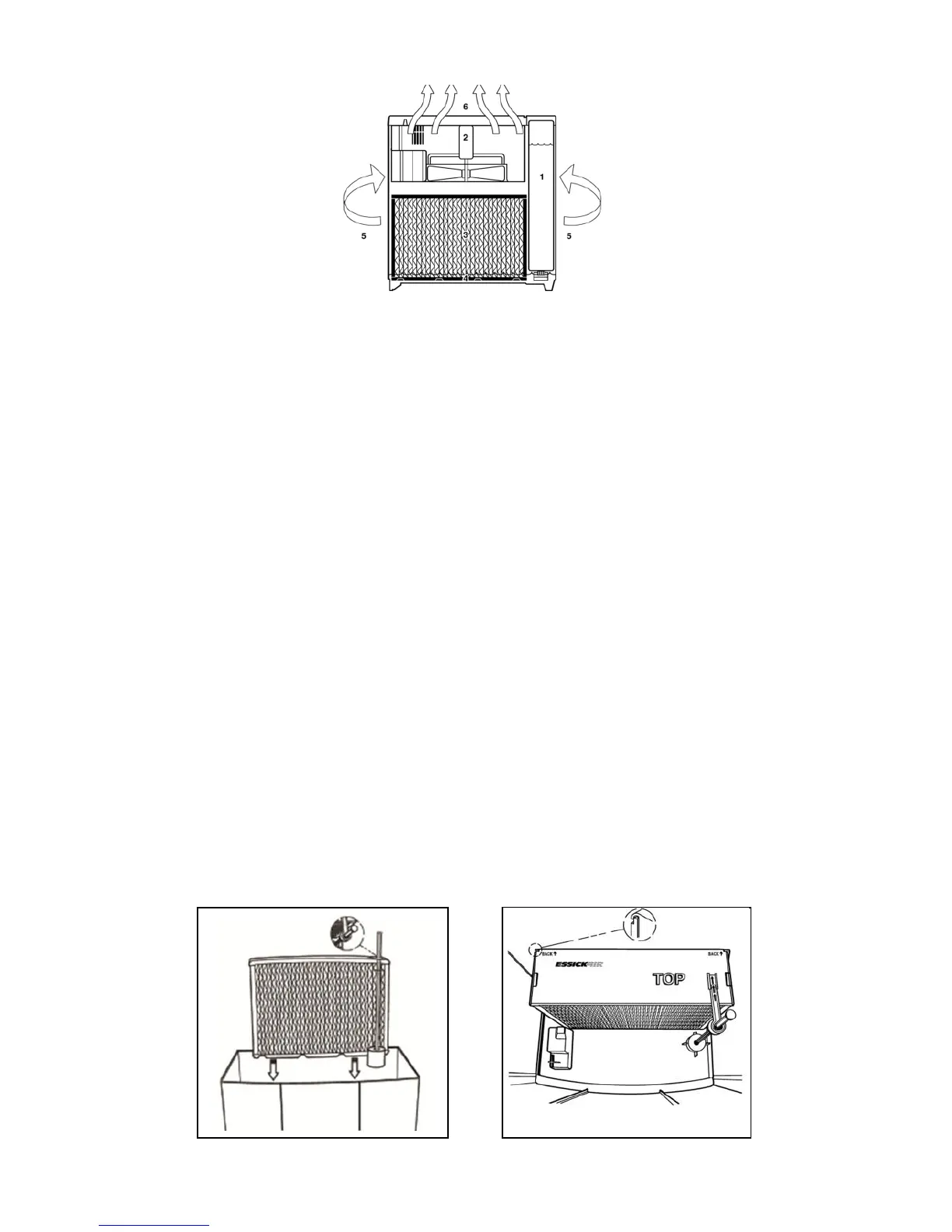

Dry air is drawn into the
humidifier though the
back and moisturized as
it passes through the
evaporative wick. It is
then fanned out into the
room.
LEGEND:
1. Water bottle
2. Chassis/power pack
(motor/fan assembly)
3. Evaporative wick
4. Water reservoir
5. Dry room air intake
6. Moist air output
♦
Filler hose ♦ Caster kit
♦ Bacterial treatment sample ♦ Water bottle with cap
♦ Optional AirCare® Filter (purchased separately) ♦ Manual
