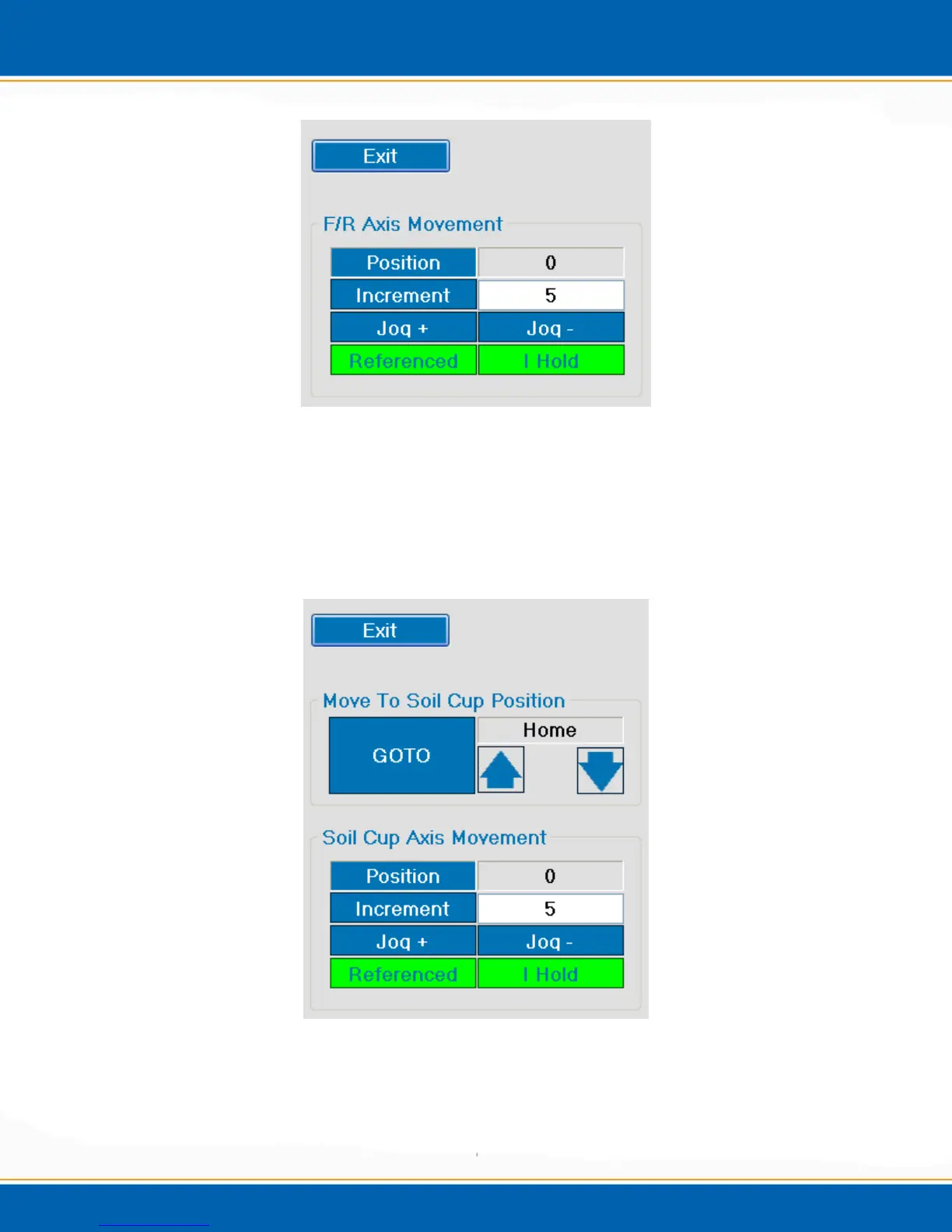

Figure 4h: F/R Axis Manual Control
F/R Axis Movement: The Position count displayed is the current F/R axis position.
To change the current F/R axis position, enter the desired Increments and select Jog
+ or Jog -, an increment of 100 is equal to 1/16”. <click> Referenced to home the
axis. (NOTE: This applies to the L/R Axis Movement also.) The position will be
maintained until manually changed or a method is loaded.
Figure 4i: Soil Cup Axis Control
