Pneumohydraulic controller HP 036./HP 037.
The HP 03.. controller is used to position actuators in web guiding
systems or in unwinding/rewinding stations. The controller is desig-
ned for systems guiding by the web edge with a pneumatic sensor
FL2.. .
2. Function
2.1 Purpose
HP 03.. controller

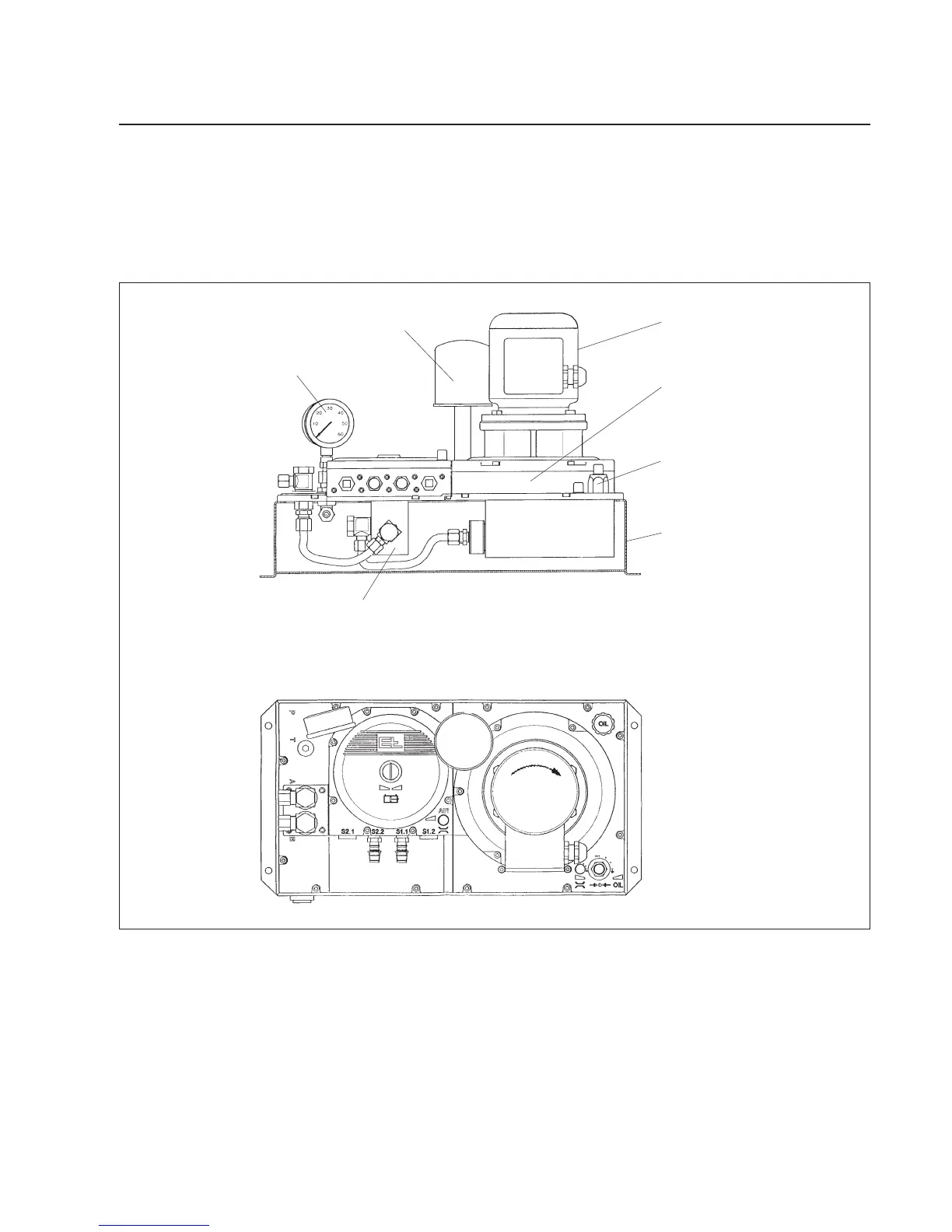

2.2 Design
Side channel compressor
Air intake lter
Servo-valve
Pressure gauge
Fluid tank
Pressure relief valve
Three-phase a.c. motor
The HP 03.. controller is made up of the following components:
- three-phase a.c. motor
- side channel compressor
- air intake lter
- servo-valve
- pressure relief valve
- pressure gauge
- uid tank
