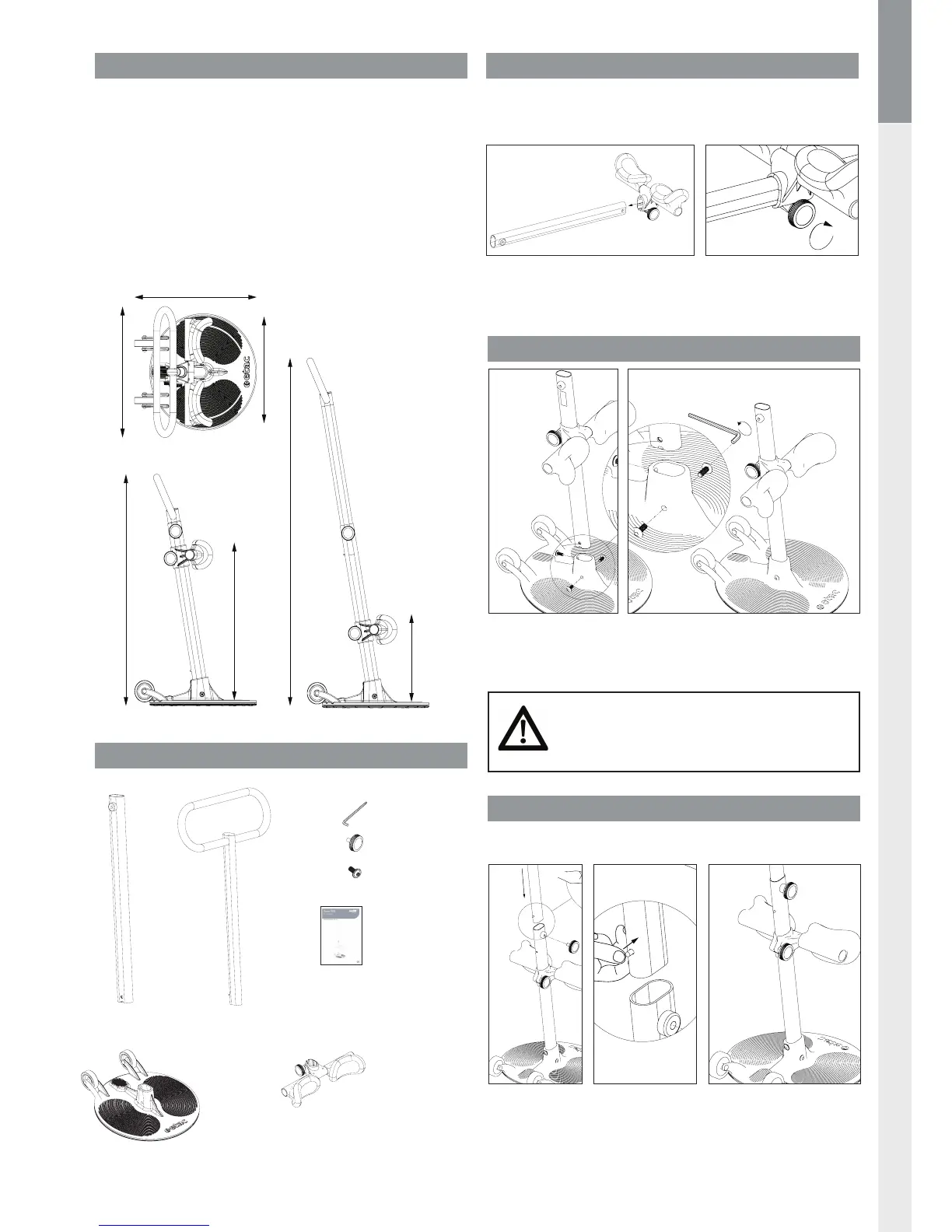

Etac Turner PRO - Technical Data and Parts; Technical Specifications; Supplied Parts; Assembly Instructions

5
Etac Turner PRO / www.etac.com
Material:
Powder coated aluminum,
Plastic, Steel.
Expected Lifetime:
The Turner PRO has an
expected lifetime of 5
years or 15000 turning cycles
Safe Working Load (SWL):
200 kg (441 lbs)
Weight of unit:
8kg
Dimensions:
Height(A): 0,8-1,2 m
Height (B): 0,3-0,55 m
Depht (C): 0,46 m
With (D): 0,45 m
Footplate (Ø): 0,40 m
Technical data
Supplied parts
Mounting leg support
Mounting pole to main plate
Mounting handle
1x
1x
1x
1x
1x
1x
3x
1x
Make sure that all three bolts are properly
fastened. Loose bolts can make the pole
wobbly and the Turner PRO unsafe to use.
CLICK!
A max
A min
B max
B min
C
D
Ø
The handle has step-less adjustment from 0,8 to 1,2 meters.
Follow these three steps when mounting the handle:
1
2
The knee cushions are adjusted individually. The leg support has step-less
adjustment from 0,3 to 0,55 meters.
Follow these two steps when
mounting the leg support:
Lay the pole down on an even surface.
Insert leg support with kneepads
pointing upwards. Make sure both knobs
are on the same side.
Tighten knob by turning
knob clockwise.
Place the base plate on an
even surface. Insert pole
with knee pads facing
away from the wheels.
Insert all three screws into holes in the base
plate. Use allen key to screw in bolts. Tighten
bolts firmly.
1 2
CLICK!
CLICK!
Place the handle
with the lock-pin
pointing towards
the wheels.
Press in the lock pin
and slide the pole
into the mounted
pole.
There will be a clicking sound
when it is correctly mounted.
Turn and tighten the knob.
1 2 3
1x
1x
1x
1x
1x
1x
3x
1x
1x
1x
1x
1x
1x
1x
3x
1x
1x
1x
1x
1x
1x
1x
3x
1x
Outer pole
Inner pole with handle
Allen key
Turning knob
Screws
User manual
Leg support
Main plate
1x
1x
1x
1x
1x
1x
3x
1x
