ETC Service Note
Congo™ jr LCD Replacement
Congo™ jr LCD Replacement Page 8 Electronic Theatre Controls, Inc.

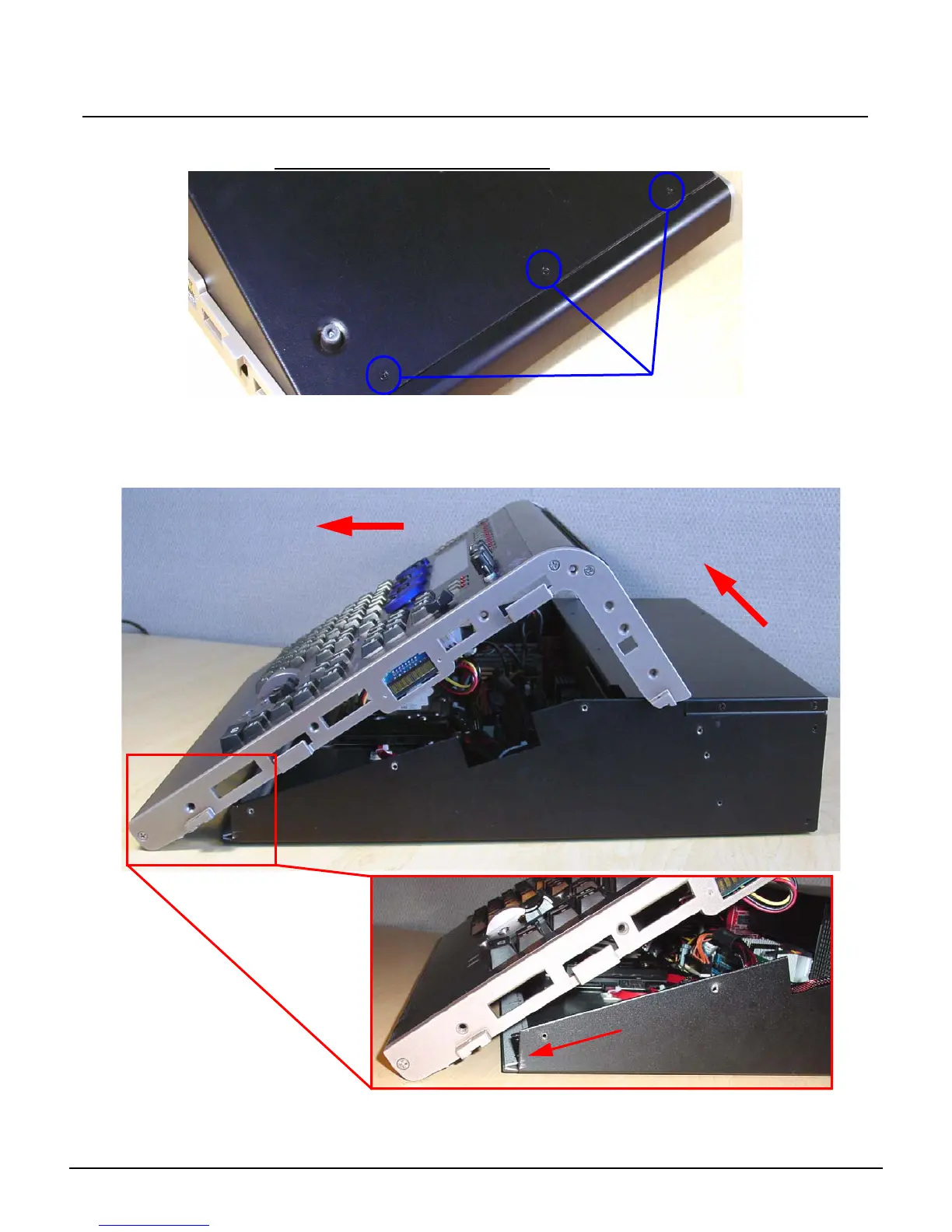

Step 4: Carefully flip over the console and loosen the 3 screws in blue below:
NOTE: DO NOT remove the 3 screws.
Step 5: Flip the console back onto the base.
Step 6: Lift the back side of the face panel upwards away from the base.
Step 7: Slide the face panel towards the front of the console. The face panel will slip under
the base pressure plate.
Loosen these screws
1. Tilt face panel upwards
2. Slide face panel forwards
Base Pressure Plate
To Next Page
