Tools Required:
#2 Phillips Screwdriver
#1 Phillips Screwdriver
Procedure:
Step 1: Remove the protective side panels from the Congo jr Console.

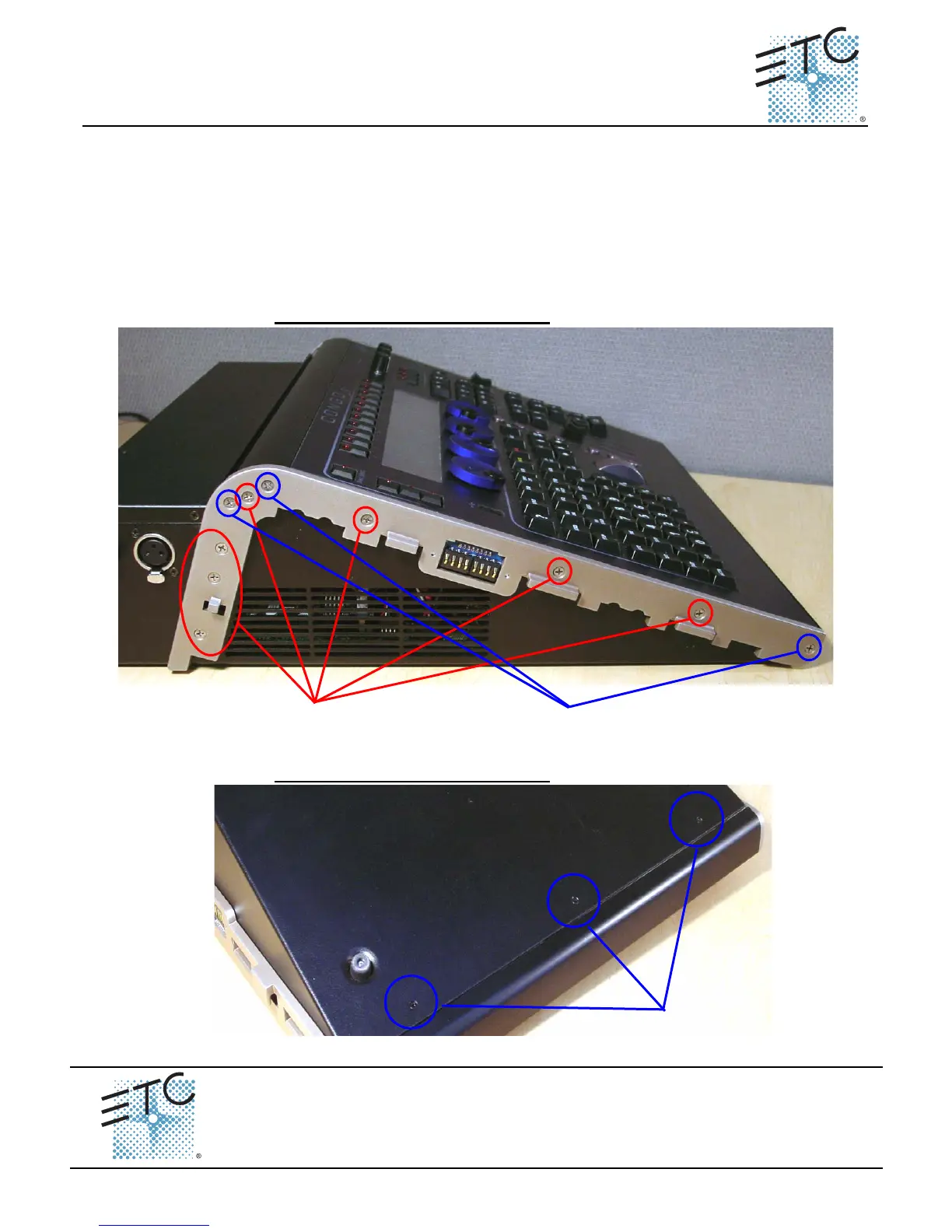

Step 2: Remove the 7 screws indicated in Red below.
Step 3: Loosen the 3 screws indicated in Blue below.
NOTE: DO NOT remove the 3 screws.
Step 4: Carefully flip over the console and loosen the 3 screws in blue below:
NOTE: DO NOT remove the 3 screws.
DMX Driver Chip Replacement
Remove these screws
Loosen these screws
2 full turns
Loosen these screws
To Next Page
