ETC Service Note
Congo™ jr DMX Driver Chip Replacement
Congo™ jr DMX Driver Chip Replacement Page 33 Electronic Theatre Controls, Inc.

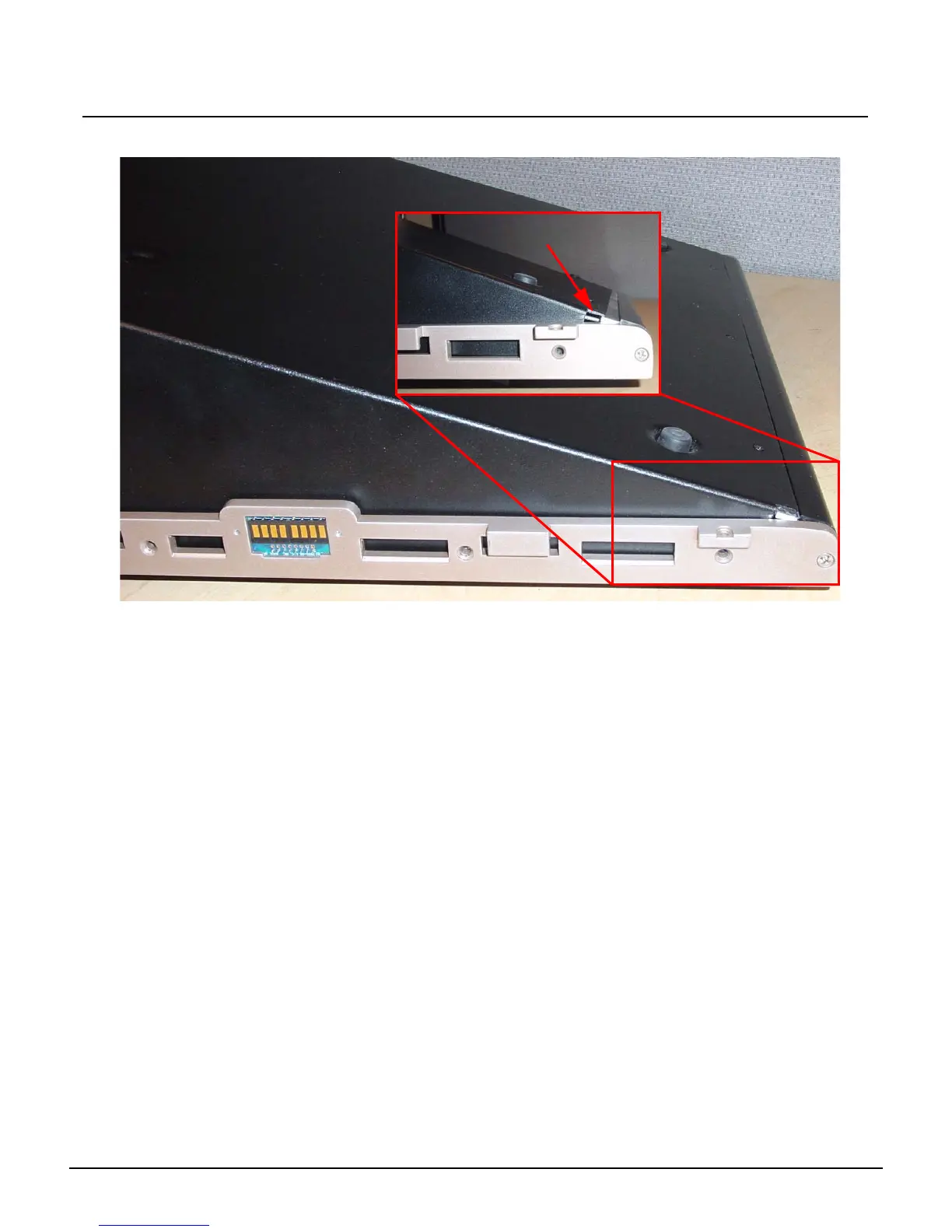

Step 19: Slide the face panel back under the base pressure plate.
Step 20: Re-attach all 7 screws from each side of the console face panel.
Step 21: Flip the face panel over and tighten the 3 screws on the base of the console.
Step 22: Power the console up and verify correct console operation and verify DMX outputs on
both ports.
Base Pressure Plate
