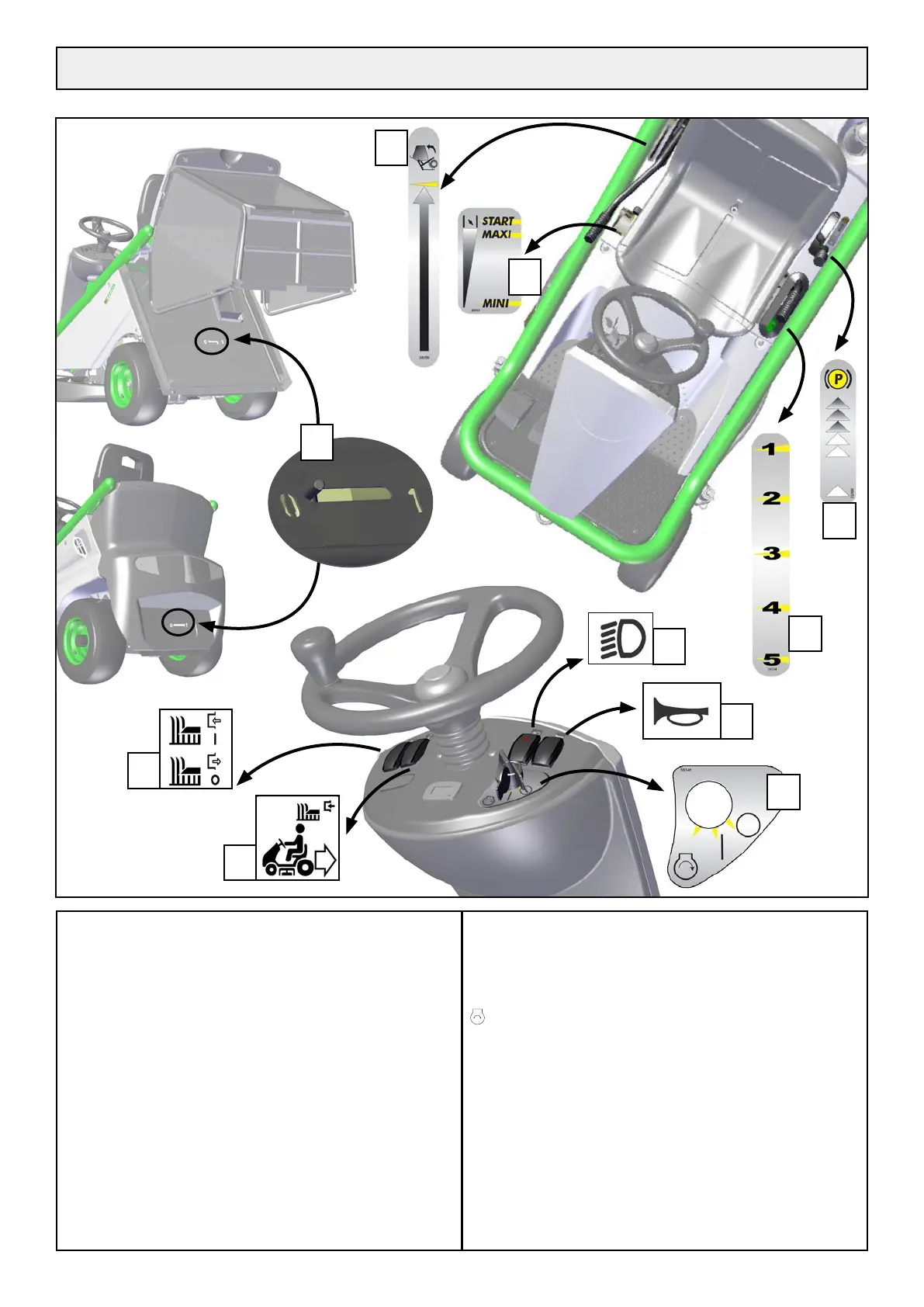

2• KEY TO DIAGRAMS - USE
A - BY-PASS
1 : closed by pass = advance transmission engaged
0 : open by pass = advance transmission disengaged
B - EMPTYING THE GRASS BOX
• On every models except MKM and MKHPF: The arrow indicates
the direction of movement of the release lever in order to empty
the grass box.
C - ENGINE SPEED
START: position for starting the engine
MAXI: engine at full speed
MINI: engine idling
D - PARKING BRAKE
The arrow indicates the direction of movement of the brake lever in
order to engage the parking brake.
E - CUTTING HEIGHT
Indicates the cutting height.
F - LIGHTING (MKHP)
G - HORN (MKHP)
H - STARTING THE ENGINE
0 : engine off, power switched off
I : power switched on
: engine started
I - CONTROL SWITCH « MOW IN REVERSE »
Once the cutter is in operation, press this switch once to mow with
the machine in reverse.
Otherwise the cutter disengages as soon as you select reverse. It will
re-engage with the advance lever when it reaches Neutral or Forward.
If you disengage the cutter with the engage cutting system switch or
if a safety feature trips it, you will have to re-engage the cutter.
J - OPERATING THE CUTTER
I : cutter switched on
0 : cutter switched off
