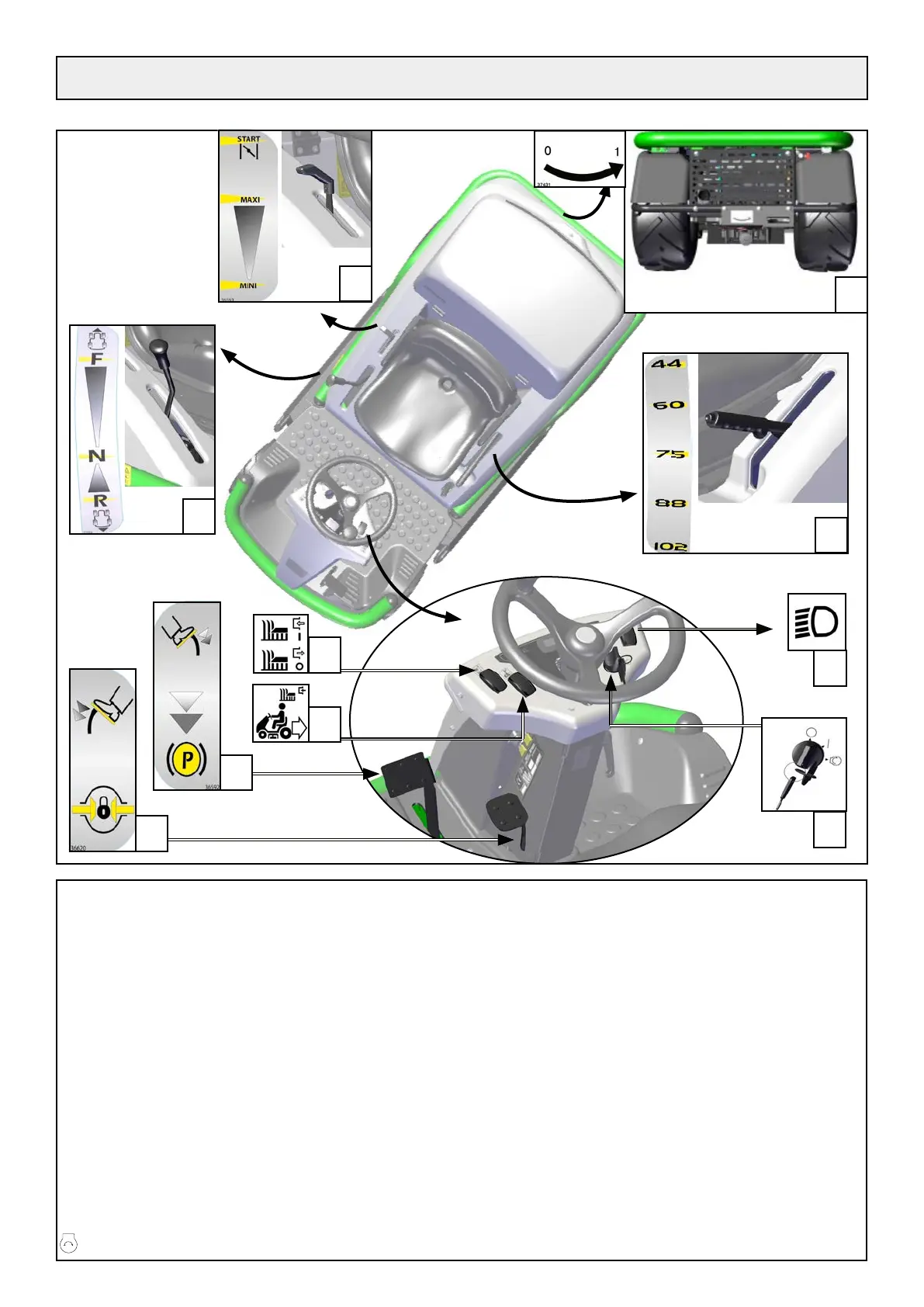

2• KEY TO DIAGRAMS - USE
A - ADVANCE
F : forward top speed
N : neutral (stop)
R : reverse top speed
B - ENGINE SPEED
START :
position for starting the engine
MAXI : engine at full speed
MINI : engine idling
C -
BY-PASS
1 : Lever in position I : by-pass closed
= position advance transmis-
sion
engaged
0 : Lever in position 0: by-pass open
= position advance transmis-
sion
disengaged
D - CUTTING HEIGHT
Indicates the cutting height in mm (measured on hard, flat ground).
E - LIGHTING
F - STARTING THE ENGINE
0 : engine off, power switched off
I :
power switched on
: engine started
G - OPERATING THE CUTTER
I : cutter switched on
0 : cutter switched off
H -
CONTROL SWITCH « MOW IN REVERSE »
Once the cutter is in operation, press this switch once to mow with
the machine in reverse.
Otherwise the cutter disengages as soon as you select reverse. It will
re-engage with the advance lever when it reaches Neutral or Forward.
If you disengage the cutter with the engage cutting system switch or if
a safety feature
trips it, you will have to re-engage the cutter.
I -
PARKING BRAKE
The arrow indicates the direction of movement
of the brake pedal
in order to engage the parking brake.
J - DIFFERENTIAL LOCK
The arrow indicates the direction of pedal movement to lock the diffe-
rential.
