Ethos 8400 - Operating the Ethos 8400; Push Button Functions

9
EETTHHOOSS 88440000
INSTRUCTION MANUAL
8
EETTHHOOSS 88440000
INSTRUCTION MANUAL

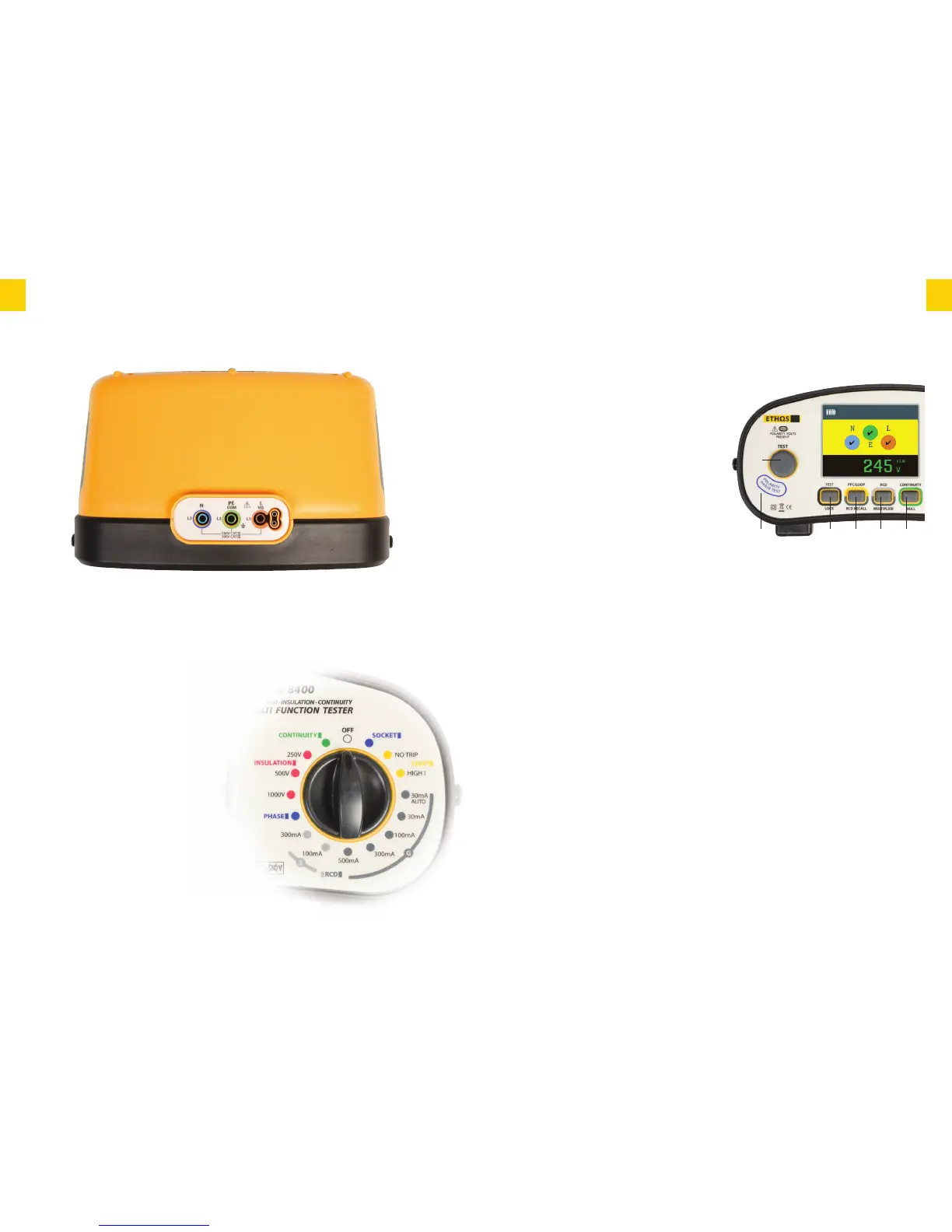

Top View
OOppeerraattiinngg tthhee EEtthhooss 88440000
All test Functions are selected by using the main rotary switch.
1 Power off.
2 Socket/Polarity Test
3 No Trip Earth Loop Impedance Test
4 High Current Earth Loop Impedance Test
5 30mA Auto Sequence Type G RCD Test
6 30mA RCD Test (Manual) Type G
7 100mA RCD Test (Manual) Type G
8 300mA RCD Test (Manual) Type G
9 500mA RCD Test (Manual) Type G
10 100mA RCD Test (Manual) Type S
11 300mA RCD Test (Manual) Type S
12 Phase Rotation Test
13 1000V Insulation/Resistance Test
14 500V Insulation/Resistance Test
15 250V Insulation/Resistance Test
16 Continuity Test
OOppeerraattiinngg tthhee EEtthhooss 88440000
Push Buttons
1 Test Button - Initiates all selected tests.
2 Test Lock - Hands Free function for
Continuity, Insulation & Loop
3 PFC/Loop - Prospective fault current
value after Loop Test Result
4 RCD Recall - List the last set of RCD
Test Data from an Auto sequence Test
5 Continuity Null - Nulls the Resistance
Value from the Test Leads in use
6 Polarity Test Pad - Unique safety
function ensuring correct mains polarity
AAuuttoo ppoowweerr ooffff ffuunnccttiioonn
To ensure long battery life the Ethos 8400 will
automatically power off when standing idle for 3
minutes. To power the Ethos 8400 either return the selector switch to “OFF” and then back to
the test selection or simply press any of the four buttons under the display screen.
TTeesstt && MMeeaassuurreemmeenntt FFuunnccttiioonnss
IInnssuullaattiioonn aanndd CCoonnttiinnuuiittyy
  CAUTION
Measurements shall only be carried out on de-energised circuits.
If the tester is connected to a live circuit (25V or greater), the LED will flash red and the
hazard buzzer will sound.Your Ethos 8400 is fully protected but measured RMS voltage
will be displayed on the secondary/lower display. Further testing after this point will be
inhibited.To resume testing, disconnect the test leads and isolate the circuit.
All equipment and appliances should be disconnected from the circuit under test.
Attached equipment may be damaged by the higher voltages applied during testing and
may return an artificially low test result.
There may be capacitance on the circuit being tested.Your tester will automatically
discharge this but do not disconnect the test leads or change tester function until auto-
discharge has completed.
1
23456
1
2
3
4
5
6
7
8
9
4
10
11
12
13
4
14
15
16
