INSTALLATION
Mounting

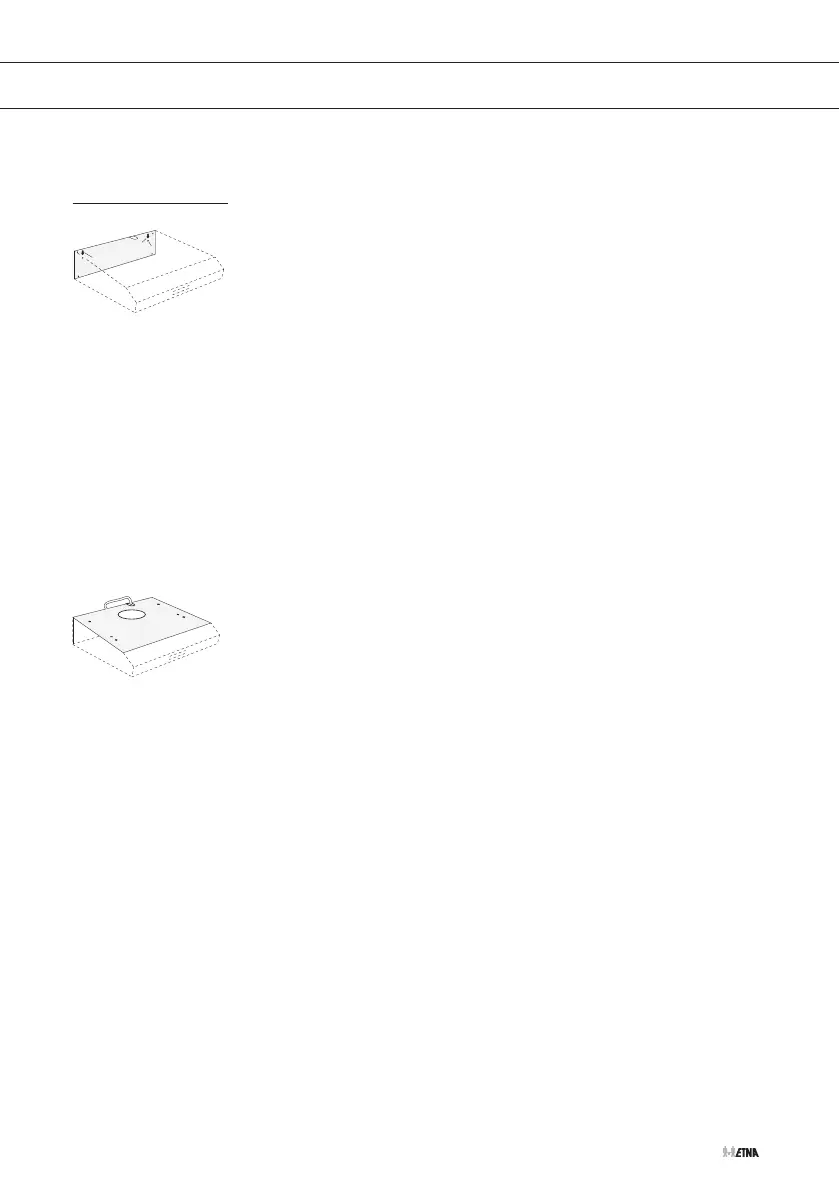

Against the wall
• Remove the filters from the extractor hood.
• Hold the hood against the wall.
• Working through the hood, draw the mounting holes (A) and the
holes to secure the hood (B).
• Drill the holes.
• Push the wall plugs supplied into the holes.
• Insert the screws into the 2 mounting holes (A).
NB: screw the screws in until 1 cm is left protruding from the wall.
• Hang the hood on the 2 mounting screws.
• Tighten the mounting screws.
• Tighten the locking screws.
• Connect the flue pipe to the flue ring.
Below a kitchen cupboard
• Working through the hood, draw the 4 mounting holes (A), the hole
for the power lead (C) and the hole for the flue (D) on the bottom of
the kitchen cupboard.
• Drill the holes.
• Pull the power lead upwards through the hole provided and push
the flue ring through the opening.
• Hang the hood, through the bottom of the kitchen cupboard, on the
4 mounting screws. Tighten the screws.
• Connect the flue pipe to the flue ring.
