Place switch (9) in MONO position.
Bass Boost
The bass reproduction can be increased at 45 Hz between 0 and 12 dB. Simply turn the controller (12) until
your listening taste has been satisfied.
Filter Selection LP (Low Pass)
Place switch (15) in the ON position. Now you can select the transmission frequency of the amplifier
between 45 and 300 Hz by using controller (16). Only the frequencies within this range will be amplified.
This configuration is recommended for operation as subwoofer amplifier.
Phase
Place switch (13) in the ON position. Using controller (14) it is now possible to adjust the phase between 0°
and 360°. The correct adjustment is achieved as soon as you together with your front system receive the
best bass impression.
Remote Control
In the mono operation mode the remote control is active. This allows the volume adjustment of the amplifier.
12V
switched
FUSE
SOURCE UNIT
SUB
Configuration Examples
Mono Operation

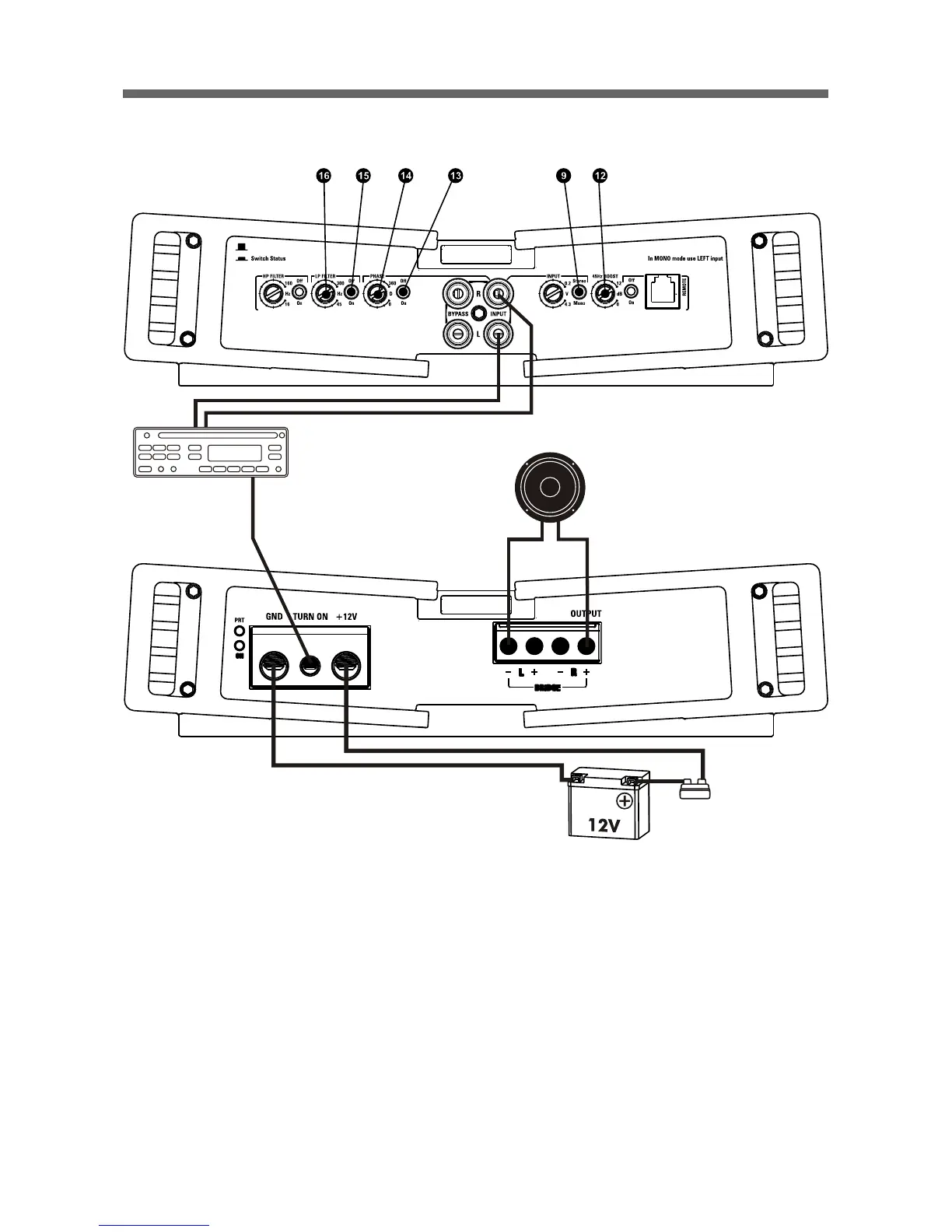

Place the connections as shown in the diagram.
