CHAPTER 5 GENERATOR PARTS DIAGRAMS AND LISTINGS

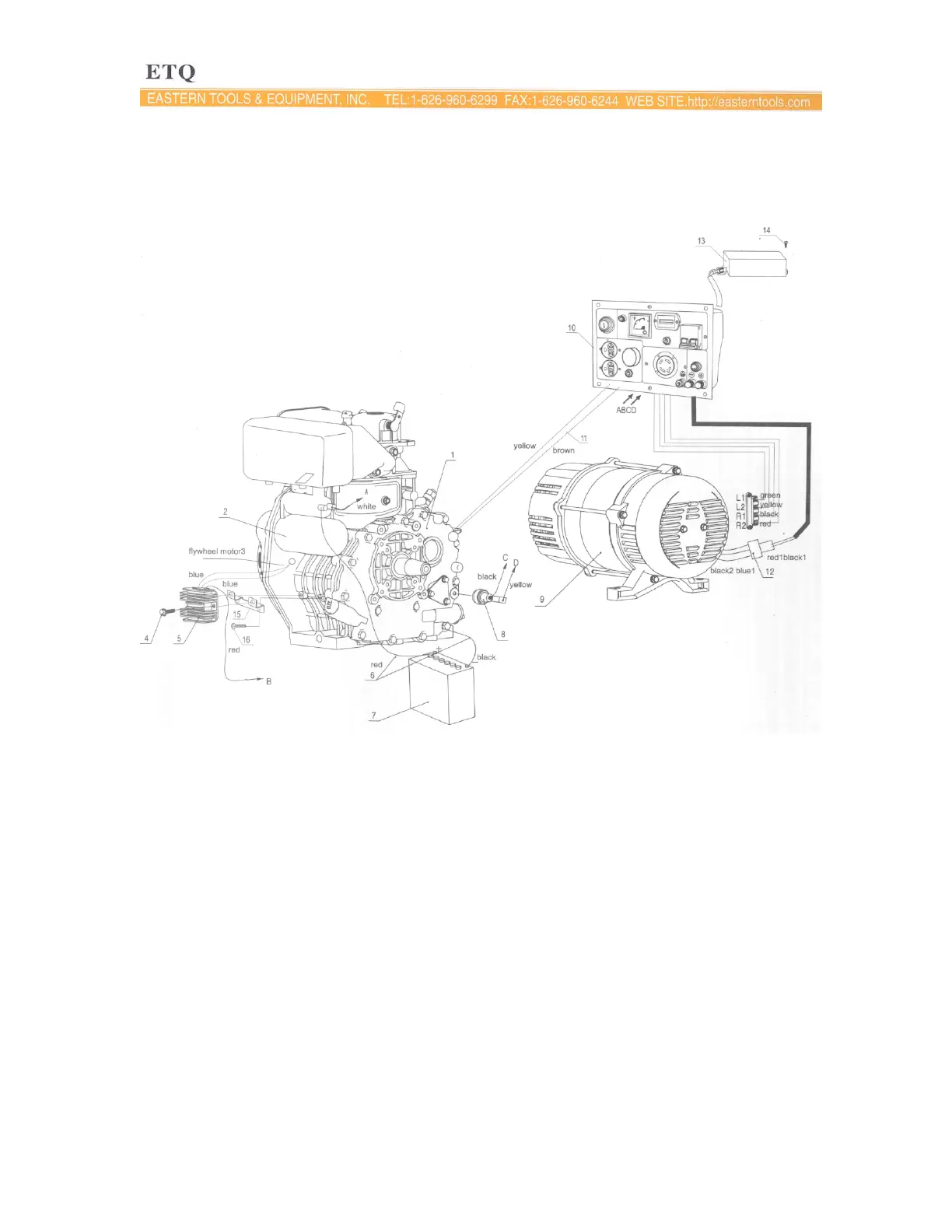

Figure 5-2. Overall view of engine generator assembly

Table 5-1. Please refer to figure 5-2 for illustration

Number Part Description Quantity Part Number (4LE / 6LE)

1 ETQ series diesel engine 1 ETQ4LE1 / ETQ6LE1

2 Starter Motor 1 ETQ4LE2 / ETQ6LE2

3 Flywheel generator 1 ETQ4LE3 / ETQ6LE3

4 Bolt 2 ETQ4LE4 / ETQ6LE4

5 Voltage Regulator 1 ETQ4LE5 / ETQ6LE5

6 Battery Cable (red) 1 ETQ4LE6 / ETQ6LE6

7 Battery Cable (black) 1 ETQ4LE7 / ETQ6LE7

8 Battery 1 ETQ4LE8 / ETQ6LE8

9 Oil level sensor 1 ETQ4LE9 / ETQ6LE9

10 Output panel assembly 1 ETQ4LE10 / ETQ6LE10

11 Throttle cable 2 ETQ4LE11 / ETQ6LE11

12 Connector assembly 1 ETQ4LE12 / ETQ6LE12

13 Capacitor 1 ETQ4LE13 / ETQ6LE13

14 Bolt 2 ETQ4LE14 / ETQ6LE14

15 Voltage Regulator Bracket 1 ETQ4LE15 / ETQ6LE15

16 Bolt 2 ETQ4LE16 / ETQ6LE16
