7

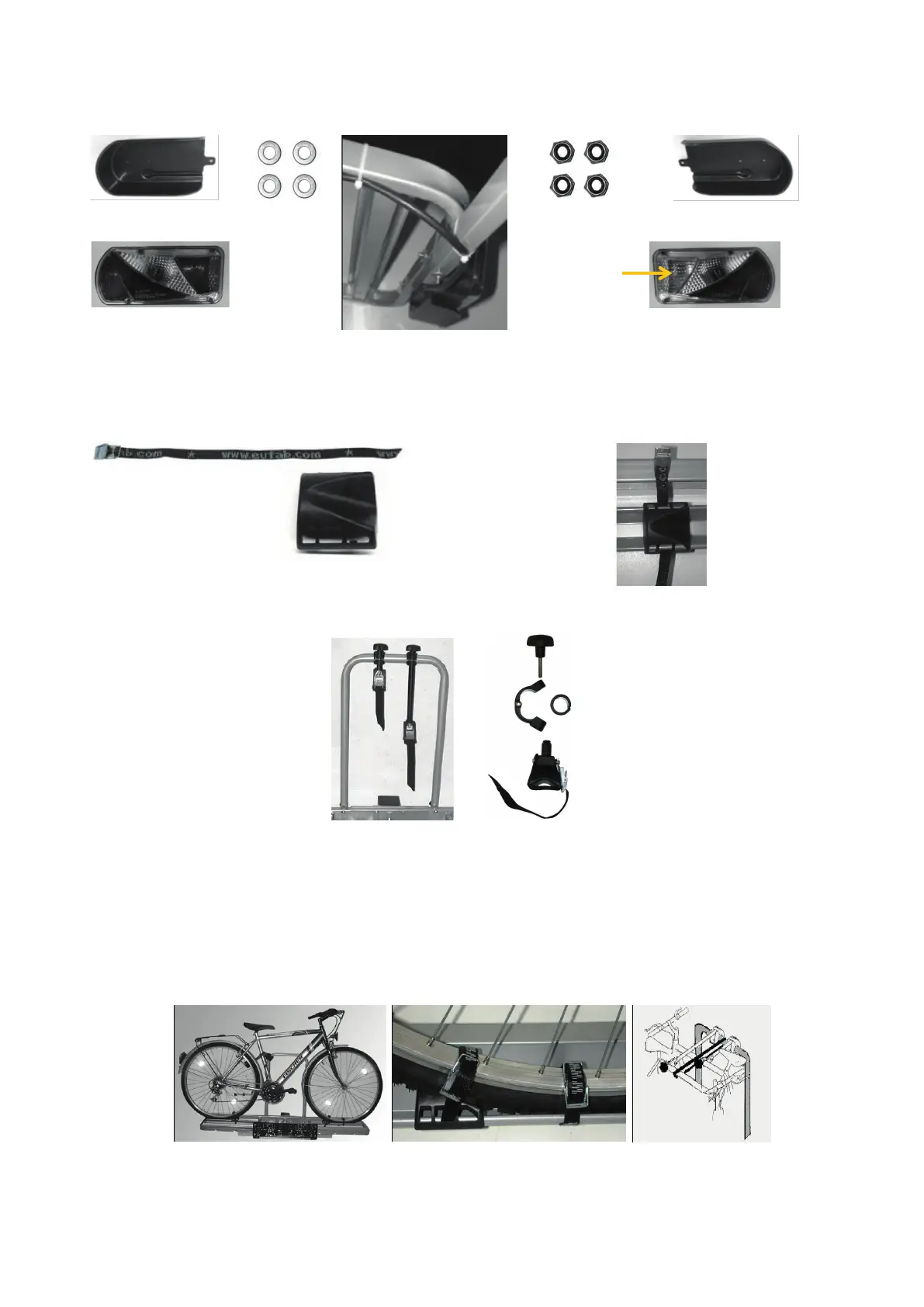

Protective mould left Protective mould rightWasher 5 mm Nut M5
Rear light, left
Rear driving light
Rear light, right
To mount the rear lights, rst place these in the protective moulds. Make sure that the cable is tted cleanly into the duct and is not crushed.
The rear light with the reverse light is mounted on the right (in the direction of travel) and the fog light is mounted on the left, in doing so, the
openings for license plate illumination for both lights must be on the inside. Now insert the threaded bolts of the rear lights through the drilled
holes in the rack table and screw into place using washer and M5 nuts. Lay the cable alongside the inner rack tube and secure with cable ties.
Mount the license plate holder to the rack traverse and align it so that it is positioned centrally to the license plate illumination.
Seal the ends of the tubes on the rack traverse using the square plugs 30 x 20 [mm] and on the rack table with the square plugs 80 x 30 [mm].
Now push two wheel stoppers on the right and left from above onto the wheel rails. Make sure that the higher side of the wedge shape points
towards the middle of the rack. Insert the small tensioning strap through the middle opening of the stopper and under the wheel rail on the
opposite side, then back through the middle opening.
The remaining two straps are used later to correctly secure the bicycles.
Open the cus of the frame holder by unscrewing the knob and place the cus around the tube of the U-shaped bracket with their inserts. Close
the frame holder again, but do not tighten.
Mounting the bicycle rack on the trailer tow bar
Make sure that the trailer tow bar is undamaged, clean and grease-free.
The bicycle rack is placed on the coupling from above. Tighten the M16 screw slightly and align the bicycle rack parallel to the rear of the vehicle.
Now tighten the M16 screw so that the rack is securely attached.
Regularly check the rm seating of the rack on the trailer tow bar as well as the functionality of the lighting systems.
6 x straps
4 x
Wheel Stoppers
Mounting the bicycles to the carrier
The rst bicycle is placed in the rst bicycle rail (closest to the vehicle) and secured to the U-shaped bracket using the short frame holder.
The wheels are secured by pushing the stoppers up to the wheel and securing with the straps.
Caution: The front wheel must also be secured with a small tensioning strap to prevent it from turning.
The second bicycle is placed in the second rail, facing the opposite direction and secured to the U-shaped bracket with the long frame holder. The
wheels are secured in the same way as for the rst bicycle. It may be necessary to arrange the individual bicycles dierently on the rack to ensure
that the frame holders may be correctly secured. Now secure the bicycles with the long safety strap. Wrap the safety strap through the bicycle
frames and the U-shaped bracket and tighten.
