6
• Remove the bicycle rack before using a car wash.
• The bicycle rack is designed for use on rough terrain.
• If the bicycle rack is not in use, remove the rack from the coupling.
Operating instructions

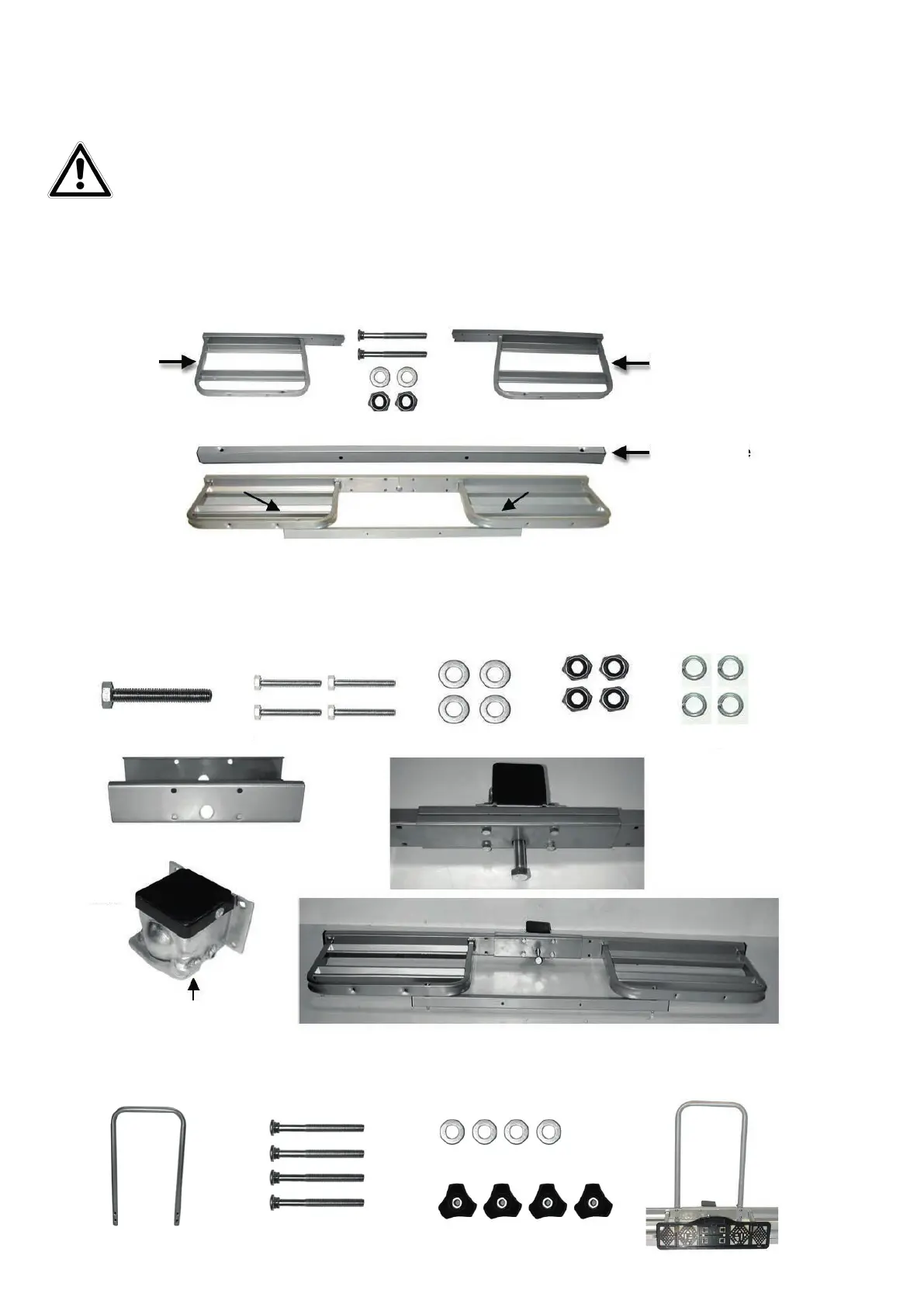

Mounting the bicycle rack
Place the left and right halves of the rack table on an even surface with the wheel rail openings facing upwards. Secure the rack traverse to the
rack table by feeding the M6 x 70 lock screws from the top through the table and traverse and screwing into from below with washers and nuts.
At this point, do not yet tighten the nuts.
Pay attention to ensure that the screws for the license holder are on the outside of the rack traverse. Connect both rack halves with the connec-
ting plate and the rack base. Make sure that the large, central drilled hole of the connecting plate is seated over the drilled hole of the rack
table. Insert the four M8 x 50 hexagonal screws with washers, from the inside, through the connecting plate and the square pipe of the rack
table. From the outside, position the rack base, in doing so, the holder for the trailer coupling must be at the bottom. Then secure with spring
washers and nuts. Now screw the M16 x 1.5 x 90 screw approximately one centimetre into the rack base.
The general operating permit must be carried in the vehicle when the rack is mounted.
Do not travel with the bicycle rack empty. Store it in the boot of your vehicle. This prevents increased fuel consumption
and protects the rack.
The driver is always responsible for ensuring that the load and the load securing meet the regulations.
Rack table half, left Rack table half, right
Rack table traverse
Lock screw M6 x 70, Washer 6 mm, Nut M6
connection
Screw M16 x 90
Base
down
Screws M8 x 50
Connection plates
Washers 8 mm Nuts M8 Spring washers M8
result
Align all of the mounted parts and tighten all screw connections evenly and rmly.
Now mount the U-shaped bracket, see pictures. To do this, insert four lock screws M6 x 70 from the inside, through the frame of the rack table and,
from the outside, place the U-shaped bracket onto the screws. Secure the U-shaped bracket using washers and knurled nuts.
U-shaped bar Lock screw M6 x 70 Knob nut M6
Washer 6 mm
