EUFAB 11583 - Instructions for Use; Overview; Attaching the Extension

12
Figure 3: Removing the retaining clips Figure 4: Removing the retaining screws
5.2 ATTACHING THE EXTENSION
NOTE
Step 1: Step 2:
Before tting the extension to your bicycle rack, disconnect the electrical cables from the base frame of the
bicycle rack by cutting through the cable ties with cutting pliers.
Remove the brackets for the lamp holders from the outside
of the base frame (left and right).
Remove the retaining screws from the base frame.
(Left and right).
5. INSTRUCTIONS FOR USE
5.1 OVERVIEW
1 Wheel rail left
2 Wheel rail right
3 Frame holder
4 Safety strap, long
5 Assembly material
6 Cable ties
7 Tensioning strap, short
6
5
1
2
7
3
4
5

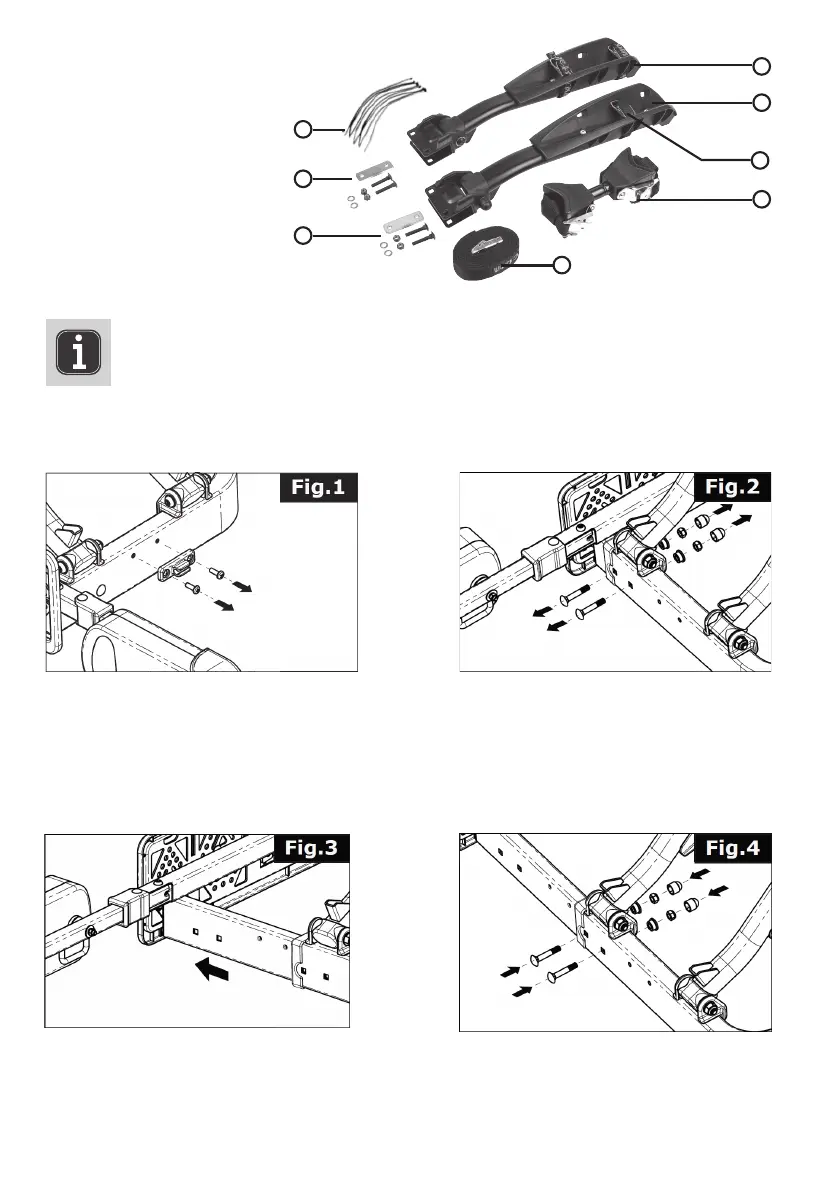

Figure 2: Overview
Figure 5: Pulling out the frame extension Figure 6: Inserting the retaining screws
Step 3: Step 4:
Pull the frame extension with the licence plate holder and
the lamp holders out of the base frame until the second pair
of holes in the extension coincide with the holes in the base
frame.
Replace the retaining screws (left and right).
