Euphonix Max Air Contro
l Surface Manual
17

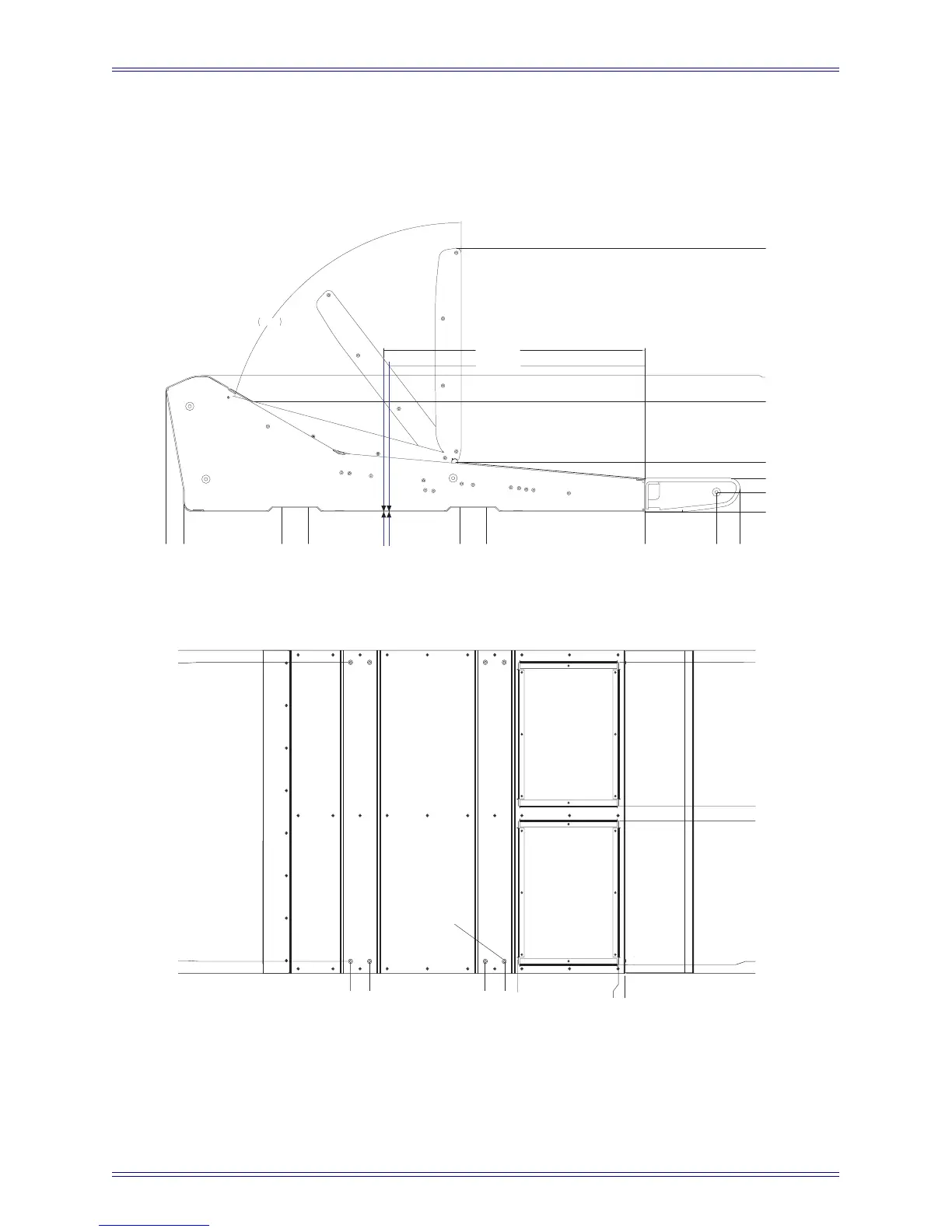

Dimensions
Figure 10
Side Dim
ensions
Figure 11
CM416 Bottom Dimensions
0
4.39
5.85
9.83
11.42
20.83
22.42
28.50
29.58
0
1.20
2.06
3.06
6.78
8.39
16.25
75.00°
Dimensions in inches
15.625
CM416 BALANCE POINT
16.13
CM404 BALANCE POINT
9.83
11.42
20.83
22.42
0
.53
8.742
0
.902
11.723
12.827
23.648
24.300
0
.900
23.400
24.300
KEEP CLEAR FOR
VENTILATION
KEEP CLEAR FOR
VENTILATION
1/4-20 THREADED
INSERT 8 PLACES
16
18
Table of Contents
Important Safety Instructions
3
Table of Contents
5
System Startup Sequence
7
Typical Console Layout
7
Description
7
Overview
7
CM404 Rear Panel
8
CM416 Rear Panel
8
Cm404
8
Cm416
8
Self Test Procedure
9
Initiating Self Test
9
Switch and Knob Test
9
Control Surface Self-Test Keys
9
LED Test
10
Fader Test
10
Display Test
11
Memory Test
11
Selecting and Adjusting the Onscreen Display
12
Touchscreen Alignment
13
Changing the CM416 ID
15
Changing the ID of a CM416 Module
15
System Ethernet IP Addresses
15
Technical Specifications
16
Power
16
Environmental Requirements
16
Dimensions
17
Side Dimensions
17
CM416 Bottom Dimensions
17
CM404 Bottom Dimensions
18
Max Air Top Dimensions
18
User Reference
19
Internal Components
19
Fans
20
