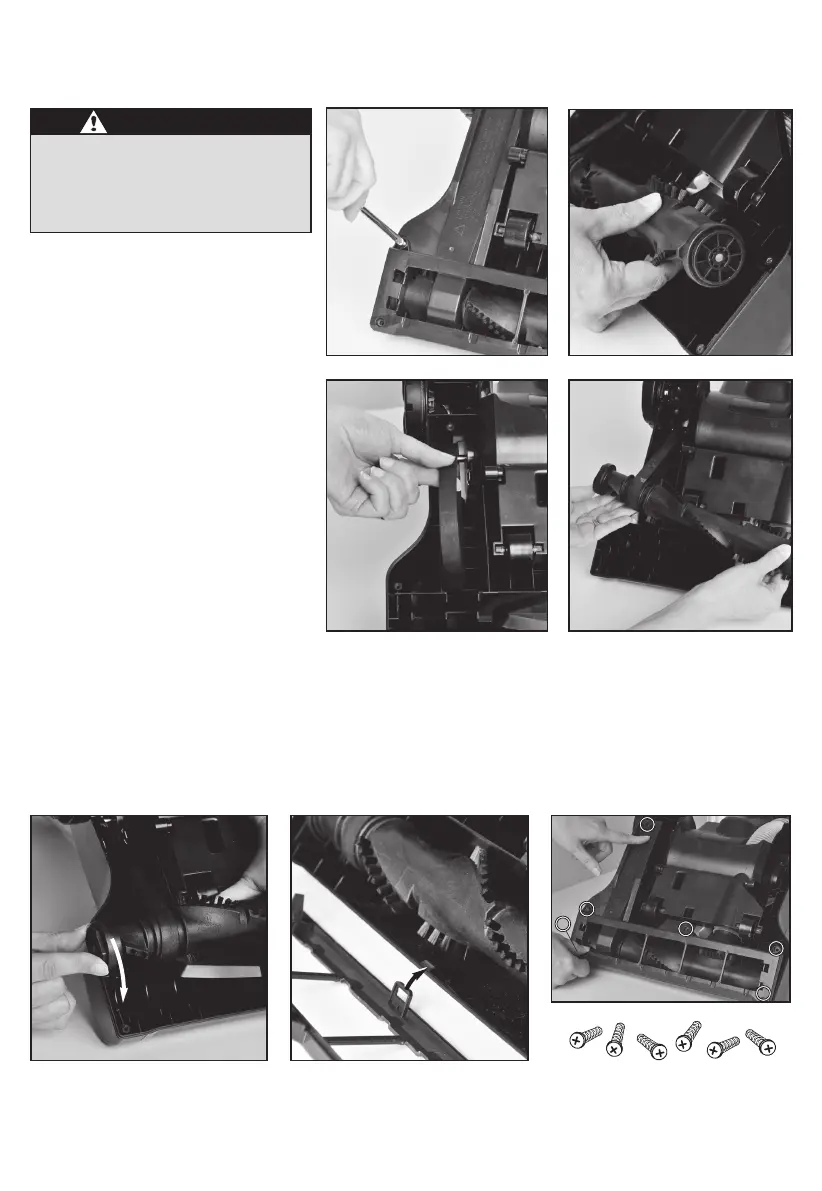

How to replace brushroll or belt
• Step on handle release and lay
vacuum cleaner face down.
• Use Phillips screwdriver to remove
6 screws from brushroll cover
(Fig. 1). Lift off cover. Refer to
Fig. 7 for location of screws.
• Rotate right end of brushroll and
lift out (Fig. 2).
• Lift out left end of brushroll.
• To replace belt, position new belt
around motor shaft (Fig. 3).
• Loop new belt around brushroll
shaft at left end of brushroll (Fig. 4).
• To reposition brushroll into base,
pull belt down and insert left end
of brushroll first. Align brushroll
end cap with slot so it fits into
position (Fig. 5). Press right end
of brushroll into position.
• To replace brushroll cover, align
slot on cover with tab (Fig. 6) and
snap cover into place. Replace 6
screws (Fig. 7).
CAUTION
Make sure vacuum is
turned off and power cord
is unplugged.
1 2
3 4
5 6
1
6
3
5
4
2
7
