EuroLite DMX Scene Setter 24/48 User Manual

00079614.DOCX, Version 1.7
21/28
24 PAGE button
Press to select the desired scene program in the corresponding page.
25 MODE SELECT button
Selects Chase Scenes DOUBLE PRESET or SINGLE PRESET.
26 DARK button
Press and hold to pause all output channels, including FULL ON and FLASH.
27 ALL REV button
This button reverses the chasing direction of all programs.
28 0% OR 0-255 button
Press to select the mode of indication (0% or 0-255) in the display.
29 REV ONE button
Press and hold the button, then press any of the PRESET B buttons. The scene program will chase in
reverse direction.
30 CHASE REV button
This button reverses the scene program chase direction with the speed faders.
31 BEAT REV
This button reverses the scene program chase direction with the sound control.

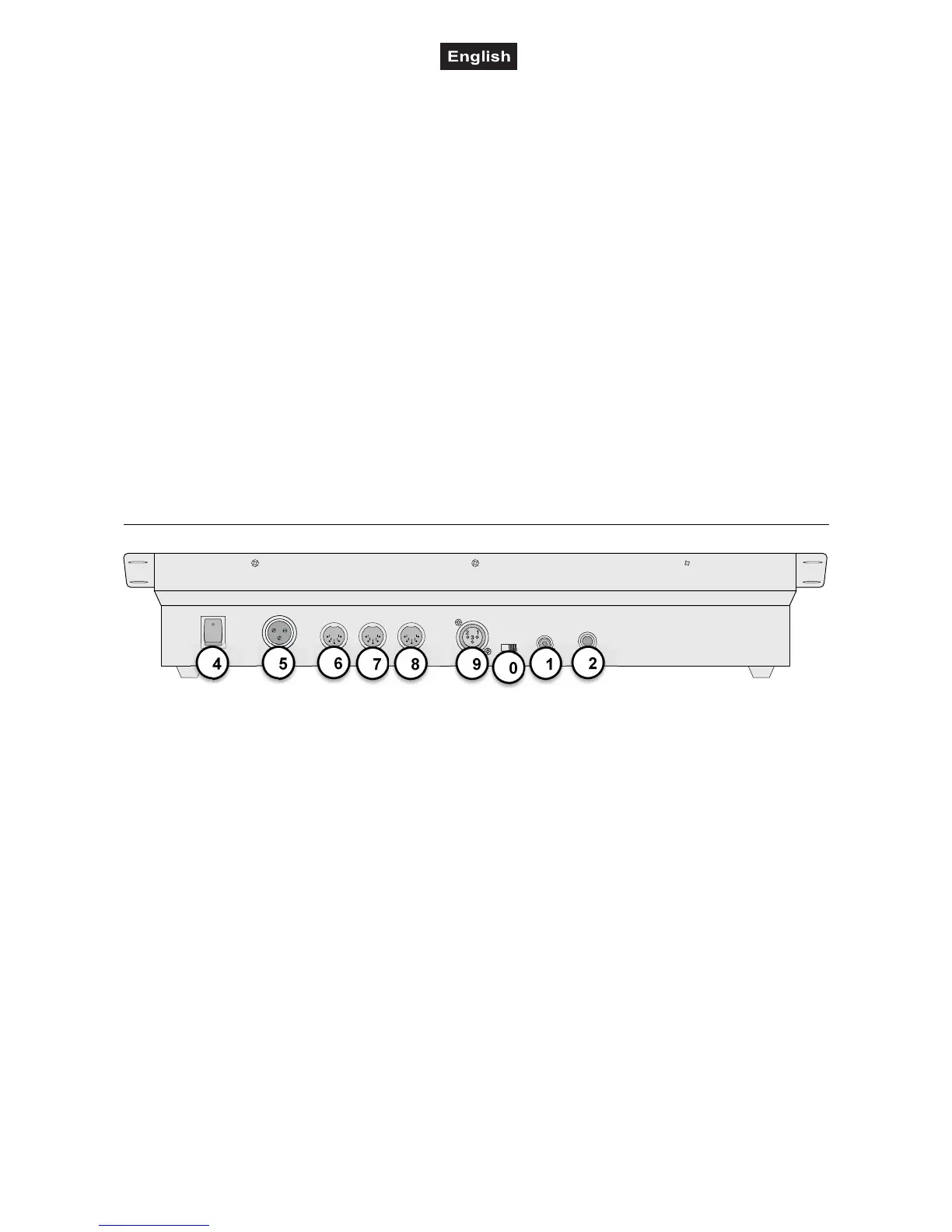

32 Display
33 LEDs
34 Power on/off
35 Power input
Plug in the mains cable of the supplied power unit here and fix it with the union nut.
36 MIDI THRU connector
37 MIDI OUT connector
38 MIDI IN connector
39 DMX512 output
40 DMX POLARITY selector switch
41 Line input
42 Foot switch connector
