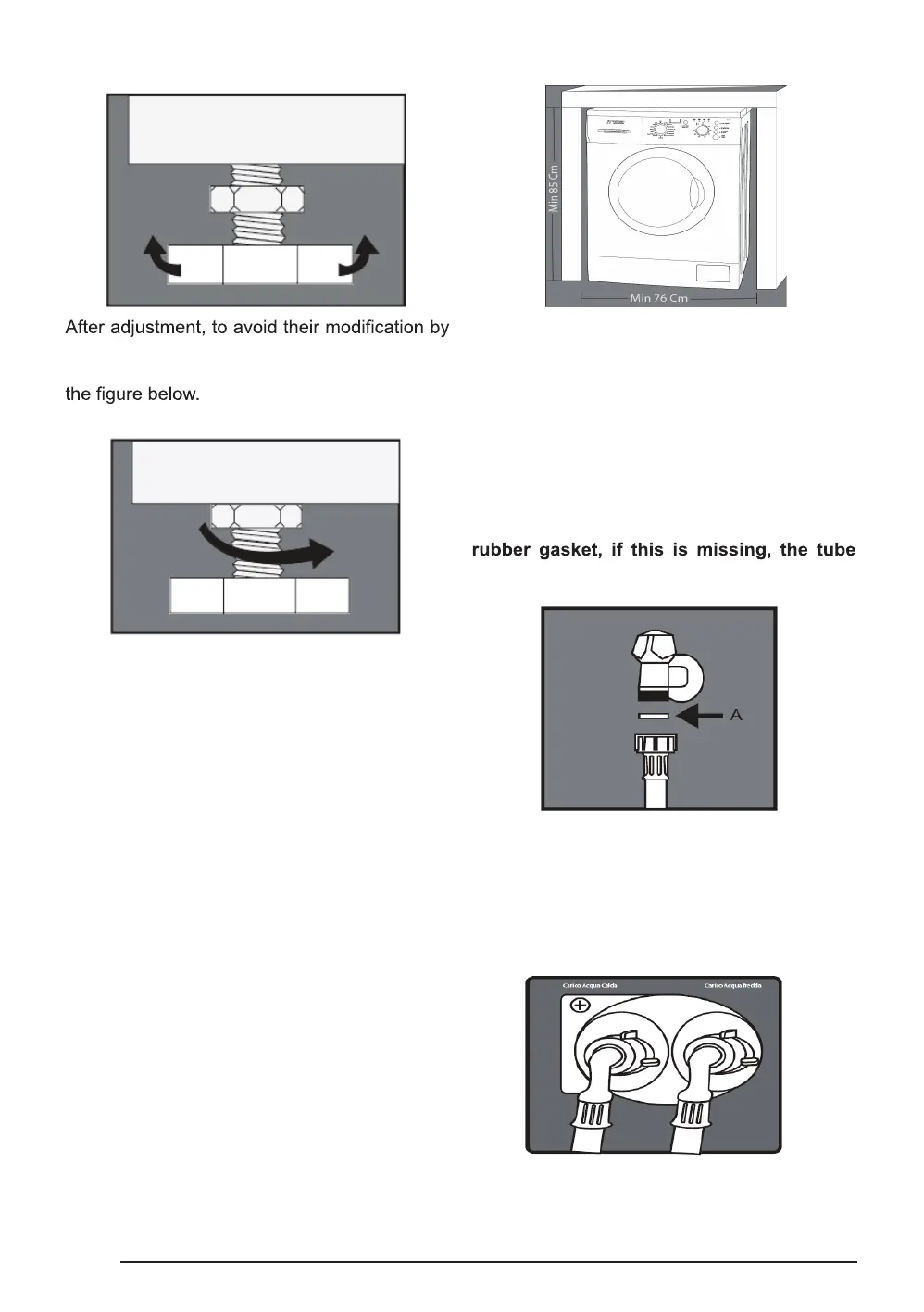

5
vibrations, they should tighten by the ring nut
and/or nut on the foot until it locks as shown in
It is good to avoid, at any case, placing under
or around to the machine cardboard, wood
or similar materials, so as not to obstruct the
passage of air.
INSTALLATION UNDER A WORK PLAIN
The positioning of the machine under a
work plan, can only happen if the housing
compartment has the following dimensions of
width of 76cm and of height of 85cm. It should
a sdeen enihcam eht taht deredisnoc eb osla
approximately 5cm behind from the wall. An
example of a typical installation is shown in the
illustration below. The superior cover (TOP) of
the machine must not be removed for reasons
of electrical and mechanical safety.
Figure 4
WATER SUPPLY CONNECTION
The water inlet hose must be connected to a
tap of cold water with a 3/4” threaded mouth.
Use only the supplied water inlet hose, avoiding
the use of old hoses, or hoses used previously.
N.B. the hose is already complete with
must not be used.
If the water supply system is new or has been
inactive for too long, it will be necessary to
allow the water run until the water appears
clear before connecting the hose.
Figure 5
