Now that the front wheel is on, 2.
squeeze the brake arms together near
the rim, and replace the cable back
into the cradle you removed it from
earlier.
Test that the brakes move inward 3.
when you squeeze the left brake lever.

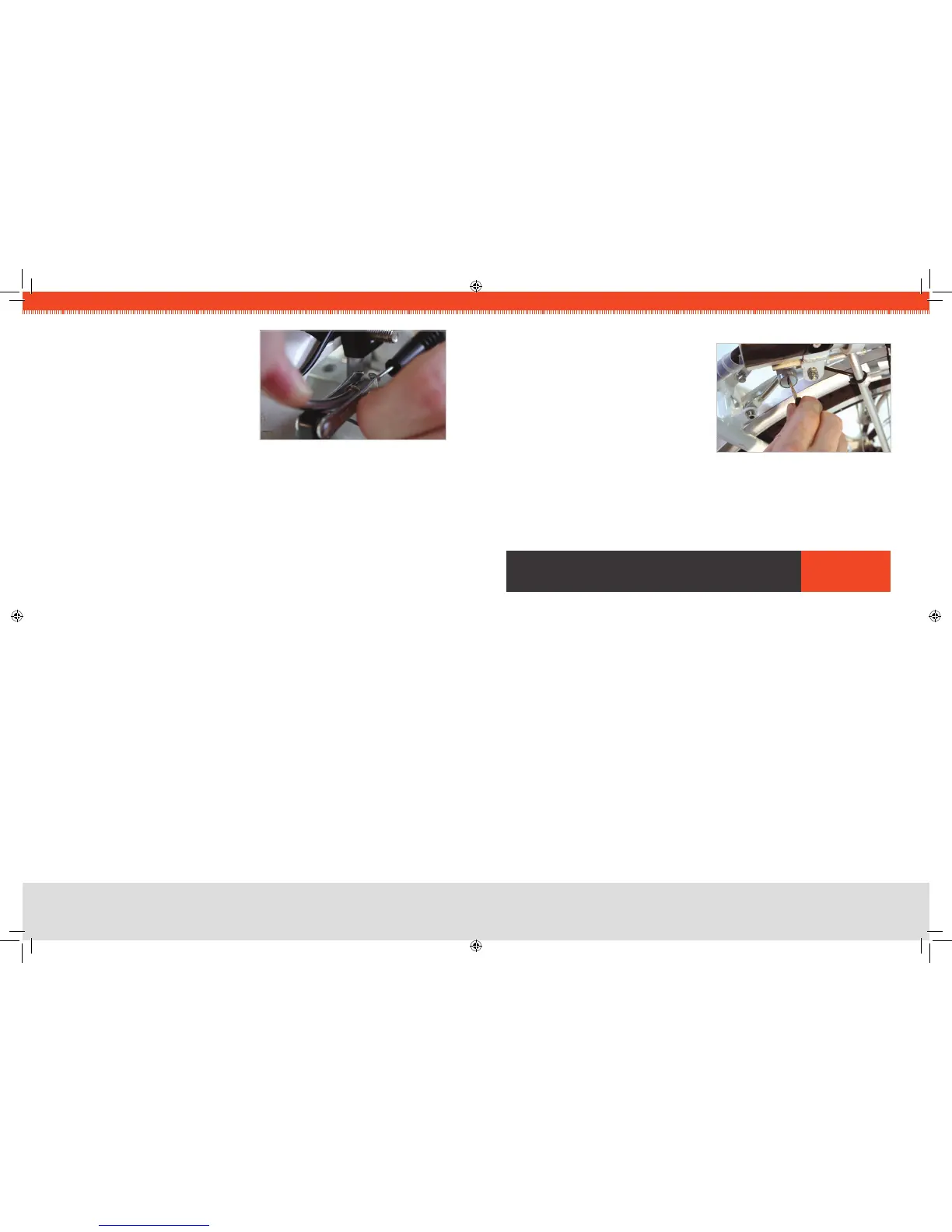

FIG 8. INSTALL BRAKE CABLE
STEP 5
:
INSTALL PEDALS
Keep in mind that the left and right pedals are threaded differently, and it is crucial that they
are installed on the correct side of the bicycle. For this reason, they are marked “L” and “R”
with stickers at the factory.
Locate the right-side pedal (marked with an “R”).1.
Thread the “R” pedal clockwise onto the drive-side crank (side of the bike with gears).2.
Tighten the “R” pedal clockwise with a 15 mm wrench or the wrench provided.3.
Locate the left-side pedal (marked with an “L”).4.
Thread the “L” pedal 5. CouNter-CloCKWiSe* onto the non-drive-side crank (side of
the bike without gears).
Tighten the “L” pedal 6. CouNter-CloCKWiSe with a 15 mm wrench or the wrench
provided.
*NOTE
:
The left and right pedals are not interchangeable.
The left (“L”) pedal and crank are reVerSe-tHreaDeD so that the pedal will not come
loose while riding. To tiGHteN the left pedal, turn CouNter-CloCKWiSe.
To looSeN it, turn CloCKWiSe.
STEP 6
:
INSTALL SEAT
Simply slide the seat into the seat-tube on the bike, and tighten the clamp to secure it.1.
If necessary, open the lever, tighten the nut a few turns, and re-clamp the lever to get 2.
it properly tight. Note that there is a “minimum insertion line” marked on the post that
must be adhered to for safety’s sake.
STEP 7
:
INSTALL & CONNECT BATTERY
Once the battery has been fully 1.
charged (see section “Battery Care and
Maintenance” on Page 8), simply slide it
into the rack from the back.
Using your key, lock the battery — this 2.
will help stabilize it when riding and also
provide some anti-theft security. The
lock is located on the left side of the
battery case.
FIG 9. KEY LOCK
FIT aDJusTMenTs OrIOn
Many parts of your new EVELO Electric Bicycle can be
customized for a personalized t.
Seat Adjustment
The seat is easily adjusted up or down by ipping the quick-release lever that clamps
the post into the bike. Note that there is a “minimum insertion line” stamped on the seat
post that must be adhered to for safety’s sake. (If you need your seat to be higher than
permitted with the stock seat post, please contact us.)
The seat can also be moved forward and backward by loosening the single bolt on the
underside of the seat. Since it slides on its rails, there is no need to remove the bolt — just
loosen it, adjust, and rmly re-tighten. Loosening this bolt also lets you change the angle
of the seat up or down a bit. Again, be sure to re-tighten it rmly if you loosen it to change
the seat position in any way.
