10
Folding/Unfolding Stage 2
2. To unfold the ExerSaucer
®
, release the four tray
locks F by pulling them outward from the base E,
as shown.
Hold the base down with your foot, and pull the tray
upward. The tray will rotate as you pull and the legs will
lock in the upright position. The leg assemblies B will
lock onto the pedestals G.
Twist the tray to make sure all legs are locked properly.
IMPORTANT: Make sure all four leg assemblies B are
firmly locked onto the pedestals G before use.
G
B
G
F
E
C
B

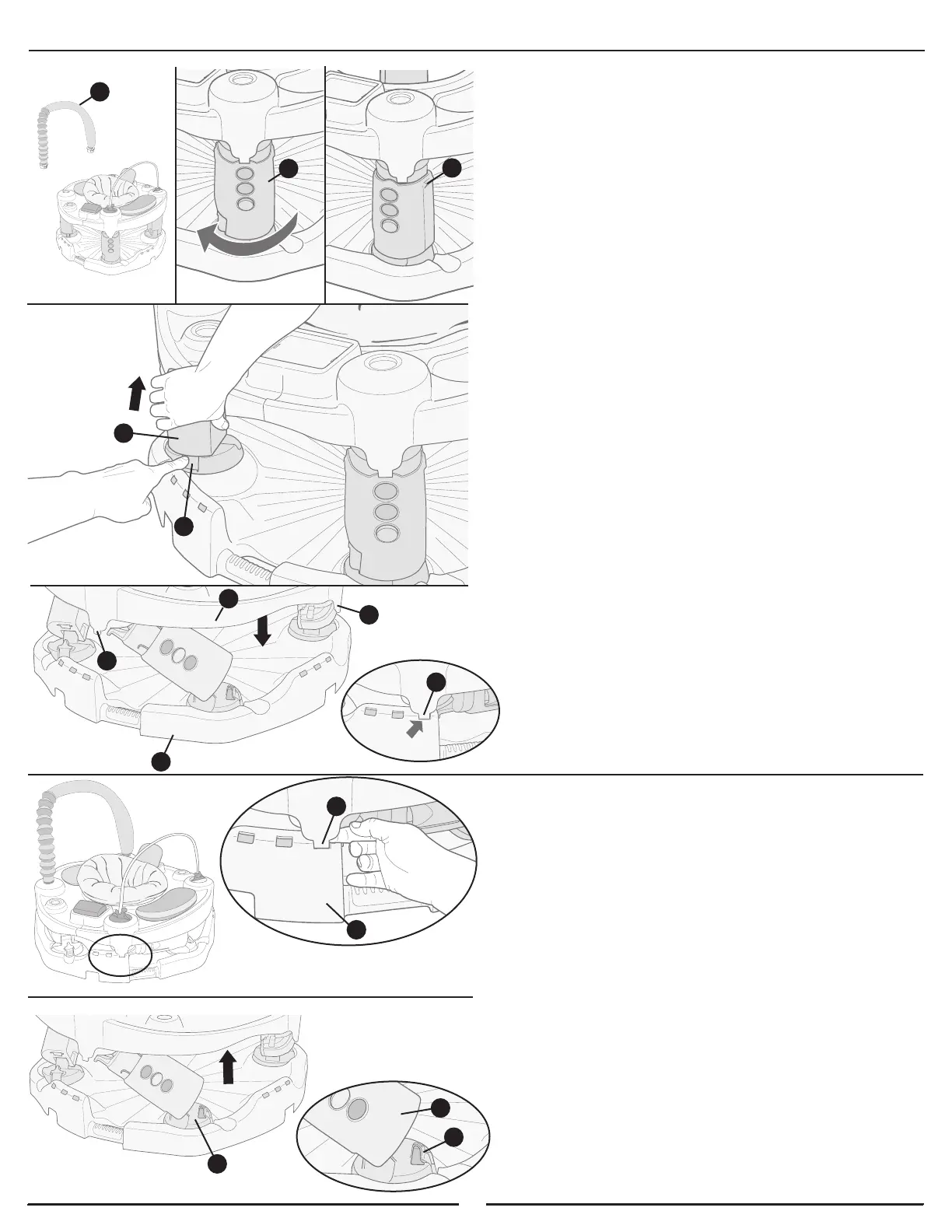

1. To fold ExerSaucer
®
, ALWAYS remove baby and toy
bar(s) A from ExerSaucer
®
before folding.
With ExerSaucer
®
flat on the floor, twist each leg
assembly B fully clockwise (the direction of the arrow)
until it stops in the position shown.
Fully depress one of the pedestal locking tabs C then
push on the leg assembly B; leg will partially fold. Repeat
this procedure for all four legs.
After pressing the fourth pedestal locking tab C, the
ExerSaucer
®
will fold with the tray D rotating toward the
base E. Make sure all four tray locks F are locked onto
the base before trying to carry ExerSaucer
®
.
Note: Make sure the legs are at the same height
adjustment or the ExerSaucer
®
will bind and not fold
properly (refer to page 8).
A
B
B
E
D
F
F
F
