4

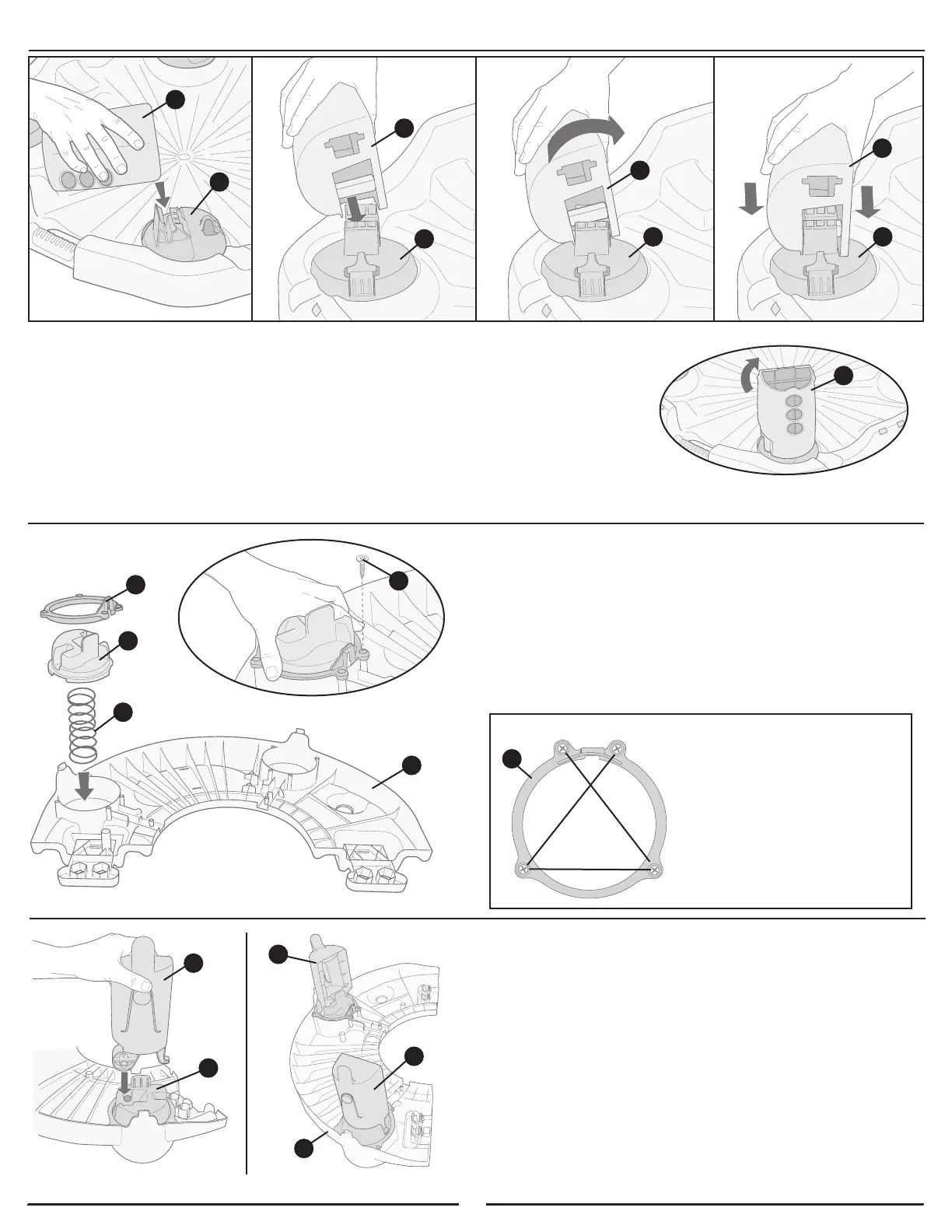

1. Locate two tray halves A. Install spring B, upper leg
crown C, and pylon ring D onto one of the tray halves.
Secure with four screws E.
Note: Hold the upper leg crown C and pylon ring D
securely while installing screws. Tension from the spring will
try to push the upper leg crown and pylon ring upward.
Repeat for other upper leg crown on this tray and for both
upper leg crowns on the other tray half.
A
C
B
E
Stage 2 Tray Assembly
M
D
Install and tighten screws on the
pylon ring D in the following
sequence.
TIP
1
2
3
4
D
Stage 2 Base Assembly
2. Insert upper leg F into the upper leg crown C until it
snaps into place. Pull up on upper leg F to ensure it is
securely installed in upper leg crown C.
Repeat until all four upper leg assemblies are
complete.
Note: Make sure the adjustment holes on the front of
all four upper legs F are facing the outer edge of the
tray A, as shown.
A
F
F
F
C
C
M
M
C
M
C
M
C
7. Insert lower leg assembly M at an angle (as shown) onto top of pedestal C, then
rock gently while applying a steady downward pressure until it snaps into place.
Swing lower leg assembly M up until it locks in the upright position. Repeat for all
four leg assemblies.
You are now finished assembling the base. Set it aside so you can assemble the tray.
