Evenflo REVOLVE360 - Installation and Operation Procedures; Seat Shell Installation and Removal

53

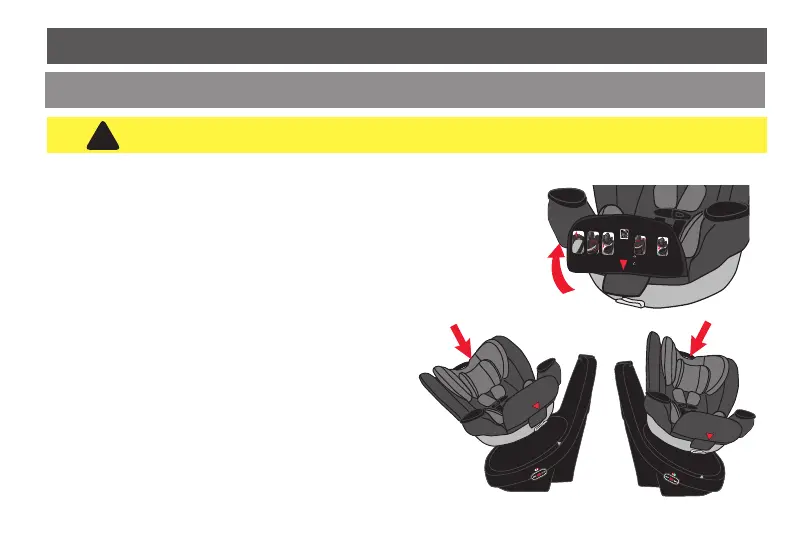

Installing and Removing the Seat Shell from the Base
Installing the Seat Shell to the Base
To install the Seat Shell to the Base:
1. Lift the legrest ap and locate the
arrow on the underside of the seat
pad.
2. Align the arrow on the seatpad
with one of the two arrows on the
Base.
3. Install the Seat Shell to the Base.
4. Rotate the seat in either direction
to ensure it is properly installed.
Remove Seat From Base
Pull handle to
rotate seat
Align arrows Lift to remove
Tire de la
palanca para
girar el asiento
Alinee las
flechas
Levante para
quitar
Quitar el asiento de la base
25809098 10/20
Install Seat Onto Base
Insert seat
onto base
Align arrows
Alinee las
flechas
Inserte el
asiento en la
base
Instale el asiento en la base
Parentlink: 1-800-233-2229
Scan for
instructional videos.
Escanear para videos
instruccionales.
evenflo.com/RevolveHowTo
Move strap
Mueve la
correa
WARNING!
DEATH or SERIOUS INJURY can occur
Strap can interfere with rotation lock.
Do not allow strap to get caught between seat and base.
¡ADVERTENCIA!
Se pueden ocasionar LESIONES
GRAVES o la MUERTE.
La correa puede interferir con el bloqueo de rotación.
No permita que la correa quede atrapada entre el asiento y la base.
Harness Adjustment Strap can interfere with rotation lock. DO NOT allow strap to
get caught between seat and base during installation.
!
WARNING! DEATH or SERIOUS INJURY can occur.
