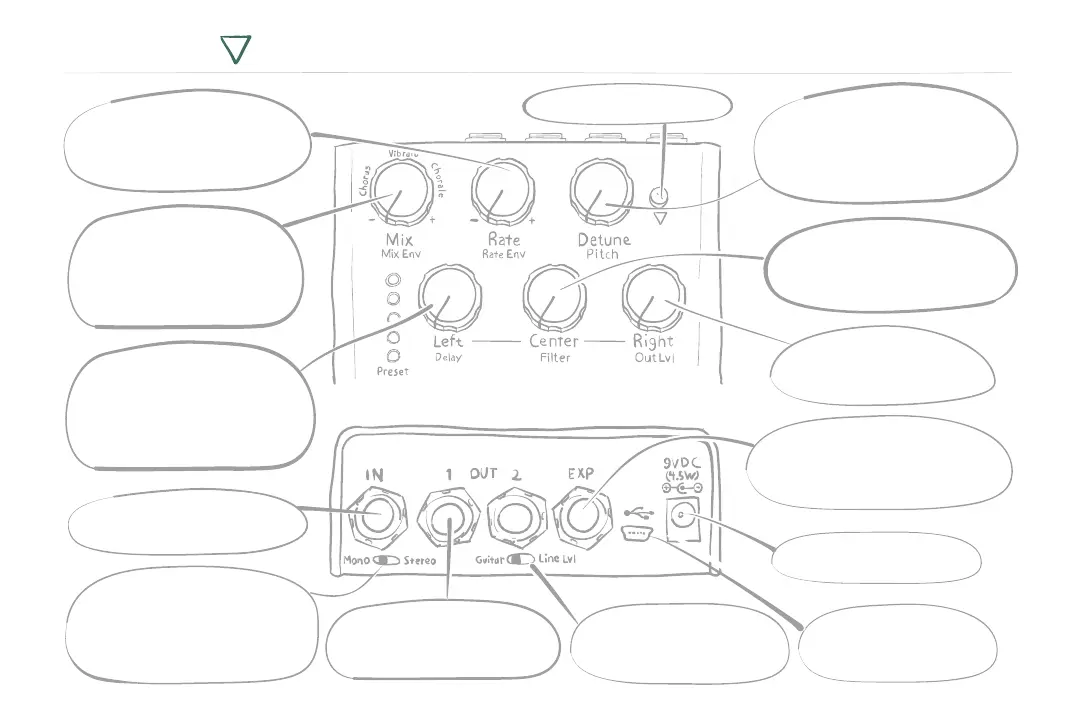

Knob Functions – Secondary Parameters
Controls amplitude enve-
lope amount sent to the
rate of the LFOs
Controls amplitude
envelope amount sent
to both Chorus/Chorale
mix and Detune Mix
Delay
Chorus: up to 200ms
delay for all voices
Chorale: Delay/Depth for
each voice up to 200ms
Rate Env
Filter
CCW: Low Cut
Center: Flat
CW: High Cut
Mix Env
Power
9VDC center-negative
Mono/Stereo Switch
Left = Mono (TS plug)
Right = Stereo (TRS plug)
I
n Stereo, Tip is OUT1, Ring is OUT2
I/O Level Switch
Left = Guitar
Right = Line/Effects Loop
IN
TS (mono) or TRS (stereo)
Pitch
EXP
Connect Expression Pedal,
Auxiliary Switches or TRS MIDI
(See System Setup)
Mini USB
Software updates
& MIDI over USB
Out Lvl
Center for unity gain
Boost/Cut output level
Press button to toggle
Secondary/Primary parameters
OUT1 & OUT2
In Mono, both outputs have
the same dry signal
Stereo detune (in cents)
Fully CCW: -40L/+40R
Center: 0L/0R
Fully CW: +40L/-40R
