INSTALLATION
The adjacent furniture must be able to withstand a minimum temperature rise of 50°C above the
ambient temperature of the room it is located in, during periods of use – please check your furniture is
acceptable for use with a cooktop.

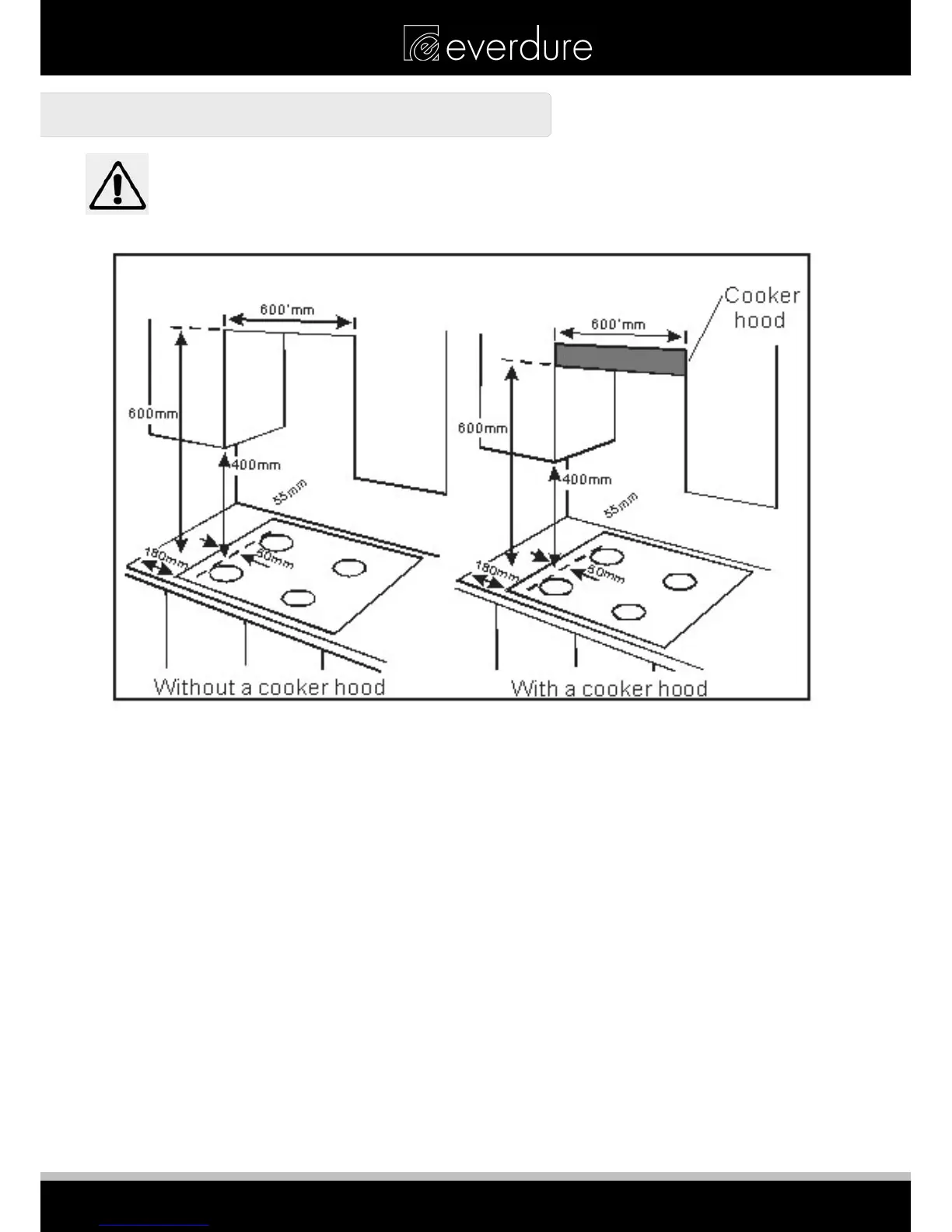

Please see the above drawing for minimum clearances. Also see the following minimum distances stated below:
600 mm between the hob surface and the underside of any horizontal surface above it.
50 mm clearance around the appliance and between the hob surface and any combustible materials.
UNPACKING THE APPLIANCE
When unpacking the appliance please check that the following items are contained within the packaging:
1 Ceramic cooktop
1 Installation and instruction manual
4 Fixing screws
4 Clamps
1 Sealing strip
