7.1.1 Table-top equipment
The test set-up for table-top equipment is shown in Fig.7.1. The EUT and cables shall
be isolated from the coupling plate by a 0.5mm thick insulating support. If the EUT is
too large to be located, an additional, identical HCP shall be overlapping used to make
sure all sides of the HCP (horizontal coupling plate) is minimum over 0.1m to the
EUT , the overlapped parts should over 0.3m(without needs to be welded). Any
mounting feet associated with the EUT shall be remained in place.

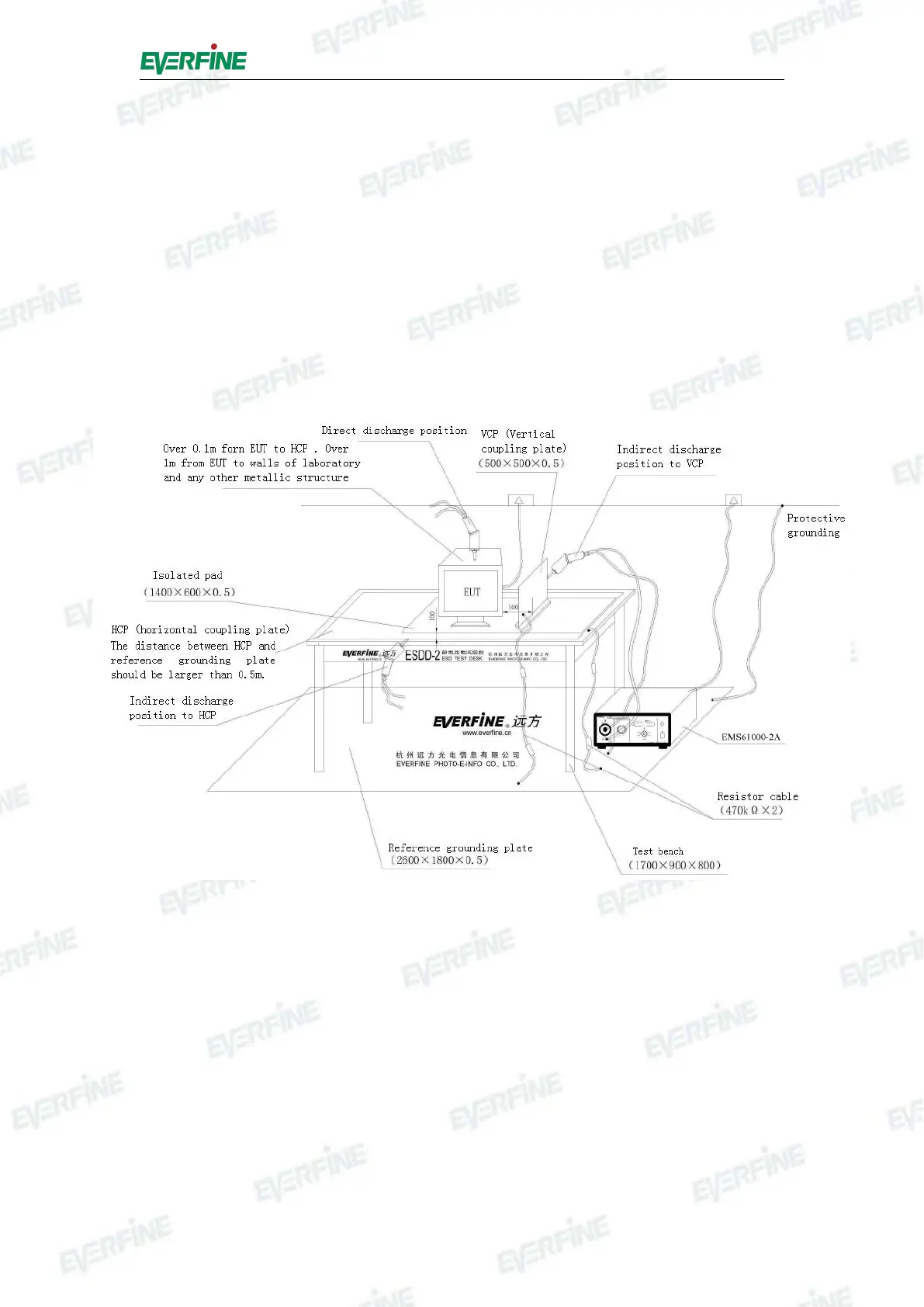

Fig.7.1 Test set-up for table-top equipment
