7.1.2 Test set-up for floor-standing equipment
The test set-up for floor-standing equipment is shown in Fig.7.2. Any mounting feet
associated with the EUT shall be remained in place.

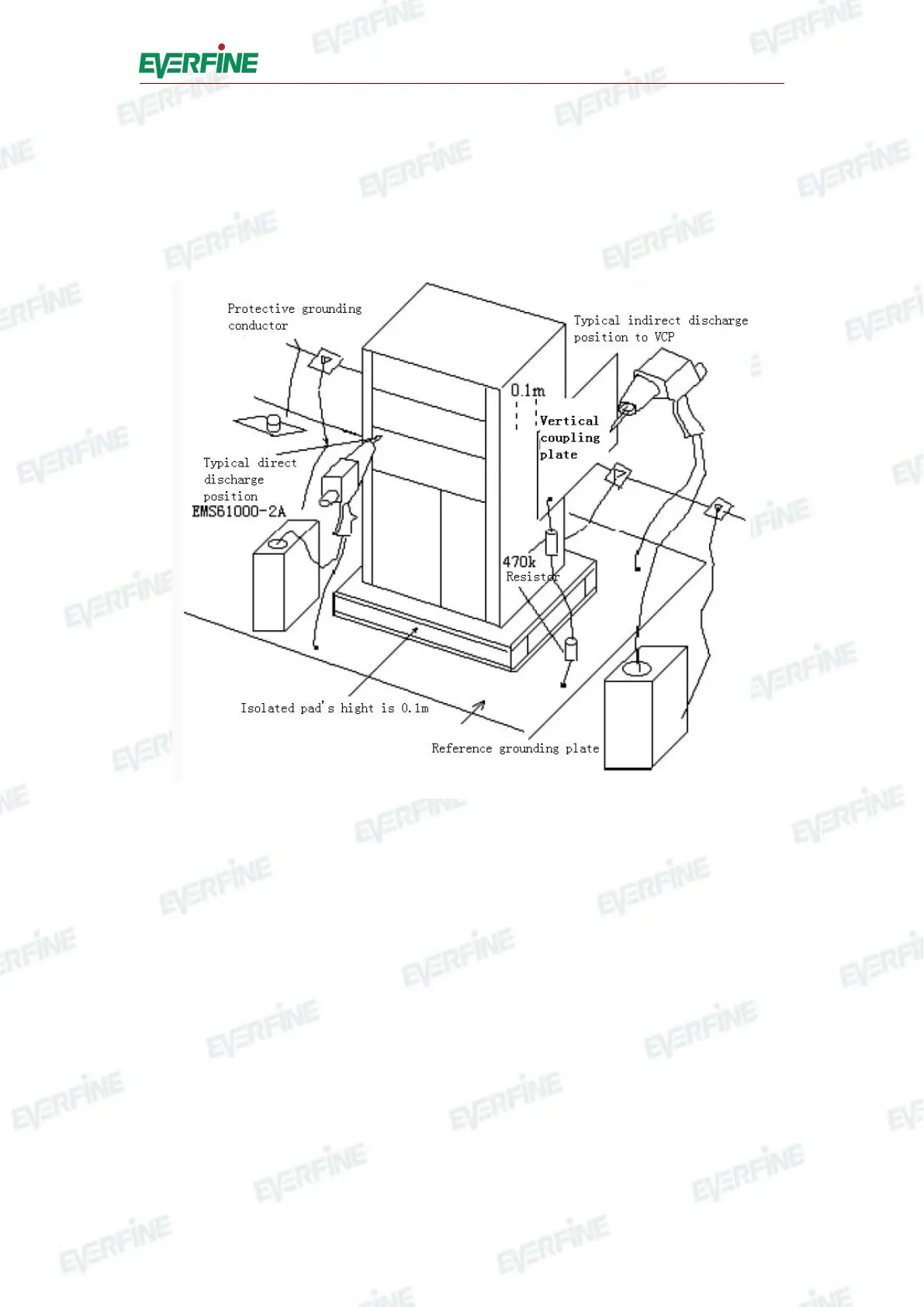

Fig7.2 Test set-up for floor-standing equipment
7.1.3 Test set-up for post-installation tests
These tests are optional, and not mandatory for certification tests, they may be applied
only when approved by both manufacturer and customer. It has to be considered that
other co-located equipment may be unacceptably affected.The equipment or system
shall be tested in its final installed conditions.
In order to facilitate a connection for the discharge loop cable, a ground reference
plane shall be placed on the floor of the installation, close to the EUT at about 0.1 m
distance. This plane should be copper or aluminium sheet with thickness no less than
