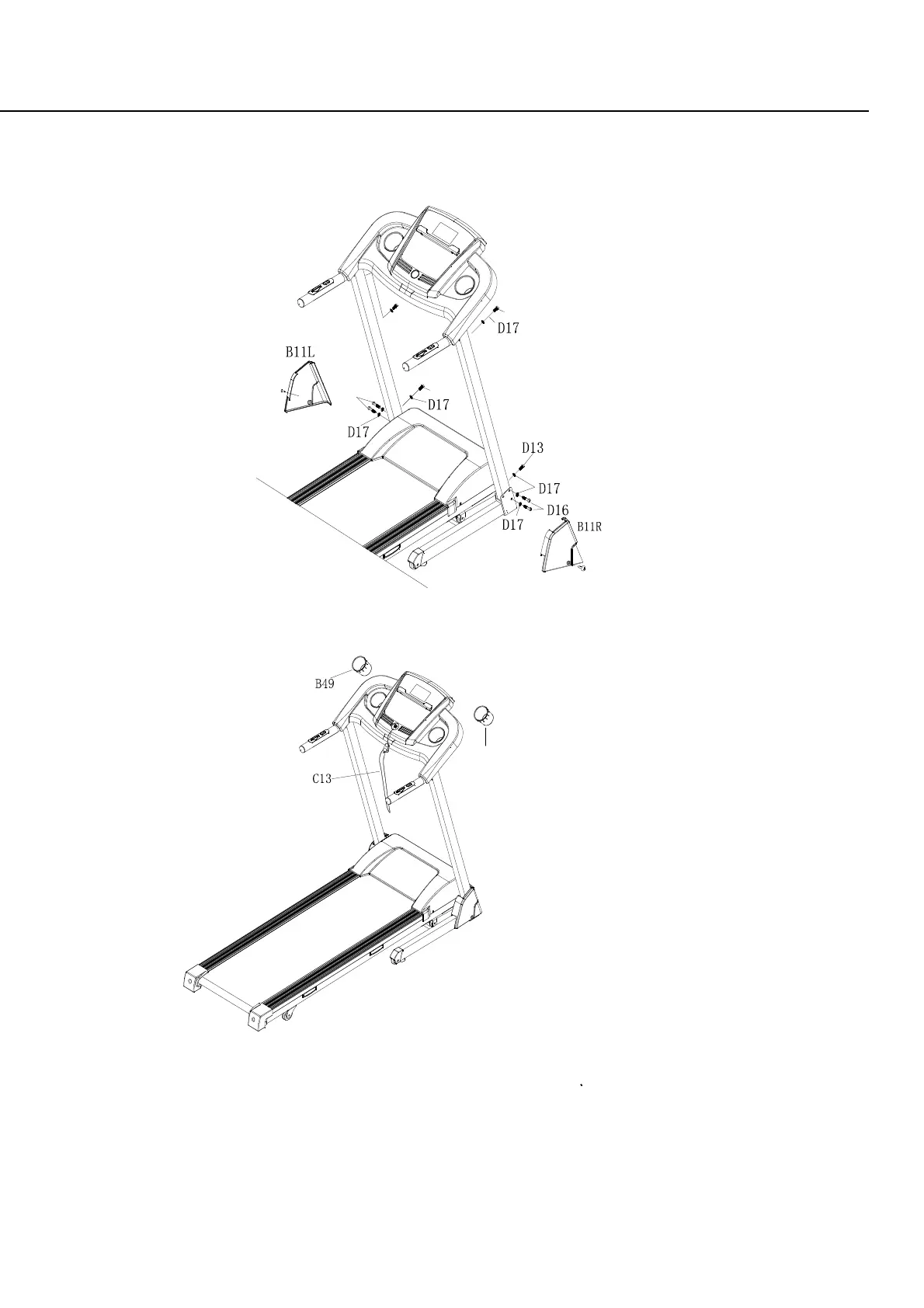

STEP 3: Secure bottom frame with bolt M8*45(D16), M8*15 (D13), and the inner star washer
(D17). Then secure console frame with M8*15 (D13) and inner star washer (D17).
Tighten left/right side covers (B11L/R) with cross self-tapping bolt with washer ST4.2*20 (D49).
Step 4: Place on safety key (C13) and water bottle holder (B49).
Step 5: To check if the running belt runs correctly, placing treadmill in folding position and
tightening all the bolts. Then set speed under 3km/h and see if running belt runs without
problem.
D13
D16
D13
D48
D48
B49
To Next Page
