- 5 -

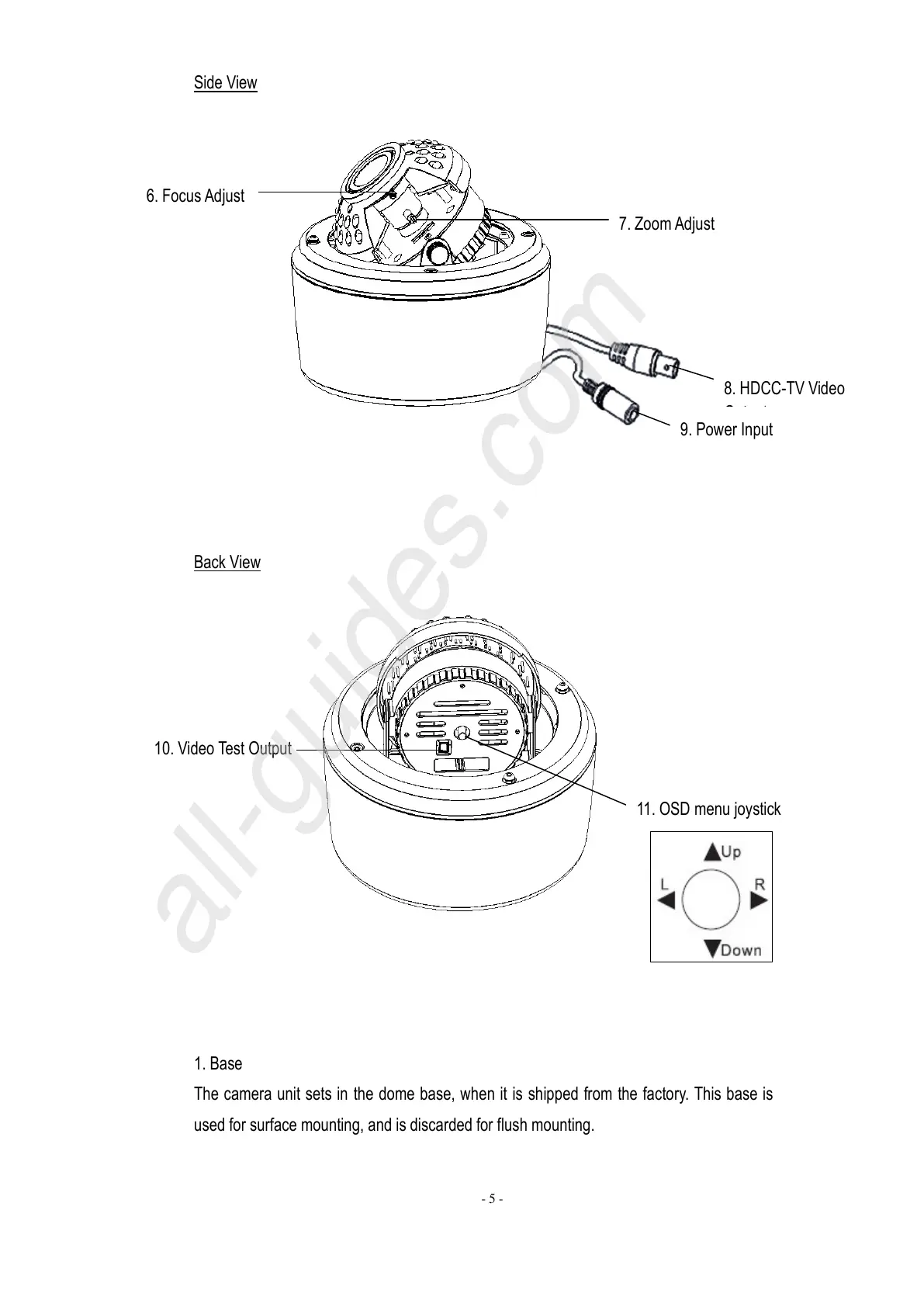

Side View
Back View
1. Base
The camera unit sets in the dome base, when it is shipped from the factory. This base is
used for surface mounting, and is discarded for flush mounting.
6. Focus Adjust
8. HDCC-TV Video
Output
9. Power Input
7. Zoom Adjust
10. Video Test Output
11. OSD menu joystick
