- 11 -

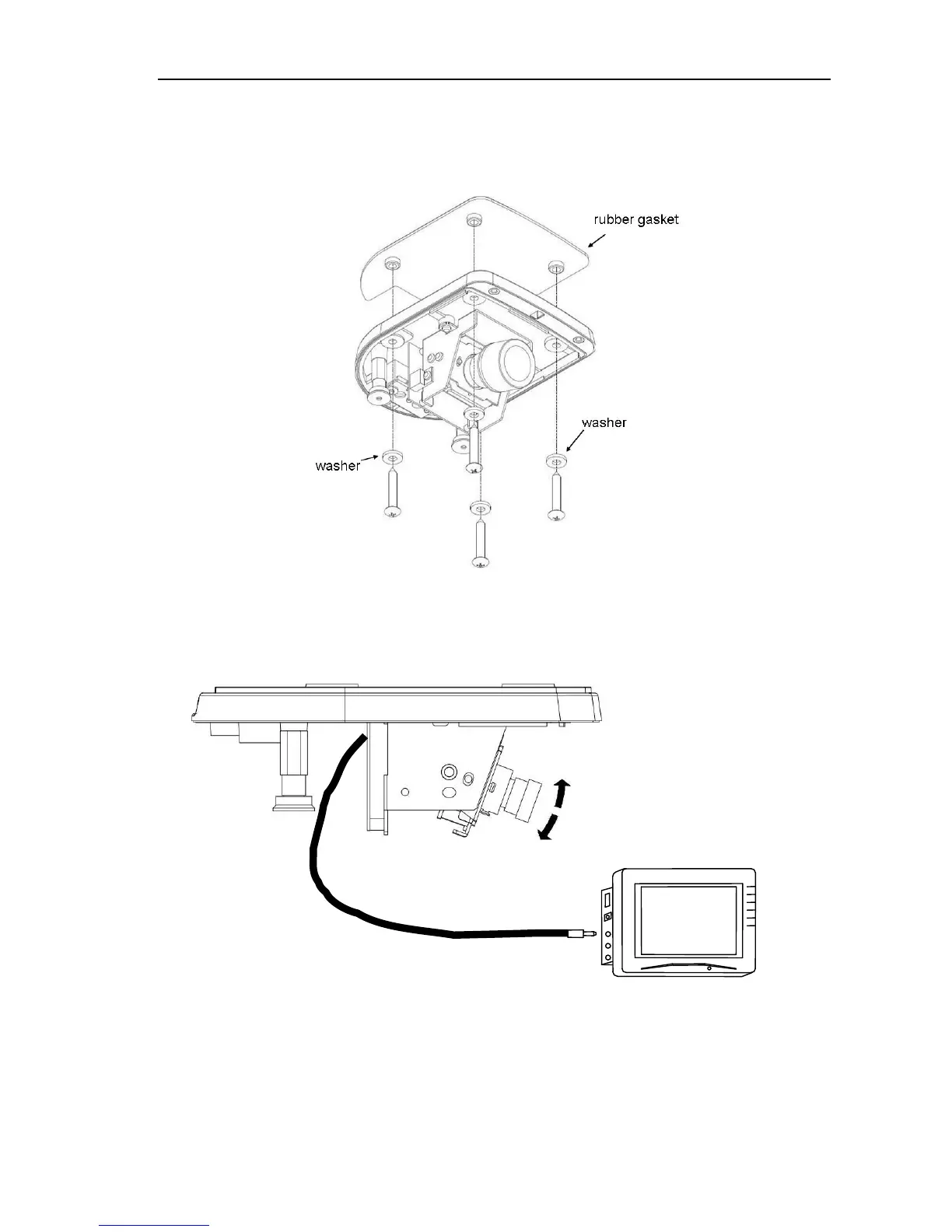

C. Apply sealant generously around all holes. Place the camera and rubber
gasket to align the mounting holes with the pilot holes or anchors. Insert the
mounting screws, using the rubber washers and tighten fully using the appropriate
screwdriver or drive tool.
D. Adjust the angle and while viewing the image (using a test monitor such
as the EN200.)
F. Lock the two screws closest to the front of the camera bracket and tighten the
two screws at the side of the camera bracket.
