EverFocus EMW330 - Configuration; Opening Camera Housing

- 4 -
IR LEDs Direction
(end/side)
(end)
Certifications
CE/FCC
5. CONFIGURATION
A. To open the housing/remove the cover

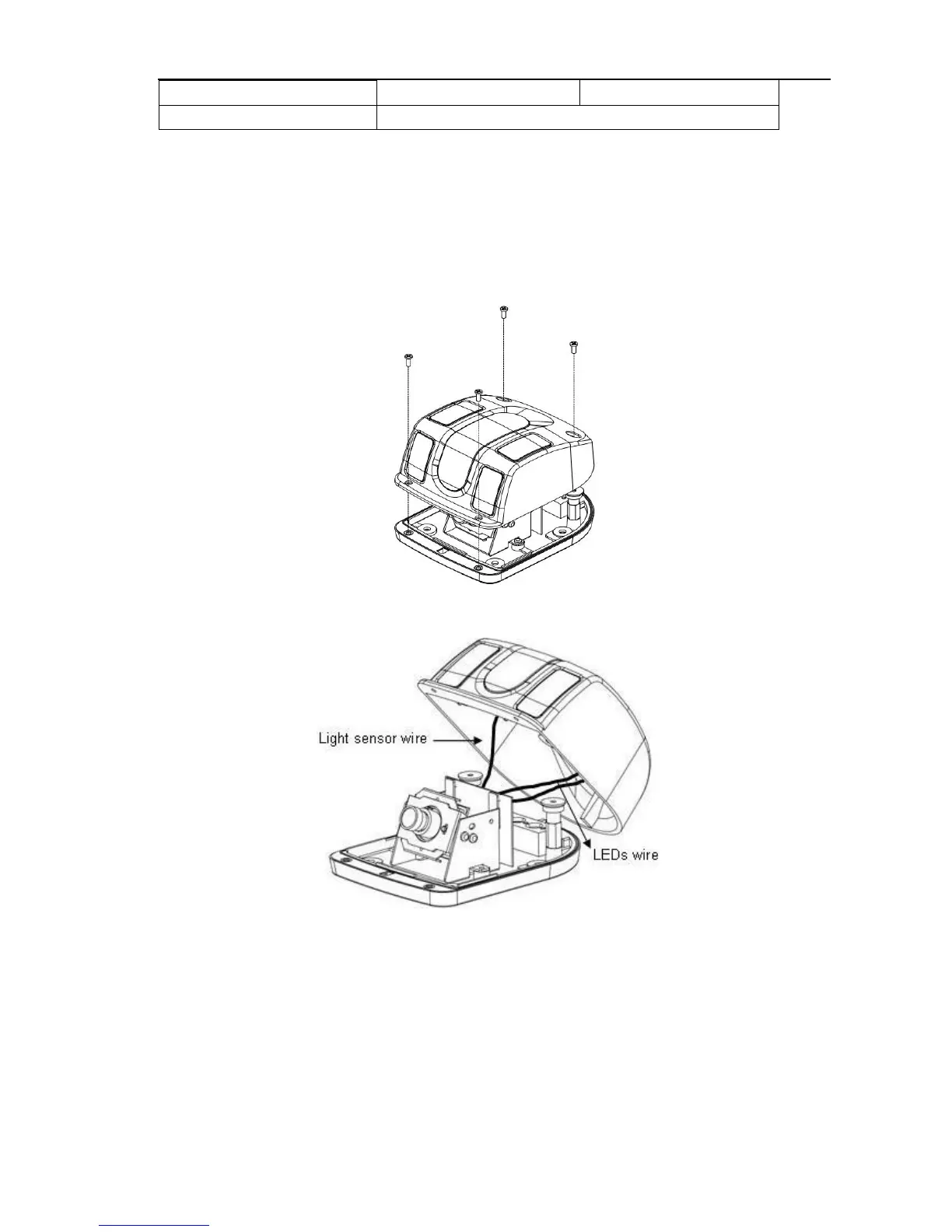

1. Using the tool provided remove 4 screws to separate camera’s base from its cover.
2. Detach the light sensor wire and LED wires from connectors on the camera PCB
board.
3. Detach LED illuminator wire from wire retaining clip on camera body.
