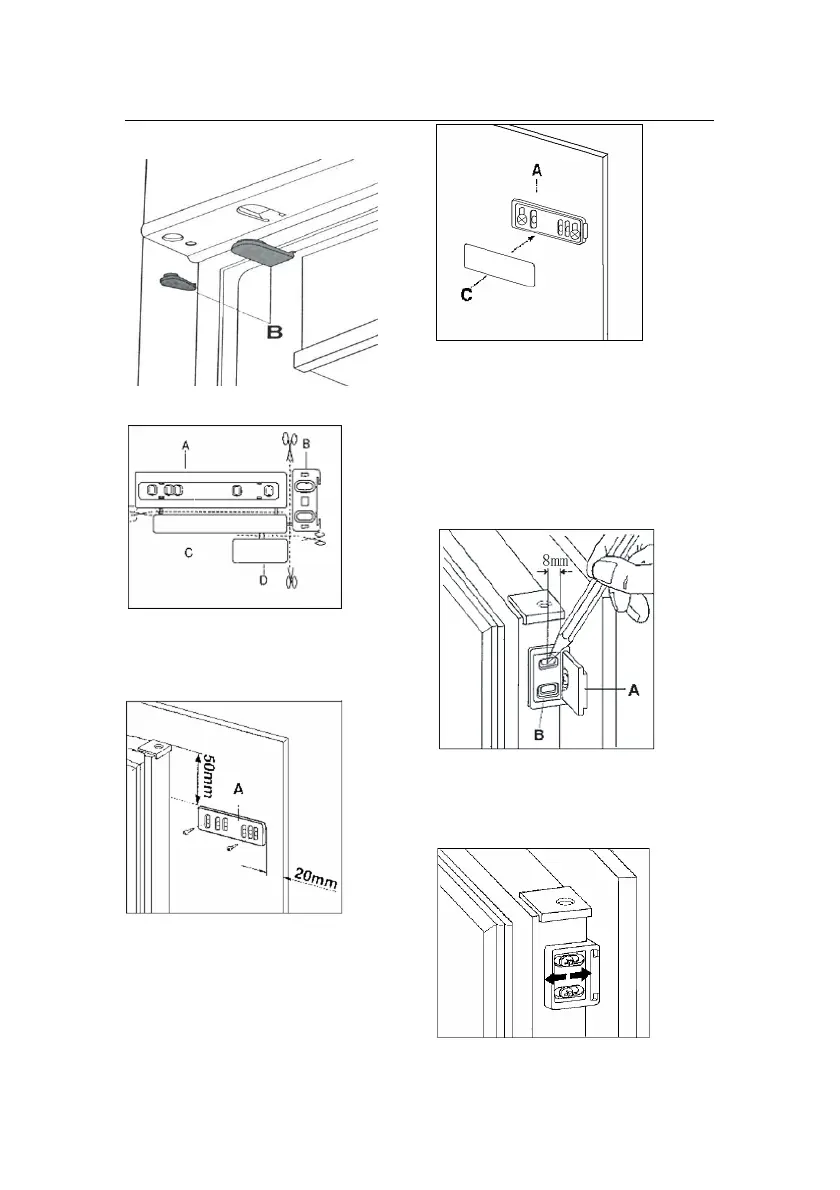

4.
Apply blanking covers (B)as indicated.
5.
Separate parts A,B,C,D as shown in
the figure.
6.
Place guide (A) on the side part of the
furniture door, up and down as shown in
the figure and mark the position of
external holes. After having drilled holes,
fix the guide with the screws supplied.
7.
Fix cover ( C ) on guide (A) until it clips
into place.
8.
Open the appliance door and the
furniture door at 90°.Insert the small
square (B) into guide (A) .Push together
the appliance door and the furniture door
and mark the holes as indicated in the
figure remove the squares and drill holes
with ij2 mm at 8 mm from the outer edge
of the door . Place the small square on
the guide again and fix it with the screws
supplied.
9.
Should the lining up of the furniture
door be necessary , use the clearance of
slots .At the end of operations, it is
necessary to check the door of the
furniture closes properly.
