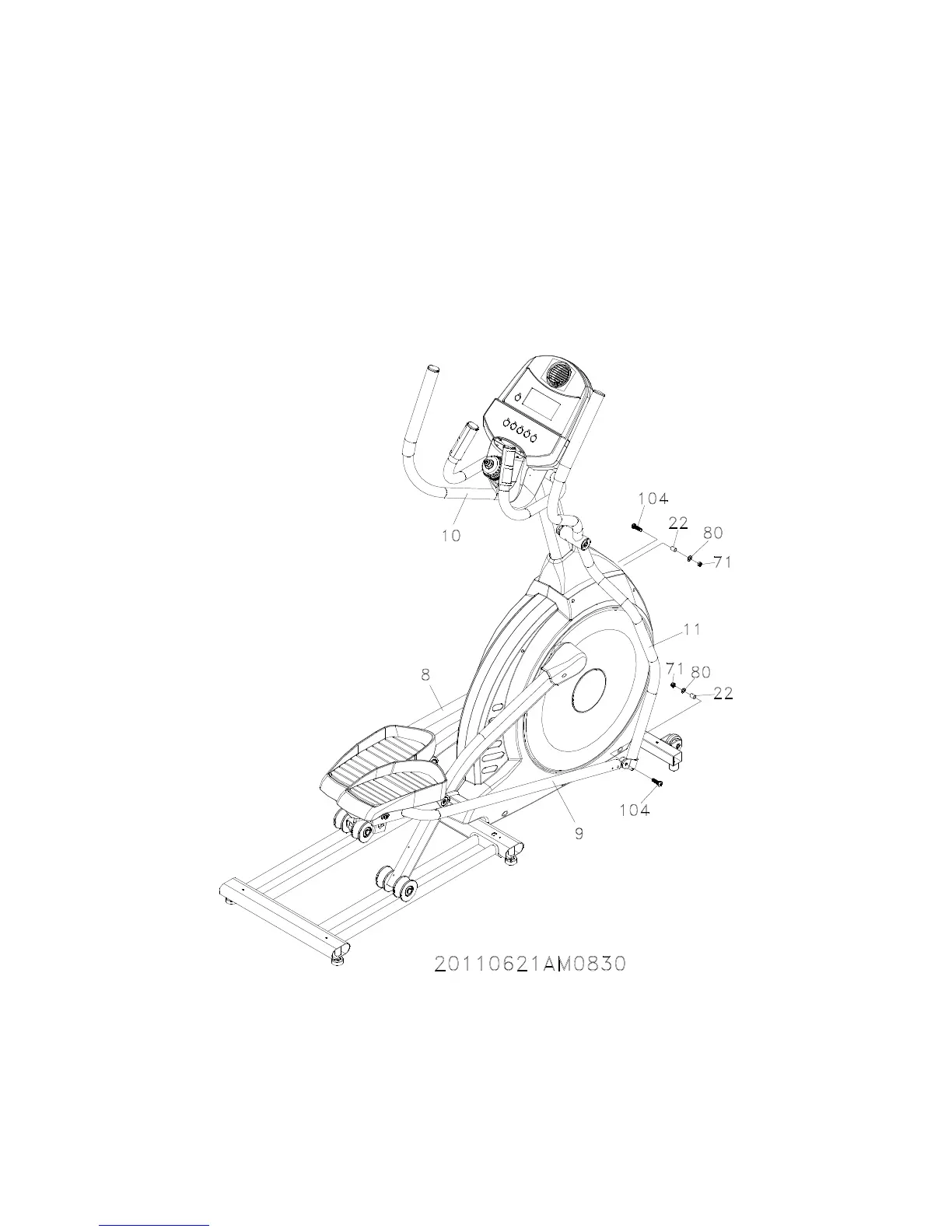

STEP 3: CONNECTING ARM ASSEMBLY
1. Align the hole in the rod end of the left Connecting arm (8) with the hole in the bracket of the left
Handle Bar (10). The rod end should be on the inner side of the Handle Bar bracket. Make sure
the ty-wrap is removed from the rod end and the sleeve spacer (22) does not fall out during
assembly. Take one 5/16"×1-1/4" Hex Head Bolt (104) and install it through the Handle Bar
bracket and the rod end. Install one 5/16"×20×1.5T Flat Washer (80) and one 5/16"×7mm Nyloc
Nut (71) on the 5/16"×1-1/4" Hex Head Bolt (104) and tighten as tight as possible using the
two12m/m Wrenches provided. Repeat the procedure for the right side Pedal /Connecting Arm.
